Novel Application of the Lagis LapBase Cap in Transvaginal NOTES Hysterectomy: Surgical Outcomes and Cost-Effectiveness in 107 Cases

1. Introduction

Numerous minimally invasive procedures have been developed for gynecologic surgery, including single-port laparoscopic approach surgery and vaginal Natural Orifice Transluminal Endoscopic Surgery (vNOTES). A lot of effort has been made in improving outcomes for patients. NOTES was first described by Kalloo et al in 2004 in a porcine model as an extended application of single-port laparoscopic surgery [1]. Since then, many physicians have performed vNOTES surgery and subsequent studies have demonstrated the safety and efficacy of this procedure. vNOTES is a safe and feasible procedure even in large uteri. [2]

In 2014, a 137-patient large case series was published and reported a low complication rate of 1 postoperative voiding disorder and 4 postoperative fevers [3]. Conversions to traditional laparoscopic hysterectomy in 7 patients were mostly due to failure of the transvaginal colpotomy, but the overall success rate was 94.8%. Compared to traditional laparoscopic hysterectomy, a 2015 study by Wang et al reported that vNOTES was associated with significantly shorter surgical time, less estimated blood loss, and a shorter length of stay [4]. vNOTES has been shown non-inferior to conventional laparoscopy in a randomized trial and may facilitate higher rates of day-care discharge. [5] and systematic reviews further support its safety and feasibility in benign gynecologic indications. [6]

There are several methods to apply vNOTES port and instruments, including the wound-retractor-and-glove system and the Single Port Access Device, available from different companies [7,8,9]. In our department, we used the Lagis wound retractor with the Lagis LapBase Cap for Wound Retractor 60mm. In our experience, this device has advantages, like of ease of use and a good seal. During 2017 to 2022, one hundred and seven patients underwent vNOTES hysterectomy in our institution. In this article, we share the experience of 107 operations, including operation methods and outcomes.

2. Materials and Methods

Patients

We enrolled women who underwent vNOTES hysterectomy, regardless of whether adnexa surgery was done or not, for the indication of benign gynecologic disease from January 2017 until April 2022 at Buddhist Tzu Chi Medical Foundation Dalin Tzu Chi Hospital. We used the Taiwan national health insurance reimbursement claim code (80416B) to search the electronic medical records system and selected the ones where NOTES was recorded.

Surgical Technique

At our institution, we performed vNOTES hysterectomy in a non-prolapsed uterus for benign gynecologic disease, including myoma, adenomyosis, and cervical dysplasia. We excluded patients with known or suspected malignancy due to the uterus possibly being resected during retrieval. Preoperative dynamic transvaginal ultrasound assessed the “sliding sign” to screen for pouch of Douglas obliteration, a validated marker of posterior cul-de-sac adhesions and deep endometriosis[10,11]. A transvaginal sonography was done preoperatively to exclude patients with Cul-De-Sac adhesion. If sliding signs in transvaginal ultrasound (TVS) was negative, an adhesion was impressed and it was recognized as a contraindication for vNOTES. An history of cesarean section or pelvic surgery was not a contraindication in our department. All procedures were performed by one surgeon, C.S. Hsu.

Patients were placed in the lithotomy position once they were under general anesthesia. Prophylactic antibiotics with Cephradine 2g was administered intravenously preoperatively. A Foley catheter was placed, and we fixed the vulvas outward with silk suture to make it easier for the surgeon to perform the operation. 20U of Vasopressin was diluted in 60mL normal saline and was injected circumferentially into the junction of cervix and vaginal mucosa for vasoconstriction. We then made an incision around the cervix and performed anterior and posterior colpotomy. The cervicovesical junction was identified and the anterior Cul-De-Sac was entered, and then the posterior was entered using the same steps. The bilateral uterosacral ligaments and cardinal ligaments were clamped, transected, and sutured and then ligated with 1-0 Vicryl. We then did cervical amputation and sutured the root with 1-0 Vicryl for better vision and a larger space. (Figure 1-A)

Afterwards, the Lagis wound retractor 60mm (Lagis Enterprise Co., Ltd., Taichung, Taiwan) was placed through the anterior colpotomy and the posterior colpotomy. The Lagis LapBase Cap for Wound Retractor 60mm was applied to seal the wound retractor. A 10mm trocar was placed at the inferior area (6 o’clock) of the cap to maintain pneumoperitoneum, with an intraperitoneal pressure of 14 mmHg, and then a 30-degree endoscope was inserted. Two 5mm trocars were inserted at the superior area of the cap, and a Ligasure vessel sealing device was applied into the right trocar and forceps into the left trocar. (Figure 1-B) Bilateral board ligaments, ovarian ligaments, and fallopian tubes were coagulated and cut. (Figure 1-C, D) Depending on whether adnexa surgery was planned or not, we then performed salpingectomy or salpingo-oophorectomy. After the uterus was set free, it was removed from vagina. With a large uterus or one with myomas, the surgeon would resect the uterus with a cold knife. After well hemostasis was confirmed, the vaginal cuff was closed with 1-0 Vicryl.

After the operation, prophylactic antibiotics with Cephradine 500mg every 6 hours for one day and a single dose of Gentamycin 240mg were given. The Foley was removed the day after the operation, or if the surgery was performed in the morning it was removed at night on the same day. The patient was typically discharged on post-operative day 1 or day 2.

3. Results

Between January 2017 and April 2022, there were 104 patients who underwent NOTES hysterectomy in our hospital, and additional three patients underwent NOTES at first but then shifted to conventional laparoscopic-assistance vaginal hysterectomy (LAVH). The patients were aged between 28 to 67 years old and were diagnosed with leiomyoma, adenomyosis, or cervical dysplasia. Based on the final pathologic report, three patients were diagnosed with Squamous cell carcinoma in situ of the cervix, one patient with carcinoma in situ of the cervix and one patient with well-differentiated endometrioid carcinoma. The mean weight of the uterus was 302.3 gm (range 61.2 gm to 1189gm).

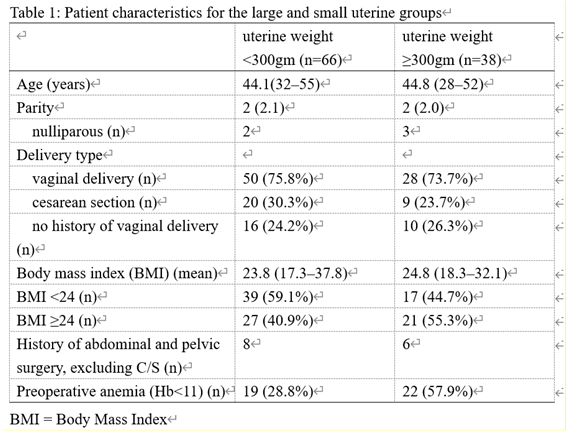

Patients were grouped according to uterine weight and BMI for analysis. Sixty-six patients had a uterine weight of <300g, and thirty-eight had a uterine weight of ≥ 300 g. Patient characteristics are in Table 1. The mean age of the small uterine group was 44.1 years, and the big uterine group was 44.8 years. There were no differences in mean parity and mean BMI between the 2 groups. Two patients in the small uterine group and three patients in the big uterine group were nullipara; sixteen and ten patients had no history of vaginal birth in the small uterine and big uterine group, respectively. BMI ≥24 was defined as overweight, according to the Health Promotion Administration in Taiwan. More patients had a lower BMI in the small uterine group (59.0%), and more had a higher BMI in the big uterine group (55.3%). More patients in the big uterine group had anemia before the operation (28.8% in the small uterine group and 57.9% in the big uterine group). Eight patients in the small uterine groups and six patients in the large uterine group had a history of abdominal or pelvic surgery other than cesarean section, including appendectomy, myomectomy, and adnexa surgery.

The mean operation time was 88 minutes for all patients (81 minutes in the small uterine group and 98 minutes in the big uterine group). The mean length of stay was 3.06 days for all patients (2.95 days in the small uterine group and 3.28 days in the large uterine group). In the big uterine group, there was more estimated blood loss (mean: 71 mL vs 143 mL) and more patients received blood transfusions (7 patients vs 10 patients). (Table 2)

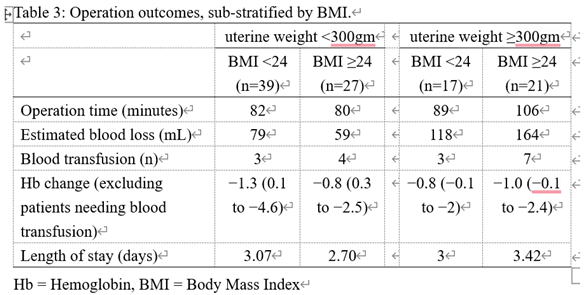

Stratified by BMI, in the small uterine group, there were 39 patients with BMI < 24 and 27 patients with BMI ≥24. There was no difference in operation time, blood loss, and length of stay between patients with a lower and higher BMI. In the big uterine group, there were 17 patients with BMI < 24 and 21 patients with BMI ≥24. The patients that had a bigger uterus and a higher BMI had a longer operation time, more estimated blood loss, and a longer length of stay. (Table 3)

We hypothesized that vNOTES surgery would be easier on women with a history of vaginal delivery (VD), due to easier colpotomy. Thus, we compared outcomes between women with VD, women without VD but with caesarean section ( CS), and nullipara women. The mean operation time was longer in the nullipara women (85, 91, and 110 minutes respectively) and mean blood loss was also higher in the nullipara women (94.7, 100 and 130 mL respectively). (Table 4)

Previous CS might cause adhesion between the bladder and uterus, and lead to longer operation times or more difficulty in performing anterior colpotomy. We found that patients with a history of more than 2 CS operations had a longer operation time. The mean operation time was 100 minutes in patients with a history of >2 CS, 90 minutes in patients with a history of one CS, and 83 minutes in patients without a history of CS but with a history of VD. (Table 4)

Three patients converted to LAVH. One was due to colon adhesion to the uterine fundus, one with adhesion at the Cul-De-Sac, and one with a narrow vagina.

4. Discussion

Auth This is the first study describing the usage of Lagis LapBase Cap in vNOTES surgery. Most vNOTES surgeries were conducted with a single-port device, and some were conducted with a handmade-glove-port. Based on our experience, the cap worked well with sealing and supporting the surgery instruments. At our hospital, the Lagis LapBase Cap cost around 5,500 NTD (about 170 USD). It is more cost-effective for the institution and affordable for the patient. The single-port device, on the other hand, typically costs more than 10,000 NTD (310 USD). This is a retrospective study of one hundred and seven patients who underwent vNOTES hysterectomy in Taiwan and who had a low conversion rate of 2.8% (3/107). One hundred and four patients successfully received the vNOTES procedure. There were no bowel or bladder injuries in the 107 patients.

Among the 104 patients successfully receiving the vNOTES procedure, the mean operation time was 88 minutes, which is comparable to previous studies in Taiwan, Korea, Turkey, and France [3,12,13]. We divided patients into groups according to uterus size and BMI, and tried identify risk factors for a longer operation time. Wang C.J. showed that a longer operation was associated with patients with a bigger uterus [4]. A 2020 Belgian study and 2025 Ryo Chee Ann Tan found similar results [9,10]. A French study published in 2023 discussed operation outcomes. The mean operative time was shorter in the vNOTES group than in the laparoscopy group [116 min versus 149 min; p=0.003] [8]. Longer operative time are associated with higher body mass index (BMI). The median operative time for vNOTES hysterectomy was 79 (44 – 128) minutes, 104 (48 – 193) minutes, and 106 (45 – 106) minutes in obesity class I, II, and III patients, respectively class I (BMI 30.1 - 34.9 Kg/m 2 ), class II (BMI 35.0 – 39.9 Kg/m 2 ), and class III (BMI ≥ 40.0 Kg/m 2 ). [14]

According to our study, patients with a uterus smaller than 300gm had an average operation time of 81 minutes. There was no difference in operation time between lower BMI and higher BMI in patients with a small uterus (<300gm). Among patients with a uterus larger than 300gm, the average operation time was 98 minutes, and it took even more time if BMI ≥24kg/m2, compared to those with BMI <24 (average 106 minutes compared to 89 minutes). Nulliparity was not a contraindication for the vNOTES procedure, but we hypothesized that a narrow vagina might cause more difficulty in performing colpotomy, and thus cause a longer operation time or even conversion. The average operation time for nullipara women (n=5) was 110 minutes. Among those requiring conversion surgery, one patient was nullipara and colpotomy failed due to a narrow vagina. Among women with a history of cesarean section, and without a history of vaginal delivery, a CS incision adhesion at the anterior lower uterus segment also led to a longer operation time. In our experience, we could place a wound retractor after a posterior colpotomy was completed, even when an anterior colpotomy was incomplete due to a CS incision adhesion. Adhesiolysis could be done under laparoscope (Figure 2), but the adhesion at low segments might cause the wound retractor to slip out of the vagina and it would take time for the surgeon to replace it. According to our data, women with a history of more than two CS experienced longer operation times, with an average of 100 minutes.

Most patients at our hospital were discharged on post-operative day 2, with a length of stay of 3 days. Some patients who recovered well, with little Hb change, minimal postoperative wound pain, and the ability to ambulate and tolerate oral intake were discharged the day following the operation. However, the average length of stay for patients with a large uterus was 3.23 days. According to our data, we found that longer operation times and preoperative anemia were also associated with a longer length of stay. There were 41 patients with Hb <11 before the operation and 16 of them received a blood transfusion. The average length of stay for this group was 3.19 days and 12 were admitted for more than 4 days. Among those without anemia (n=63), the average length of stay was 2.93 days. Only one of 63 patients in this group received a blood transfusion due to postoperative anemia with dizziness. Our study followed an institutional antibiotic protocol that included cefazolin and gentamicin intraoperatively, plus 24 hours of cephradine. This differs from current guidelines recommending single-dose prophylaxis and should be considered when interpreting our results[15]

5. Conclusions

The Lagis LapBase Cap provided a stable and efficient access platform for transvaginal NOTES hysterectomy across a cohort of 107 patients, with a high procedural success rate (97.2%) and no major complications. Surgical difficulty was most influenced by uterine weight ≥300 g and a history of multiple cesarean sections. Nulliparity was associated with longer operative time and higher blood loss, likely due to limited vaginal exposure and technical challenges during colpotomy. While elevated BMI alone was not predictive of increased complexity, its combination with large uterine size resulted in prolonged surgery. Preoperative anemia demonstrated a stronger association with extended hospitalization than either BMI or uterine weight. These findings suggest that appropriate patient selection and risk stratification are critical in optimizing outcomes of vNOTES hysterectomy. The LapBase Cap may facilitate broader adoption of the technique by offering cost efficiency and technical reliability, particularly in settings where access to commercial single-port devices is limited, similar to other glove-and-retractor based platforms described in gynecologic laparoscopy[16]
