Zeaxanthin Epoxidase 3 Knockout Mutants of the Model Diatom Phaeodactylum tricornutum Enable Commercial Production of the Bioactive Carotenoid Diatoxanthin

1. Introduction

Carotenoids are a diverse group of pigments produced by plants, algae and photosynthetic bacteria that have crucial roles within photosynthesis and protection from photodamage [1]. In humans, carotenoids can have health benefits mainly through their antioxidant effects and are emerging as molecules of vital importance that might offer protection against a variety of chronic diseases like cancer, obesity, cataract, cardiovascular and neurodegenerative diseases [2,3,4,5]. Additionally, carotenoids like α-carotene and β-carotene are dietary precursor of vitamin A, essential for human eye health and vision. The main applications of these compounds are as dietary supplements, fortified foods, food colours, animal feed, nutraceuticals, pharmaceuticals and cosmetics [6,7,8]. Today, only a few carotenoids are commercially produced including carotenes (β-carotene and lycopene) and xanthophylls (astaxanthin, canthaxanthin, capsanthin, lutein, zeaxanthin (Zx) and fucoxanthin (Fx)) [9].

Fx is one of the most valuable carotenoids present in the marine environment (market price 40,000-80,000 USD/kg) and it can be extracted from certain groups of marine microalgae or brown seaweed [6,10,11,12,13]. Applications of Fx currently extends from use in the pharma- and nutraceutical industry to use in animal feed and in cosmetic products [6,10]. In algae cells, Fx has a main role in light harvesting, and low light (LL) conditions increase the production of this carotenoid [10,14,15]. Recent research has highlighted the pronounced bioactivity of another marine carotenoid, diatoxanthin (Dtx), outperforming commercially available carotenoids as potential disease preventing agents [16,17,18,19]. Antioxidant and anti-inflammatory abilities have been reported where Dtx has lowered the production of reactive oxygen species (ROS) and pro-inflammatory cytokines in vitro [16,17,18]. Dtx has also been suggested as a potential therapeutic agent in the treatment and/or prevention of the severe inflammatory syndrome related to SARSCoV-2 infection [18]. These findings highlight Dtx as a new marine antioxidant and anti-inflammatory agent of commercial interest.

Dtx is a low abundance xanthophyll exclusively found in diatoms and a few other groups of microalgae including dinophytes and haptophytes [20]. Dtx together with diadinoxanthin (Ddx) comprise the xanthophyll cycle crucial for regulating the flow of energy to photosystem II (PSII) in these algae [20]. The Ddx-Dtx cycle is the equivalent to the xanthophyll cycle in higher plants and green algae where violaxanthin (Vx) is converted to zeaxanthin (Zx) via the intermediate antheraxanthin by violaxanthin de-epoxidase (VDE) [20]. The reverse reaction is catalysed by zeaxanthin epoxidase (ZEP). In diatoms, the qE component (pH- or energy-dependent component) of the photoprotective mechanism non-photochemical quenching (NPQ) of chlorophyll (Chl) a fluorescence depends on the high-light (HL) induced buildup of a transthylakoidal ΔpH, the de-epoxidation of Ddx to Dtx and the presence of specific light-harvesting complex (LHC) proteins of the LHCX class [20,21]. The reverse reaction takes place in low LL. The interconversion between the pigments of the xanthophyll cycle in diatoms is a rapid process and relaxation of NPQ including back-conversion of Dtx to Ddx takes place within minutes after a shift from HL to LL conditions [20,21]. The rapid loss of accumulated Dtx in LL will hamper industrial-scale production of this potentially valuable carotenoid since Dtx will be converted to Ddx during the lengthy harvesting process of the algae biomass. A possible solution is to knock out the gene encoding the enzyme responsible for the epoxidation of Dtx to Ddx, and thereby stabilizing HL-accumulated Dtx. Transgene-free CRISPR/Cas9 gene editing is possible in the diatom Phaeodactylum tricornutum and this alga is already being produced commercially, making it an obvious choice for studies of genes involved in the Ddx-Dtx cycle [22,23,24]. Enzymes catalysing several of the reactions in the multi-step carotenoid synthesis pathway leading to the formation of Fx, Ddx and Dtx are still unknown despite great progress in this research area during the last couple of years [25,26,27]. The genome of P. tricornutum encodes three proteins belonging to the ZEP family, ZEP1-3 [28,29]. ZEP1 has recently been found to encode an enzyme essential for the synthesis of Fx [26], whereas ZEP2 and/or ZEP3 are candidate genes for encoding the epoxidase converting Dtx to Ddx [26,29,30]. A transmembrane region is predicted in the C-terminal domain of ZEP3 that has been hypothesized to be involved in the localization and/or regulation of the enzyme [20,29]. The roles of ZEP2 and ZEP3 have not yet been confirmed in diatoms, and one or both of these enzymes might also be responsible for an earlier step in the Fx synthesis pathway converting Zx to Vx [26]. Identification of the ZEP responsible for the epoxidation of Dtx to Ddx will not only be of academic interest, filling an important knowledge gap in the carotenoid synthesis pathway of diatoms, but will also be of commercial interest. A mutant strain where accumulated Dtx remains stable in the cells can facilitate large-scale production of the pigment.

In this context we created CRISPR/Cas9-mediated knock out mutants of ZEP2 and ZEP3 in P. tricornutum aiming to identify the gene encoding the epoxidase responsible for conversion of Dtx to Ddx. We exposed the mutants to shifts between different light intensities that would trigger the interconversion between the xanthophyll pigments. The carotenoid content, growth, NPQ induction/relaxation and other photosynthetic parameters were compared between zep mutants and wild type (WT) as a response to light treatments. The role of ZEP3 in the Ddx-Dtx cycle was successfully determined, and HL-accumulated Dtx was stabilized.

2. Results and Discussion

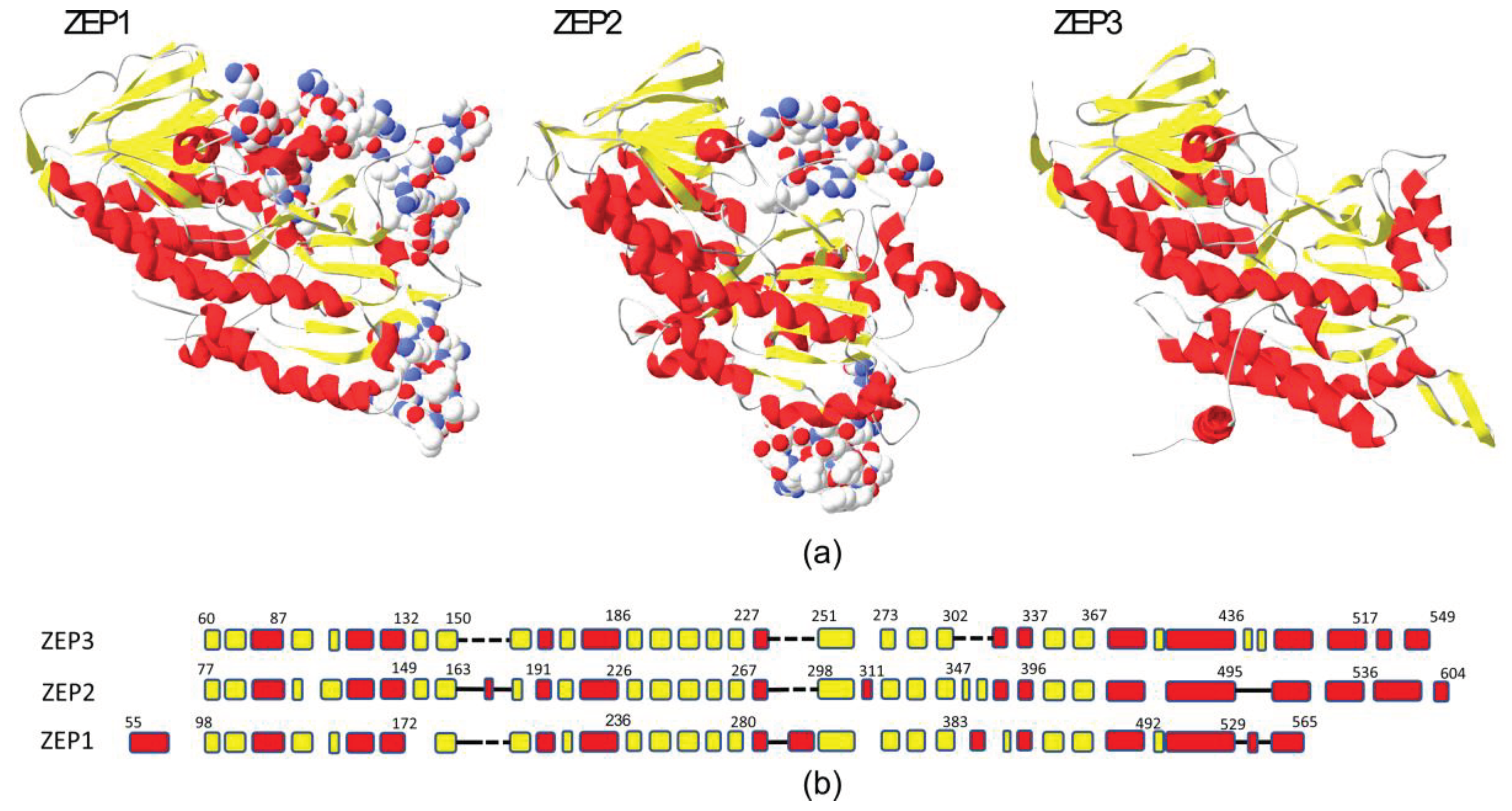

2.1. Phylogenetic and Structural Study of ZEP Genes

The ZEP genes are widely distributed in plants and algae, but in terrestrial plants and green algae they are often represented by a single gene, such as in Arabidopsis thaliana (ZEP/ABA1) or in Chlamydomonas reinhardtii (ZEP1). In marine algae the ZEP genes have diversified and several distinct groups have evolved through gene duplications in different phyla [26,31]. In diatoms most species have three distinct ZEP paralogs: ZEP1, 2 and 3. The P. tricornutum gene pairs ZEP1, VDL2 and ZEP3, VDE are located next to each other in the genome due to segmental gene duplications. Structurally the diatom ZEP proteins are similar, but ZEP1 and ZEP2 differ from ZEP3 by having three insert regions that are not found in ZEP3 (Figure 1). In addition, ZEP1 has a conserved N-terminal alpha helical domain not found in ZEP2 and ZEP3. Some species in Ochrophyta have only one ZEP gene, such as the brown algae Ectocarpus siliculosus and the raphidophyte Chattonella subsalsa (Supplementary File S1). Common for all single-copy ZEP homologs is that they are structurally more related to ZEP3 proteins. In our search for ZEP genes we also discovered a novel ZEP family in diatoms, named as ZEP4 in the phylogenetic tree presented in Figure S1, that may have evolved from a ZEP1-like ancestor. Similar to the ZEP1 proteins they have a conserved N-terminal domain which is predicted to form an alpha helix, and they lack the C-terminal alpha helical part found in ZEP2 and ZEP3. The ZEP4 family has a sparse distribution and is missing in many diatoms, such as P. tricornutum, but can be found in several species from the Naviculales, Rhizosoleniales and Thalassiosirales orders. Accession numbers for the ZEP proteins/genes and a table that summarize the distribution of ZEP proteins in various marine phyla are shown in a table in Supplementary File S1.

2.2. CRISPR/Cas9-Generated zep2 and zep3 Knockout Mutants

Vectors expressing Cas9 and gRNAs targeting either the ZEP2 or ZEP3 gene were introduced into P. tricornutum cells by bacterial conjugation [22]. Conjugative transformation allows the vector to be maintained as an episome in the diatom cells, avoiding permanent integration of vector DNA into the genome and possible disruption of genetic elements [22,32]. This method also enables the creation of transgene-free mutants, since removal of selection pressure after identification of the mutations of interest causes the cells to lose the CRISPR/Cas9 vector [22]. Mutants containing no foreign DNA might not be legally viewed as GMOs depending on the individual countries’ gene technology legislation. These mutants are likely to have a higher level of customer acceptance and use of the biomass will be subject to fewer restrictions. Most countries outside the EU do not regulate transgene-free gene edited organism as GMOs [33], and the EU is currently establishing a new regulatory framework for this type of mutants [34]. Screening of transformants for CRISPR/Cas9-induced mutations resulted in the identification of two zep2 and two zep3 knockout lines containing indels of different sizes causing frameshift mutations (Figure 2). Amplification of the two ZEP genes by PCR and Sanger sequencing of the PCR products revealed a lack of polymorphism in the sequence for three out of four mutants, indicating that only one allele had been amplified for these mutant lines. This phenomenon is typically caused by large indels or mitotic gene conversion affecting the target site as observed previously [35,36]. No background signal indicating the presence of a non-mutated WT sequence was observed in any of the mutants where only one allele was amplified by PCR.

2.3. Loss of ZEP3 Blocks the Back-Conversion of Diatoxanthin to Diadinoxanthin in Low Light

Fx is responsible for the golden-brown colour of diatoms. Green phenotypes have been reported for diatom mutants of the carotenoid synthesis pathway being completely devoid of Fx, and for mutants with strongly reduced levels of Fx as a result of lowered levels of pigment-binding proteins [26,27,37,38]. An initial examination of the zep2 and zep3 mutant cultures did not reveal a colour change from brown to green in either mutant (Figure 3a), indicating that Fx synthesis was not affected, and that neither ZEP2 nor ZEP3 are essential for conversion of Zx to Vx (Figure 3b). To determine the effect of knocking out the ZEP2 and ZEP3 genes on the carotenoid synthesis in P. tricornutum, LL acclimated WT and mutant cells were exposed to HL for 2 h before being returned to LL (rLL) for 0.5 h. Material harvested at the different time points was subjected to high-performance liquid chromatography (HPLC) analyses to determine the pigment content. The analyses showed that the Fx and Chl concentration were at WT levels in both mutants, confirming the visual impression of the mutant lines (Figure 4a; Figure S2). In contrast, significant and mutant specific differences were identified for Ddx and Dtx when compared to WT (Figure 4b,c). The Ddx and Dtx concentrations in zep2 lines were consistently lower than WT at all light treatments resulting in a smaller pool of photoprotective pigments. However, the zep2 mutants displayed a close to identical de-epoxidation state (DES) index (Dtx/(Dtx+Ddx)) pattern as WT as a response to the shifts in light intensities (Figure 4d), indicating that the cyclic interconversion between Ddx and Dtx are unaffected by the loss of ZEP2. Despite the zep2 mutants displaying WT levels of Fx and a functional Ddx-Dtx cycle, the reduced pool of Dtx+Ddx still implies that ZEP2 plays a role in the synthesis of carotenoids in diatoms. The mild zep2 phenotype might be explained by ZEP3 being able to compensate for the loss of ZEP2 by catalyzing the Zx to Vx reaction, although with a lower efficiency than ZEP2.

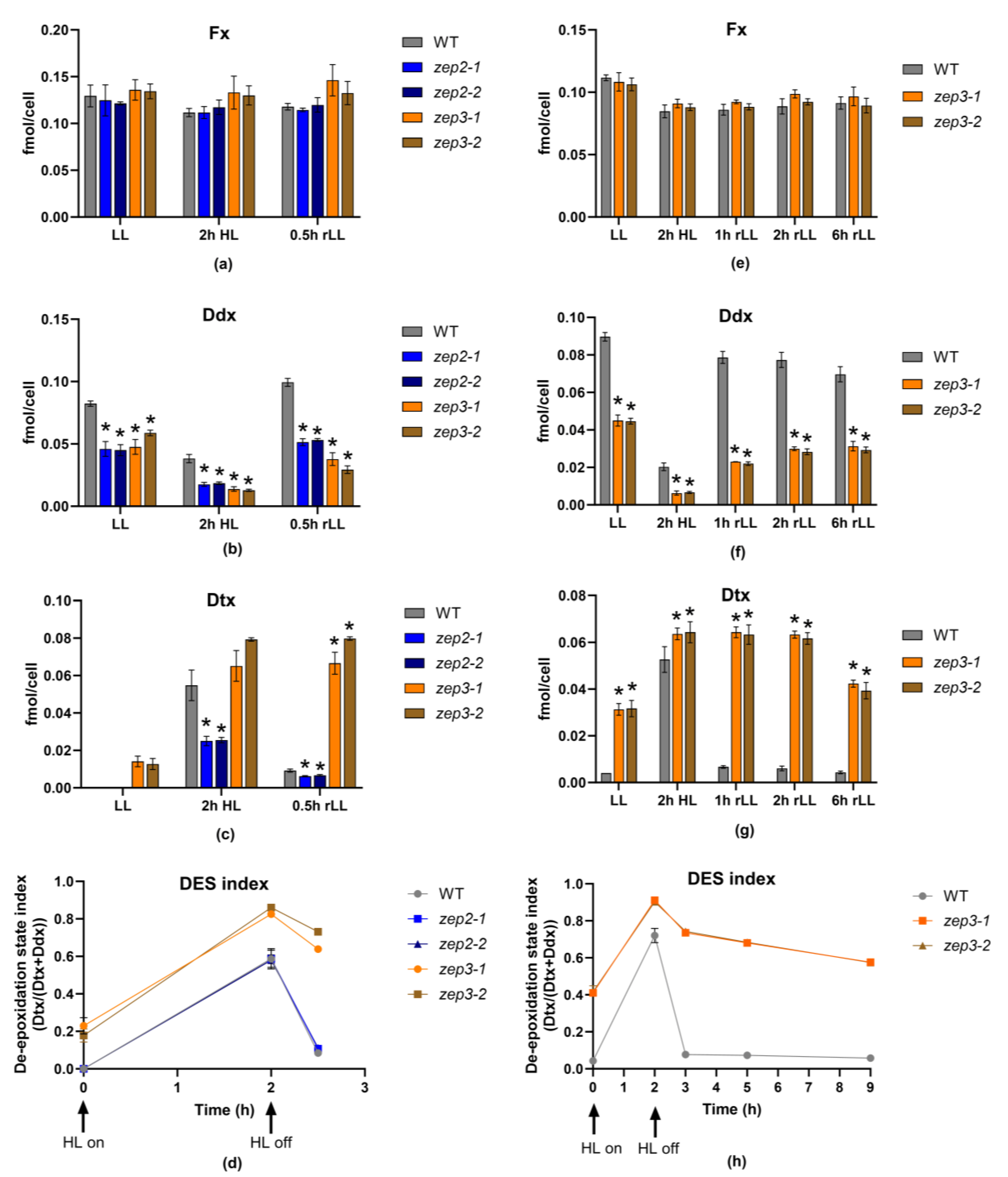

In contrast to the zep2 strains, the zep3 strains show higher Dtx and higher DES index levels than WT throughout the experiments, and most strikingly, an inability to back-convert Dtx accumulated during the HL treatment to Ddx when returned to LL conditions (Figure 4b–d). In zep3 mutants Dtx was already abundant in LL conditions. In green algae, where Zx and Vx comprise the xanthophyll cycle, a similar phenotype was reported for zep knockout mutants, where Zx accumulates in all light conditions [39,40]. To further investigate the stability of accumulated Dtx in the zep3 strains, an additional experiment was performed where material was harvested 1 h, 2 h and 6 h after the cultures had been returned to LL (Figure 4e–h). These results corroborated our initial findings that ZEP3 is the enzyme responsible for the epoxidation of Dtx to Ddx (Figure 4f–h). The Dtx concentration in the zep3 strains remained at HL levels after 1 and 2 h of rLL (Figure 4g). An average decline in Dtx levels of approximately 40% could, however, be observed at the 6 h rLL time point compared to HL levels, but the decline coincided with a similar increase in cell number, suggesting that Dtx had been distributed between daughter cells. The above-described results suggest that the yield of Dtx produced from a zep3 mutant culture will stay high during harvesting of the biomass in an industrial setting.

2.4. Loss of ZEP3 Inhibits Relaxation of the Photoprotective Mechanism NPQ

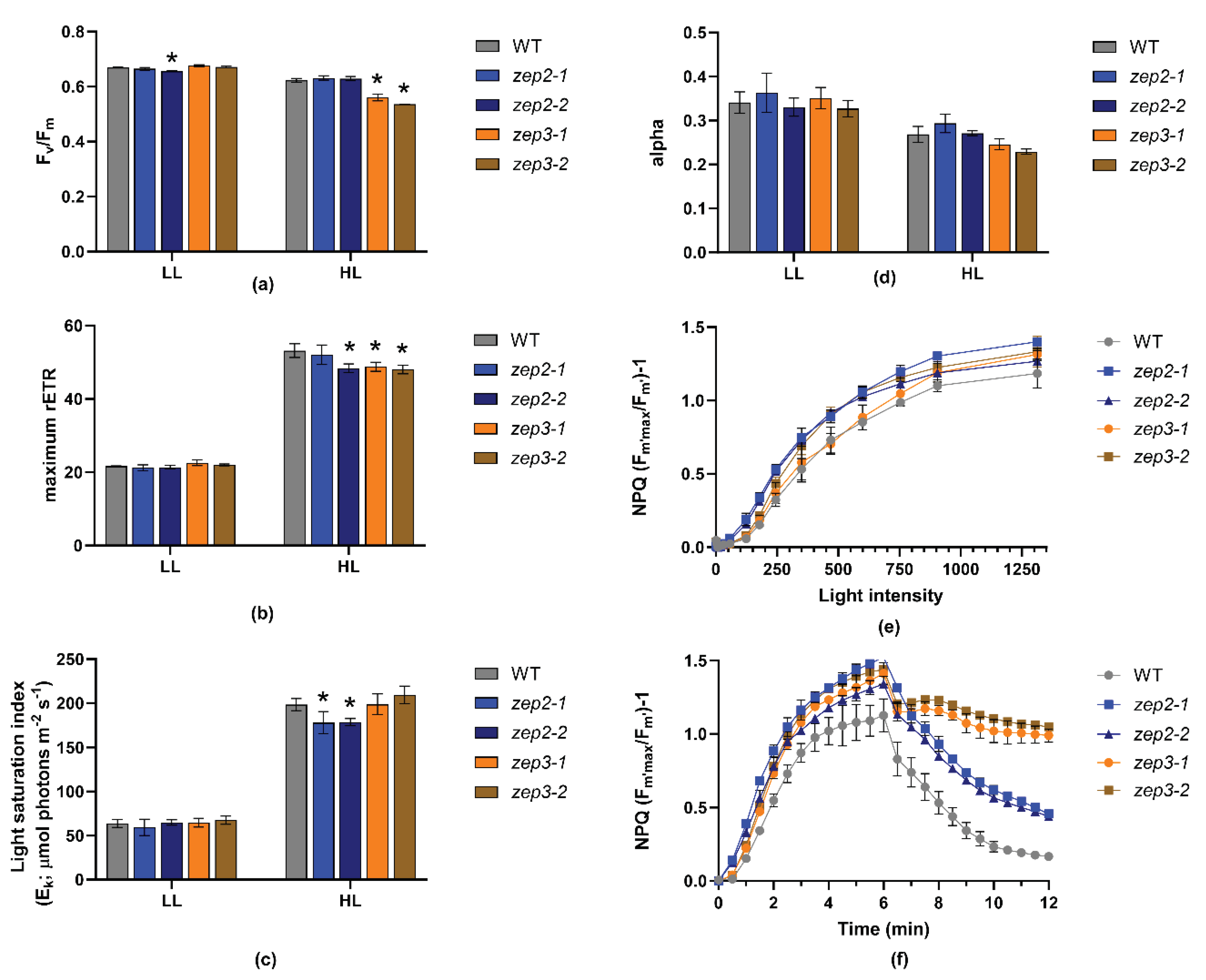

To investigate the effect of loss of ZEP2 and ZEP3 at the physiological level, growth rates and photosynthetic performance of zep2 and zep3 mutants were compared to WT using cultures acclimated to LL or HL. The photophysiological effects were assessed using Chl a variable fluorescence for calculations of the photosynthetic (PSII) efficiency (maximum quantum yield, F_v/F_m), the photosynthetic capacity (maximum relative electron transport rate, rETR_max), the maximum light utilization coefficient (the slope of the photosynthesis versus irradiance curves, alpha), and the light saturation index (E_k = rETR_max/alpha) at the two different light conditions (Figure 5a–d). E_k, alpha and rETR_max were derived from rapid light curves. These measurements revealed non or minor differences in photosynthetic performance between zep2 and zep3 mutants and WT. The similar photosynthetic performance in all strains is in line with the highly similar cell division rates of mutants and WT in LL and HL (Table 1). Because of the possibility of the zep3 mutant strains being of interest for commercial cultivation we also investigated the growth in light fluctuating on a milli-second scale simulating conditions experienced in a photobioreactor (PBR; Table 1). PBR-light conditions did not induce statistically significant growth differences under these conditions either, supporting the possibility of industrial cultivation of zep3 strains. Also, no statistical differences were found between the maximum NPQ values in zep mutants compared to WT, neither when NPQ was induced by a stepwise increase in blue light intensity, nor when NPQ was triggered by exposure to constant high intensity blue light (Figure 5e,f). In contrast, the relaxation behaviour of NPQ in low intensity blue light is mutant specific and deviates clearly from WT (Figure 5f). A lack of ZEP3 strongly inhibits the relaxation of NPQ. After a small, but rapid decline within the first minutes in very dim light, the NPQ relaxation curve of zep3 flattens out and the NPQ level remains at approximately 70% of the maximum level at the end of the relaxation period. The inhibition of NPQ relaxation correlate with the zep3 mutants’ inability to back-convert Ddx to Dtx when returned to LL, and the importance of presence of Dtx for the performance of NPQ in diatoms [20,21]. Still, the modest relaxation of NPQ despite the stable content of Dtx indicate the additional presence of a short-lived fluorescence quenching mechanism independent of a decline in Dtx [41]. This fast (< 1 min) relaxation component has previously been described in the centric diatom Cyclotella meneghiniana and, more recently, it has also been observed in P. tricornutum (pennate diatom) where it was believed to be absent [41,42,43,44]. This fast NPQ mechanisms seems to be dependent on the concentration of Dtx and has been interpreted as the relaxation of part of the steady-state Dtx-dependent quenching [41]. However further studies are needed to clarify the mechanisms behind and if differences are present between centric and pennate diatoms. The NPQ relaxation pattern of zep2 is more similar to WT, but less efficient. NPQ in zep2 relaxed to approximately 30% of maximum levels, whereas the equivalent number for WT was 15%. The DES index of the zep2 mutants was close to identical to WT and did not correlate with the slower NPQ relaxation behaviour of zep2.

3. Materials and Methods

3.1. Structural Comparison and Phylogenetic Analyses of ZEP Proteins

The pdb files of the predicted 3D structures of P. tricornutum ZEP1, ZEP2 and ZEP3 were downloaded from the AlphaFold2 server (https://alphafold.ebi.ac.uk/) [45,46]. The Swiss PDB Viewer 4.1 was used to view and analyze the proteins [47]. In the 3D models, the non-conserved regions, including the leader peptides with chloroplast targeting motifs and transit peptides, were excluded from the models. For the phylogenetic analyses a protein alignment of 158 full length ZEP proteins was produced using ClustalW [48] and manually refined using GeneDoc software version 2.7.000. The phylogenetic analysis was conducted in MEGA11 software [49], using the Maximum Likelihood method and Le_Gascuel_2008 model [50]. An un-rooted radial maximum-likelihood tree was produced, where a group of flavin binding proteins distant related to the ZEP proteins serves as an outgroup. The percentage of trees in which the associated taxa clustered together are shown by numbers, in total 100 bootstrap replicates were made. Bootstrap numbers for main clusters with high confidence are shown in the tree. The rate variation model allowed for some sites to be evolutionarily invariable ([+I], 2.15% sites). The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. All positions with less than 80% site coverage were eliminated. There were a total of 436 positions in the final dataset.

3.2. CRISPR/Cas9 Gene Editing of the ZEP2 and ZEP3 Genes

Knockout mutations in the ZEP2 (Phatr2_5928) and ZEP3 (Phatr2_10970) genes in P. tricornutum were generated using the CRISPR/Cas9 tool adapted for gene editing in diatoms [22,51,52]. The pPtPuc3m diaCas9_sgRNA vector expressing the Cas9 and single guide RNAs (sgRNAs) targeting ZEP2 or ZEP3 was delivered to P. tricornutum cells by bacterial conjugation as described by Sharma and coworkers [22]. Cloning of gene specific adapters into the sgRNA of the pPtPuc3m diaCas9_sgRNA vector was performed as described in the published protocol by Nymark et al. [52]. The P. tricornutum cells that were subjected to CRISPR/Cas9 gene editing were derived from clone Pt1 8.6 (CCMP632) from the culture collection of the Provasoli-Guillard National Center for Culture of Marine Phytoplankton, Bigelow Laboratory for Ocean Sciences, USA. Screening, identification and isolation of cells containing bi-allelic mutations in ZEP2 and ZEP3 were performed as described previously [51,52]. ZEP2 and ZEP3-specific oligonucleotides used for creation of the adapters inserted into the sgRNA of the pPtPuc3m diaCas9_sgRNA vector and primers used for screening purposes are presented in Table 2.

3.3. Light Conditions

P. tricornutum WT, zep2 (zep2-1, zep2-1) and zep3 (zep3-1, zep3-2) mutant strains were grown at 15°C in f/2 medium [53] made with 0.2 µm sterile filtered and autoclaved seawater from the Trondheim fjord. Experimental light conditions were either continuous white light at 35-40 μmol photons m^-2 sec^-1 (low light (LL)) or high light (HL) at 450-500 μmol photons m^-2 sec^-1. Cultures for estimation of cell division rates and measurements of photosynthetic parameters were cultivated at LL or HL in a growth chamber equipped with neutral white LEDs (4000K). Because of the potential industrial relevance of the mutant strains, their growth rate was also investigated in light conditions mimicking the light perception of one cell in a PBR. The Nanocosm, a LED-based miniature PBR system [54], was programmed to mimic PBR-conditions by fluctuating from darkness to 200 µmol photons m^-2 sec^-1 in a time scale of milli-seconds based on the findings of Luo and coworkers [55]. The light intensity was measured with a ULM-500 (Walz) light meter equipped with a spherical sensor. Cultivation of algae cells for pigment analyses was performed in a growth room where LL was provided by fluorescent cool daylight tubes (colour code 865/6500K), whereas a full spectrum LED lamp (5500K) was used to achieve HL conditions. The light intensity in the growth room was measured using a LI-250A light meter (LI-COR Biosciences).

3.4. Growth Rates

Cell division rates were estimated in WT, zep2 and zep3 mutant lines (three biological replicates for each line) acclimated to either LL, HL or PBR conditions. The cells were grown in 24-well plates at a starting concentration of 30.000 cells mL^-1. Growth was measured indirectly by recording the daily increase in in vivo Chl a fluorescence (IVF; Ex: 460 nm, Em: 680 nm) for nine days. IVF was measured using a Tecan Spark plate reader at five different points in each well. The averaged IVF values were used to plot growth curves and the cell division rates were calculated from the exponential part of the curves.

3.5. Measurements of Photosynthetic Parameters

The photosynthetic parameters F_v (F_m-F₀)/F_m (photosynthetic efficiency), the maximum relative electron transport rate (rETR_max; photosynthetic capacity), the maximum light utilization coefficient (alpha) and the light saturation index (E_k = rETR_max/alpha) were calculated based on measurements of variable in vivo Chl a fluorescence using a Multi-Color-PAM fluorometer (Walz, Germany). The instrument was equipped with a Peltier cell (US-T/S, Walz) to keep the temperature constant at 15°C (±0.2°C) during measurements. Rapid light curves were obtained by exposing the samples to 14 stepwise increasing irradiances of 0-1313 µmol photons m^-2 sec^-1 (blue (440 nm) measuring and actinic light) after a five min incubation period in darkness. The cardinal points (alpha, ETR_max, E_k) of the light curves were determined by the build-in fitting routine of the PamWin-3 software package (ver. 3.20). NPQ was calculated as a function of the stepwise increasing light intensity from F_m and F_m’ values generated during measurements of the rapid light curves as (F_m/F_m’) -1. Additionally, NPQ induction and relaxation were investigated by exposure of LL-acclimated cells to 470 µmol photons m^-2 sec^-1 of blue light for 6 min, immediately followed by a 6 min incubation period at 8 µmol photons m^-2 sec^-1 of blue light. The initial F_m value was measured after five min of dark incubation, and F_m’ was measured every 30 sec during the light treatments.

3.6. Diatoxanthin In Vivo Stability Experiment (Pigment Analyses)

LL-acclimated WT, zep2 and zep3 mutant strains were exposed to 2 h of HL before being returned to LL (rLL) conditions for 0.5 h. The experiment was repeated with WT and zep3 mutants where the rLL treatment was prolonged to 1 h, 2 h and 6 h. Three biological replicates were included for each line for both experiments. For each biological replicate, samples for pigment analyses were taken successively from the same culture. Cell concentrations at the time of harvesting were between 0.6-1.5 x 10⁶ cells mL^-1. Cell numbers were determined by flow cytometry using a NovoCyteTM flow cytometer (ACEA Biosciences) as described previously [51] or by using a Multisizer 4e Coulter Counter (Beckmann Coulter). Pigment analyses were performed by HPLC using a Hewlett-Packard HPLC 1100 Series system as described previously [38,56].

3.7. Statistics

Two-way ANOVA with Dunnett’s multiple comparison tests was carried out using GraphPad Prism software (version 10.1.0) to determine if there were significant differences (P < 0.05) between the pigment concentrations and NPQ values in zep2 and zep3 mutants compared to the WT.

4. Conclusions

Based on the combined results we conclude that the presence of ZEP3 is essential for conversion of Dtx to Ddx in P. tricornutum. ZEP2 is unable to compensate for a lack of ZEP3, meaning that ZEP2 and ZEP3 do not have overlapping functions in the Ddx-Dtx cycle. The role of ZEP2 in the carotenoid synthetic pathway of diatoms is not revealed by our study, and a zep2zep3 double knockout mutant is likely to be necessary to investigate their suggested function in catalysing the transformation of Zx to Vx. The stability of HL-accumulated Dtx for hours after removal of zep3 mutants from the HL source and the WT-like photosynthetic performance and growth rates at all tested light conditions, indicate that such strains might function as commercial-scale production line for the bioactive carotenoid Dtx from diatoms.
