Frequency-Based Flood Risk Assessment and Mapping of a Densely Populated Kano City in Sub-Saharan Africa using MOVE Framework

1. Introduction

In recent years, climate change and rapid urbanization of cities have caused significant urban flooding resulting in traffic disturbances, disruption of services, damage to properties and critical infrastructure, harm to vulnerable populations and sometimes loss of lives [1,2,3]. An important contribution to threats posed by floods is the generation of flood maps and the estimation of flood risk [4]. Generally, “risk” is defined as the potential consequences of a hazard and flood maps indicate the inundated areas based on the rising water levels, but flood maps alone are not adequate to assess risks to property, infrastructure and services due to flood events. Therefore, socio-economic factors are critical for flood risk assessment [5]. UNISDR [6] defined risk assessment as a process or application of a methodology for evaluating risk as defined by the geographic coverage of the hazard, the exposure of people, property and infrastructure to the hazard, and the vulnerability of people, property and infrastructure to the event. Flood risk assessment is a systematic procedure to identify, analyze and quantify the real and expected damage threats of flooding [7].

A flood hazard is a potentially damaging phenomenon which may cause loss of life or injury, property damage, social and economic disruption or environmental degradation [8]. Flood hazards have increased in recent years due to climate change, fast socio-economic development, population growth and inefficient use of land. Urban flood hazard assessment is important for the mitigation of floods and a necessary step for government policies on urban planning worldwide [4]. They help the planners manage better the sites for urban development and recognise areas that probably need stormwater runoff infrastructure [8]. Flood hazards have increased in recent years because of different factors, such as climate change, subsidence, fast socio-economic development, population growth, inefficient use of land and urbanization resulting in increased impervious surfaces [9,10]. Generally, flood hazard assessment and mapping are used to identify areas at risk of flooding, and consequently to improve flood risk management. The assessments and maps typically look at the expected extent and depth of flooding corresponding to various return periods [11]. In the context of Kano city, Temitope [12] generated unit hydrograph for River Jakara in Kano Metropolis using rainfall data. Abaje et al. [13] investigated the changing rainfall pattern in Kano over a period of 6 decades. Mohammed et al. [14] examined rainfall dynamics and climate change in Kano using 100 years of rainfall data and Mohammed et al. [15] examined gaps between climate change and urbanization in Kano city. No study known to the researcher considered flood hazard assessment for Kano city using flood frequency analysis. The lack of such a study on flood hazard estimation for the whole city makes it difficult to determine the possible areas that are prone to flood with a view to propose mitigation measures.

According to the Intergovernmental Panel on Climate Change [16], vulnerability is defined as “the degree to which a system is susceptible to, and unable to cope with, adverse effects of climate change, including climate variability and extremes”. Vulnerability determines how people will be affected and where they are spatially located [17]. Vulnerability is a multi-faceted concept with varying characteristics or dimension in nature. It is a set of multiple stressors that act together to determine the vulnerability of an area. These stressors include geographical location, exposure of population and infrastructure, socio- economic and cultural conditions, political and institutional structures as well as coping and adaptive capacity that differentiate the impacts on people and the human system [18]. This means also, that an area may be highly exposed to a hazard such as flood, but less vulnerable if it has adequate means to adapt to the flood. Vulnerability is therefore not a matter of only exposure, but rather a combination of exposure with local socio-economic factors [18]. Flanagan et al. [19] argued that social vulnerability refers to the socioeconomic and demographic factors that affect the resilience of communities. Social vulnerability can have multiple forms: it can be the state of the system before the event, the likelihood of outcomes in terms of economic losses and life lost, and it can also be the lack of capacities or weaknesses to face and recover quickly when the disaster strikes. A better understanding of the level of vulnerability and how the susceptible population is distributed can be beneficial for better management of flood risk [20]. There are numerous studies that have considered the vulnerabilities of social, economic and environmental systems to flooding [21,22,23,24,25]. Action aid [26] investigated vulnerability of six African cities on the basis of key management criteria including local people’s perceptions of the causes of flooding, adaptation and the community’s social coping capacity. Nabegu [24] assessed the vulnerability of households in the study area, to flood disaster, using questionnaires survey on infrastructure analysis and flood impact information. Social vulnerability refers to the characteristics of a person or group in terms of their capacity to anticipate, cope with, resist, and recover from the impact of a natural hazard [27]. Social vulnerability is related to gender, class, race, age, poverty and many more [28]. In this study, social vulnerability was considered because the study area is an urban center with significant population and valuable assets.

There are a number of multi-criteria evaluation concepts that are being used in assessing social vulnerability such as Analytical Hierarchy Process [29,30] and Method for the Improvement of Vulnerability in Europe (MOVE) framework [18]. In MOVE framework, characterization of vulnerability is done through three key factors, namely, 1) exposure, 2) susceptibility, and 3) lack of resilience [18]. MOVE framework was developed as a vulnerability assessment framework, arising from the MOVE project carried out from 2008–2011 in Europe. It was developed based on past vulnerability projects in Europe, but the concept is used worldwide [27]. Lianxiao and Morimoto [27] used MOVE framework and Information Entropy Method to carry out spatial analysis of social vulnerability to floods in Katsushika Ward, Tokyo, Japan. Williams and Muhammad [31] applied the MOVE framework with GIS to assess social vulnerability to malaria in Katsina-Ala, Benue State, Nigeria. Kablan et al. [18] used MOVE framework to assess social vulnerability to floods in Urban Côte d’Ivoire and Sane et al. [32] applied MOVE framework to assess social vulnerability to flood in Medina Gounass Dakar, Togo. The present study employed MOVE framework in assessing social vulnerability to floods Additionally, the study is the first to use flood frequency analysis to estimate floods hazards and then integrates flood hazard with flood vulnerability assessments to determine the flood risk in Kano metropolis.

2. Materials and Methods

2.1. The Study Area

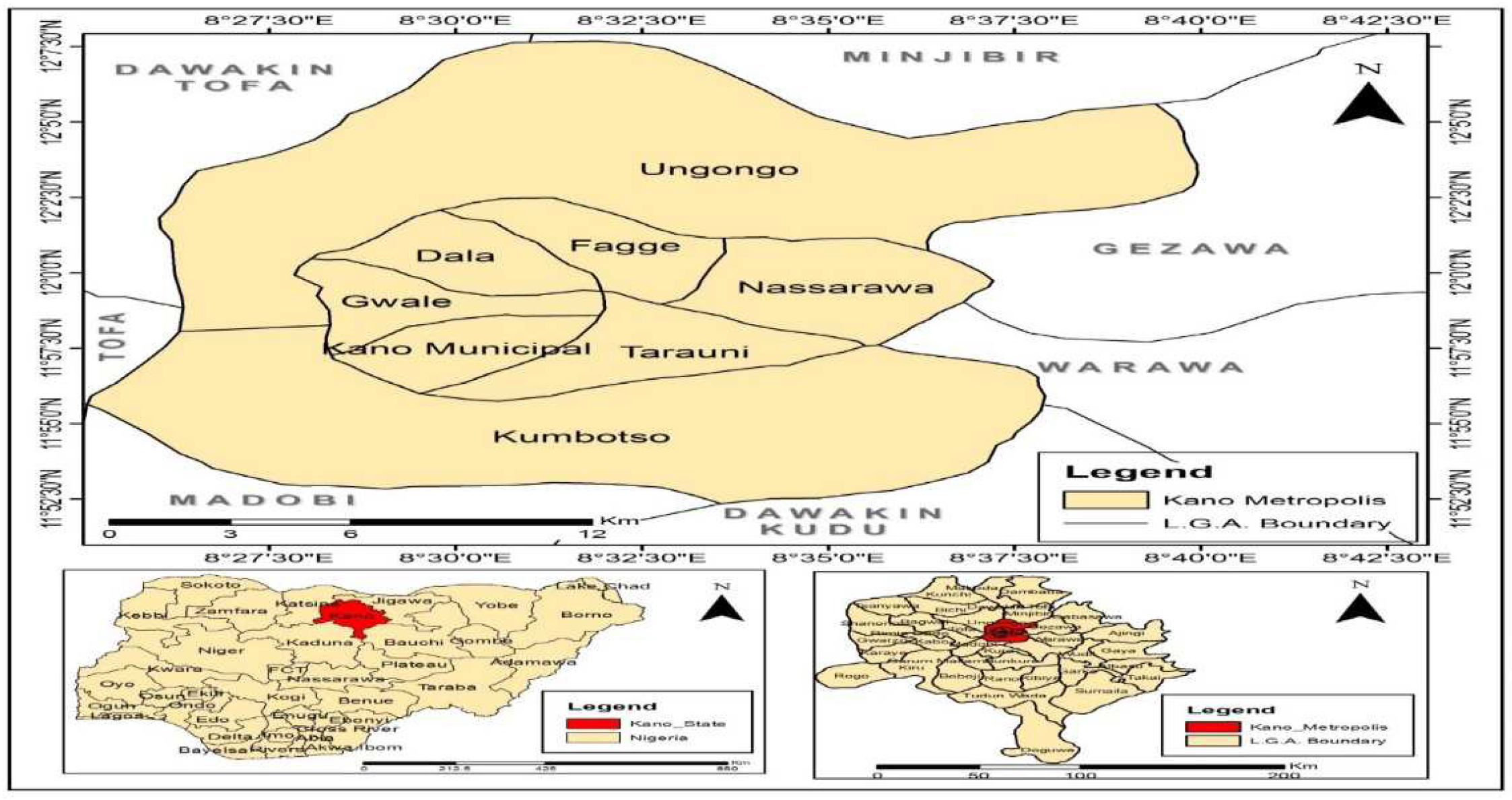

Kano Metropolis is located in North-western Nigeria. The city’s nucleus is located on latitude 11.75^oN and longitude 12.52^oE. The metropolis covers total area of 499 km² with a total population of about 3,931,300 inhabitants (as projected from the last 2006 Census figure). It is the second largest industrial center in Nigeria and the most populated city in Northern Nigeria. The population density of Kano is well over 20,000 per square kilometer in many locations [15]. The city experiences a mean annual rainfall of about 800 mm with wet season occurring mainly from June to September. Great temporal variation occurs in the amount of rainfall received and no two consecutive years record the same amount [33]. Figure 1 shows the administrative map of Kano metropolis. The city is drained by two river basins; Challawa and Jakara.

2.2. Determination of Flood Hazard

The hydrology of Kano city is divided into two main basins; Challawa and Jakara basins which serge as main receptacles of runoff from the city. Challawa was delineated into (15) subbasins with total drainage area of 105 km² whereas, Jakara basin was delineated into (17) subbasins with a total drainage area of 110 km² using Archydro tool and HEC-GeoHMS extentions in ArcGIS 10.7. Streamflow for the basins were generated using HEC-HMS rainfall-runoff transformation using maximum daily rainfall data collected for the area [34]. Goodness-of-fit test was carried on the flow data using Easyfit 5.0 and Log-Pearson Type III distribution was found to fit well. The flood frequency analysis and the corresponding flood inundation and hazard assessments were carried out for 2, 5, 10, 50 and 100-years floods using HEC-GeoRAS extension in ArcGIS 10.7 and hydraulic modelling in HEC-RAS 5.0. Flood hazard was classified using water depth and flood velocity as presented in Table 1 [35,36,37]. For example, a moderate sized person begins to lose stability in 0.9 m deep water flowing at 0.6 m/s. Deep inundation and high velocity of flood are classified as destructive while deep inundation with low velocity is classified as less destructive [38].

2.3. Determination of Social Vulnerability

Population figures from the immediate past census year (2006) was obtained from the National Population Commission and was projected using Equation (1).

(1)

where P and P_o = future and current population, r = growth rate, t = time in years.

The population density was obtained using Equation (2).

(2)

where P = Number of people and A = land area

Social vulnerability to flood was carried out using MOVE framework [39]. Characterization of vulnerability was done through three key factors, namely, 1) exposure, 2) susceptibility, and 3) lack of resilience. These indicators are presented in Table 2.

The normalized value of the indicators were computed using either Equations (3) or (4) [32]. When the indicators are related positively with the vulnerability, the normalized value of the indicator is computed using Equation (3):

(3)

When the indicators are related negatively with the vulnerability, the normalized value of the indicator is computed using Equation (4):

(4)

where, X_ij is the normalized value of the indicator i of the component j; x_ij, is the value of the indicator i; max(x_ij) and min (x_ij) are respectively the maximum and minimum values of the indicators i of the component j.

The weights to the individual indicator (w_j) were assigned using a weighting method developed by [40] as reported in [18] and presented as Equation (5):

(5)

where c is the normalized constant given by Equation (6)

(6)

The normalized indicators were aggregated using Equation (7)

(7)

where w (0 < w < 1 and ) are the weights. Finally, the three components that is E, S, LoR were aggregated into final composite indicator of social vulnerability using Equation (8) [32].

(8)

where V = vulnerability index, m = number of components, w_j = weights for domain j and x_j = index of component J (E, S, LoR). Therefore, the vulnerability weights were assigned for each category with 1 as the maximum in each case.

The results of social vulnerability index was saved in ArcGIS and was joined with flood inundation polygon for each scenario using the Join tool in ArcGIS 10.7. The Conversion tool was then used to produce raster maps of social vulnerability category. The vulnerability maps were reclassified with vulnerability weights estimated using Reclassify spatial analysts tool in ArcGIS 10.7 and finally, the reclassified vulnerability maps were then integrated to produce the final flood vulnerability map for each scenario. This was done using the Weighted sum tool in ArGIS 10.7. The maps were classified into five urban flood vulnerability classes as presented in Table 3:

3.2. Determination of Flood Risk

The flood risk map was produced as a product of hazard map and vulnerability map using Raster calculation in Map algebra spatial analyst tool in ArcGIS 10.7. The flood risk map for each scenario was produced and classified into four risk zones as High, Moderate, Low and No risk (Table 4).

3. Results

3.1. Flood Hazard

Table 5 and Table 6 show the Challawa and Jakara catchment areas flood hazard classification for different return periods. It is seen that, for Challawa basin, a 2-year flood cover a total area of 9.71 km², while a 100-year flood covers a total area of 12.13 km². Likewise, a 2-year flood covers a total area of 14.35 km² while a 100-year flood covers a total area of 17.35 km² for Jakara basin. Low hazard covered majority of the floodplain.

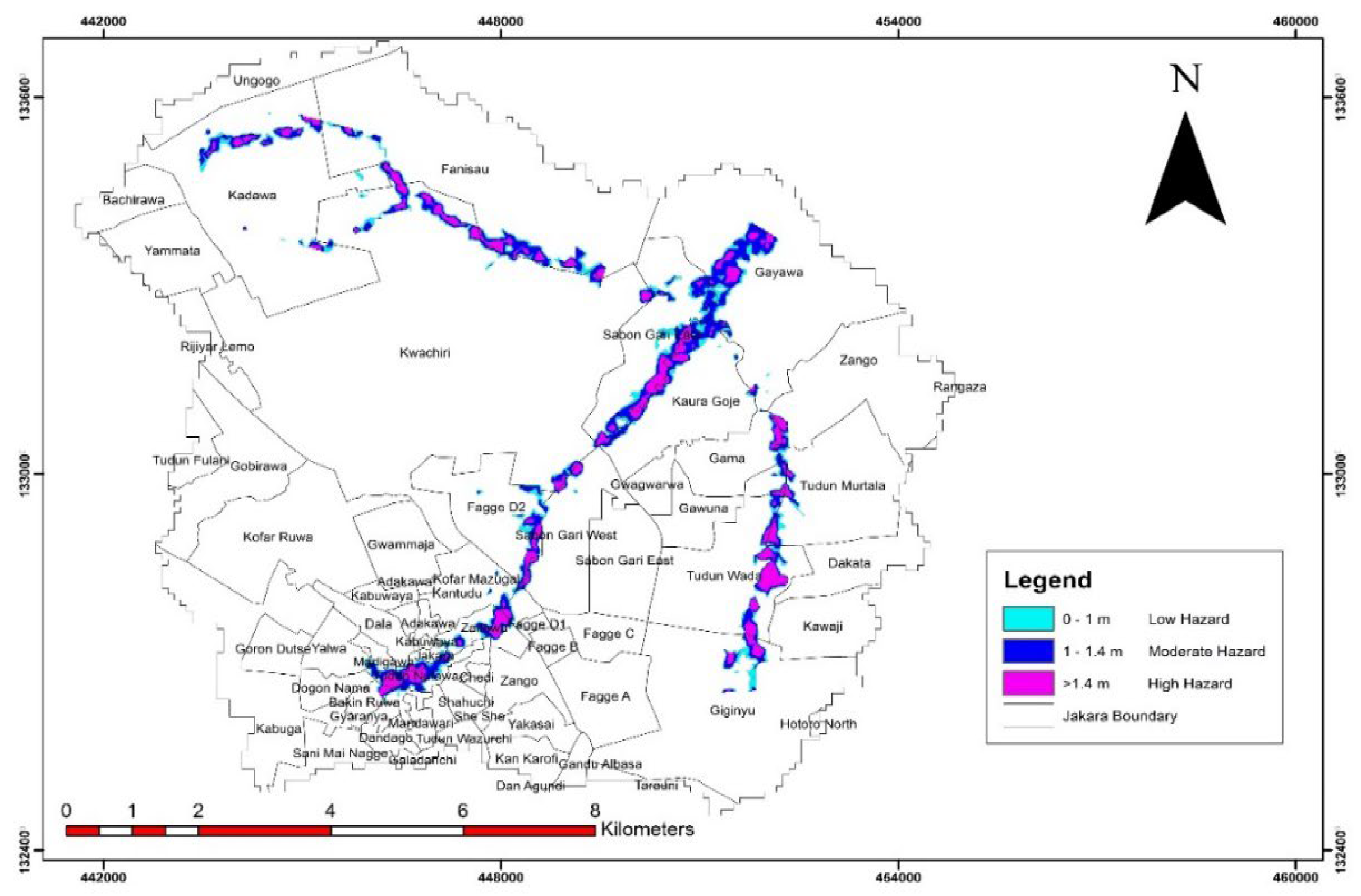

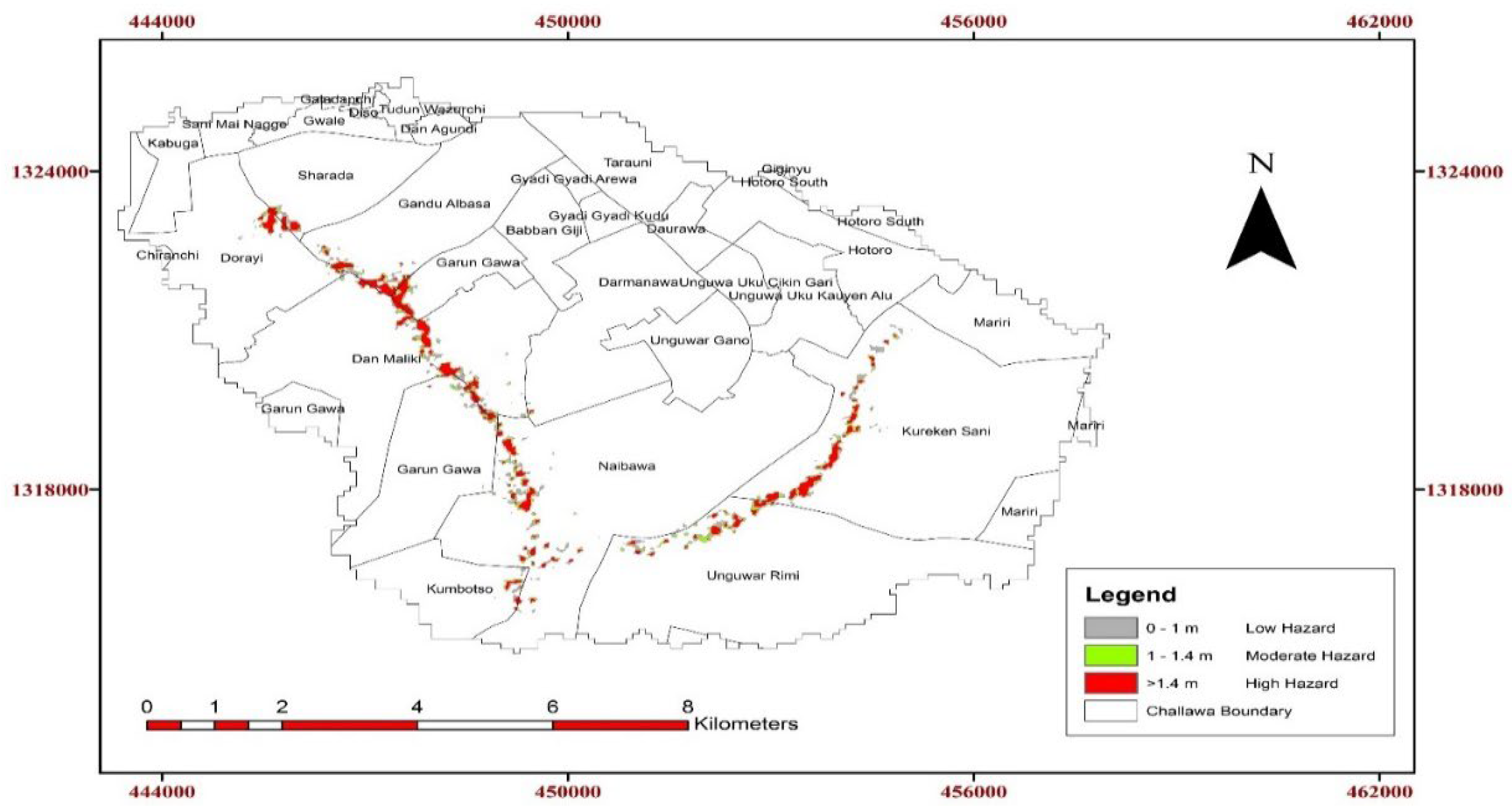

The maps of the flood hazard for 100-year return periods were produced for Challawa and Jakara basins as shown in Figure 2 and Figure 3 according to the classifications earlier described in Table 1. However, for all the return periods, the high hazard areas are located along the channel, but Jakara catchment is more prone to flood than Challawa due to higher land-use-land-cover.

3.2. Flood Vulnerability

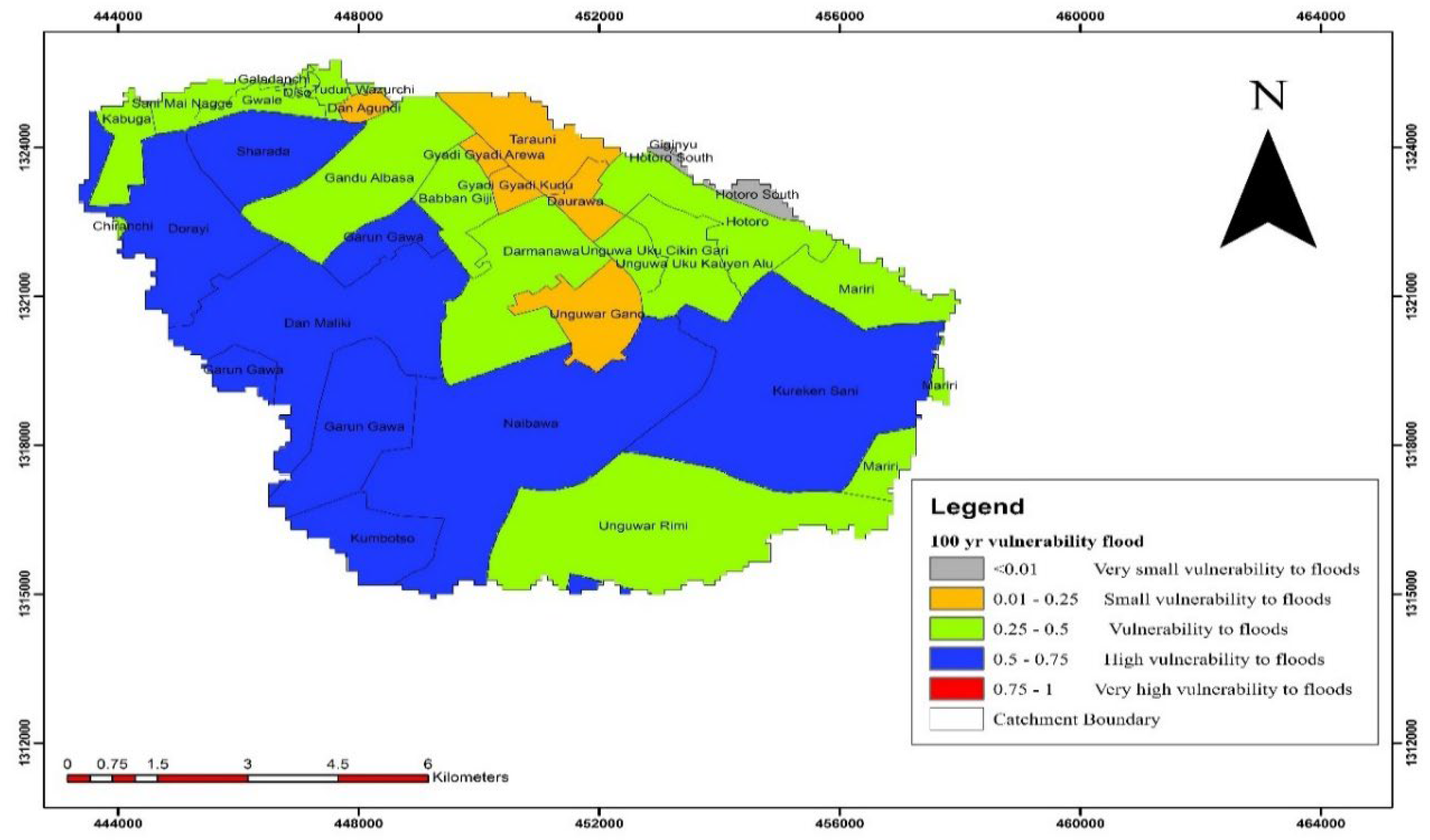

The flood vulnerability maps of 100, 50, 25, 10, 5 and 2-year floods were obtained for Challawa basin, but only the 100-year return period is shown in Figure 4.

From the 100-year flood vulnerability map, the wards with high vulnerability to flood (HVF) are mainly in Kumbotso Local Government Area of Kano State. The wards that fall within the class of small vulnerability to flood (SVF) are in Municipal and Tarauni Local Government Area, while the remaining wards are classified as moderate vulnerability to flood (MVF) and there are no wards that are classified under very high vulnerability to flood (VHVF). Carefully examining the remaining flood scenarios that is, 50, 25, 10, 5, and 2-years flood vulnerability maps, it could be observed that, the majority of the areas fall within the class of MVF

Detail flood vulnerability classifications for Challawa basin corresponding to 100, 50, 25, 10, 5 and 2-year floods are presented in Table 7. It could be observed that, the vulnerability extent and severity increase with an increase in return periods. MVF covered an area which ranges between 19.37 to 41.23 km² for 100 to 2-year return periods, whereas, HVF covered an area of 27.53 to 0 km² for 100 to 2-year return periods. There was no area under VHVF for all the scenarios considered.

Figure 5 shows the 100-year flood vulnerability map for Jakara basin. It is observed that areas that fall in the region of HVF included some parts of Municipal and Fagge Local Government Areas while the areas classified under SVF included some parts of Gwale as well as Municipal and Fagge Local Government Areas. Observing the remaining flood scenarios that is 50, 25, 10, 5, and 2-years flood vulnerability maps, it could be observed that, the majority of the remaining areas fall within the class of MVF. Detail Jakara flood vulnerability classifications and the extent of each class for the 100, 50, 25, 10, 5 and 2-year return periods are presented in Table 8.

Table 8 shows the flood vulnerability information for Jakara basin. It could be seen that VSVF covered 0.23 km² for all the return periods. MVF regions covered an area of 14.43, 17.31, 17.82, 30.16, 29.48, and 28.79 km² for 100, 50, 25, 10, 5, and 2-year return periods respectively. While HVF regions covered an area of 22.86, 19.89, 17.15, 1.67, 0.89 and 0 km² for 100, 50, 25, 10, 5, and 2-year return periods respectively. There was no VHVF region for all the return periods. The MOVE framework, used in this research, has provided information on the areas that need most intervention and facors that need to be given attention to effectively reduce existing susceptibility and increase resilience to flood exposure

3.3. Flood Risk

The area covered by each flood risk category for all the return periods is presented in Table 9 for Challawa basin. The table shows that the area affected by floods also increases as the return period increases. For a 2-year flow, low, medium and high-risk floods covered an area of 4.44, 2.57, and 0.55 km² respectively while for 100-year flood, low, medium and high-risk areas covered 5.43, 3.85 and 1.22 km² respectively. It is observed that, large percentage of the area affected by floods are mainly of low and moderate risks. The high flood risk zones are mostly areas lying along the channels.

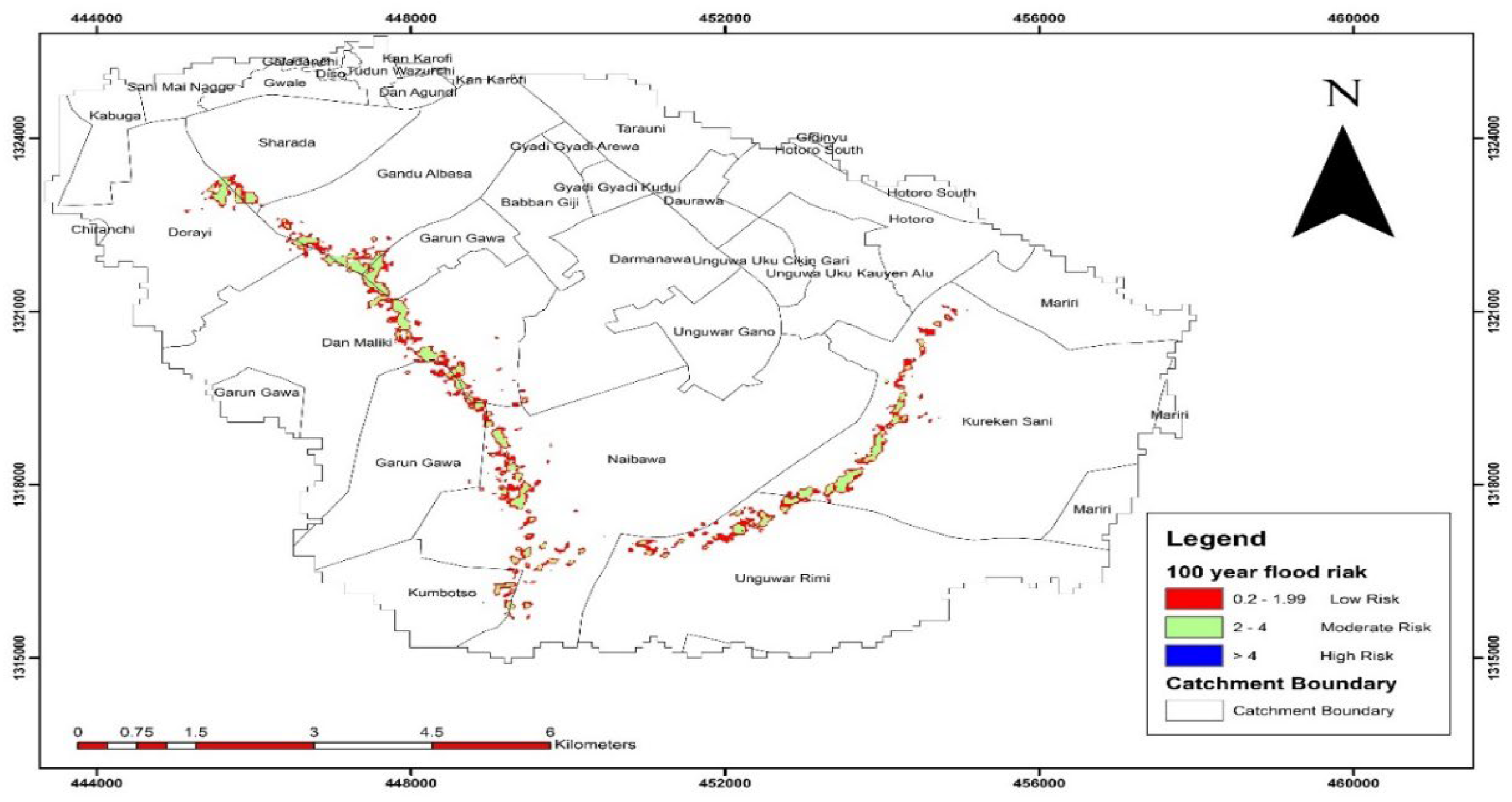

The maps of flood risk were also obtained, but only that of 100-year flood is presented as Figure 6. It could be observed that Challawa basin has mainly two categories of risk zones (moderate and low risk zones) for all the return periods, but the high-risk zones in the catchment are very small.

Table 10 shows the elements, based on LULC classification, at risk of flooding. It could be observed that the LULC at risk of 2-year flood are 3.99, 2.66, 0.88 and 0.03 km² of built-up area, bare-land, vegetation and water body respectively. Likewise, LULC at risk of 100-year flood are 4.98, 3.88, 1.54 and 0.10 km² of built-up area, bare-land, vegetation and water body respectively.

Table 11 shows the area covered by each flood risk category for Jakara basin. A 2-year flood, with low-risk, medium-risk and high-risk were covered by 5.60, 3.73 and 1.04 km² respectively, while a 100-year flood with low-risk, medium-risk and high-risk were covered by areas of 7.76, 5.17, and 1.30 km² respectively. It is also observed that, large percentage of the area affected by the floods are mainly of low and moderate risks. The high flood risk zones are mostly infrastructures built along the channels

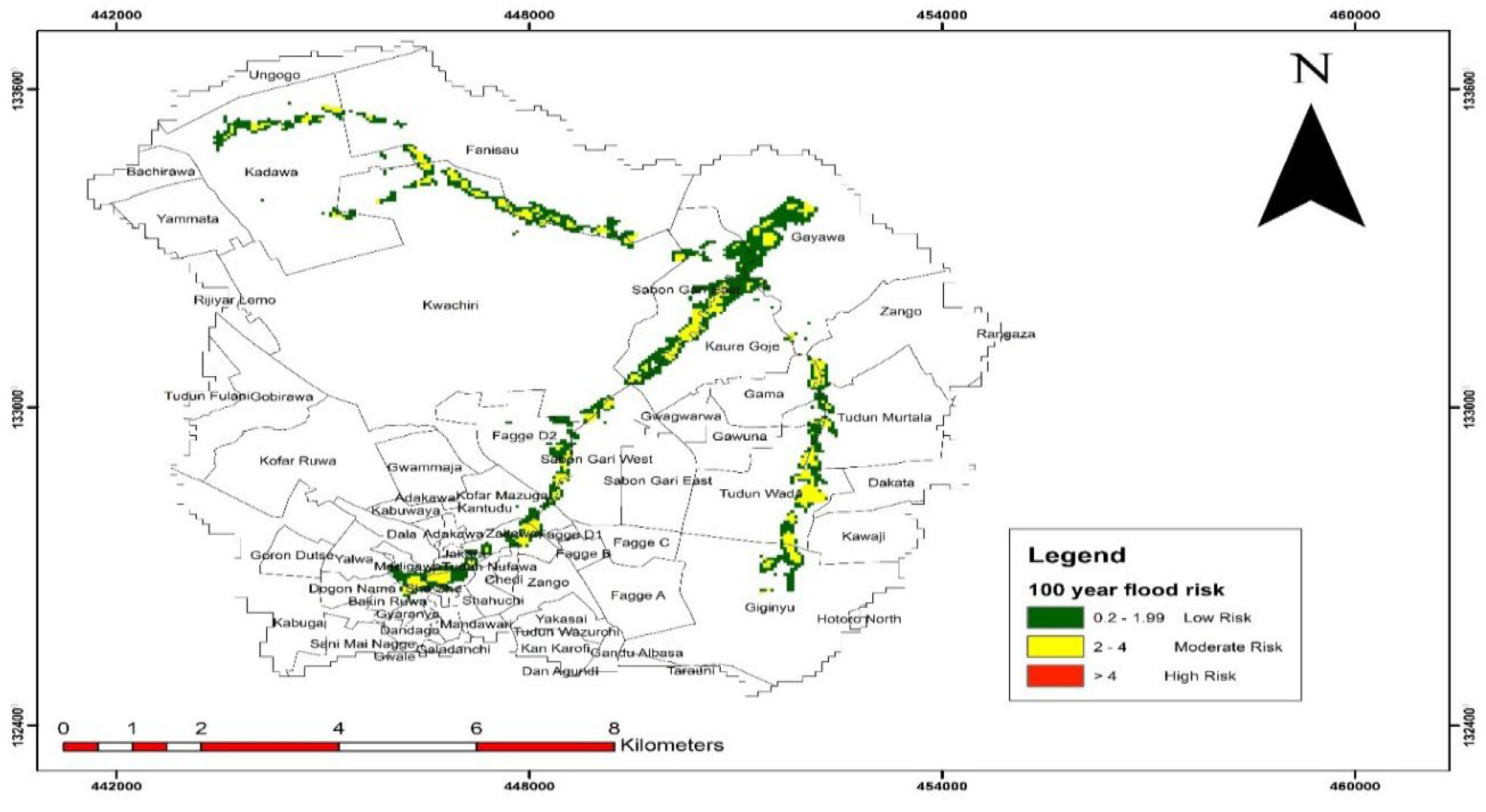

The maps of Jakara flood risks were obtained, but only that of 100-year flood is presented as Figure 7. It could be seen that Jakara basin has similar flood risk zone with Challawa basin. Table 12 also shows the elements, based on LULC classification, at risk of flooding for Jakara basin. It could be observed that the LULC at risk of 2-year flood are 4.17, 3.75, 1.87 and 0.09 km² of built-up area, bare-land, vegetation and water body respectively. Likewise, LULC at risk of 100-year flood are 6.50, 4.85, 2.70 and 0.17 km² of built-up area, bare-land, vegetation and water body respectively. The built-up area make-up the highest land cover class at risk of flooding followed by bare land. This is due to the urban nature of the basin with considerable infrastructures in place such as residential buildings, roads, schools, hospitals, etc. This agrees with findings of [42] Mukhtar (2018) who also attributed the flood in Kano to increased LULC. As the city’s population density is well over 20,000 persons per square kilometer in the highly built-up locations, this means that much more than 100,000 and 130,000 persons will be affected by flood risk in the Challawa and Jakara basins respectively.

4. Discussion

Flood has been a major source of concern arising from the huge economic losses encountered. The type of flood in Kano is pluvial and usually occurs annually during rainy seasons and affect mainly the urban areas in Nigeria. Such floods which are arguably unprecedented in recent times are caused by more frequent and severe rainfall which overwhelms the capacity of drainage systems. Nkwunonwo [23] reported that flooding occurs annually during rainy seasons, between July and October, ravaging many cities in Nigeria. Presently, the occurrence of such floods due to poor urban planning is an important issue in flood risk mitigation. The pluvial flooding occurs when rainfall-runoff, which ought to be evacuated by the drainage system, remains on impermeable surfaces and flows overland or into local depressions and topographically low areas to create temporary ponds. It mostly occurs after a short, intense downpours which cannot be evacuated quickly enough by the drainage system or seeped into the ground [44]. Built environments generate higher surface runoff, in excess of local drainage capacity, thereby causing local floods [10,45]. Intense urbanization, rapid conversion of green spaces to residential and commercial areas and neglect to town-planning and landscape conservation has resulted into the emergence of urban slums in the city which has further aggravated flood risk [46].

Climate change impacts on urban drainage systems is also known to have severe impact on urban drainage. The climate change increases the intensity of rainfall events posing a major threat to stormwater infrastructure systems [47]. Higher rainfall intensities lead to more severe storms, with expected increases in damages to urban centers. Pluvial flooding has been predicted to become more frequent due to climate change and urbanization [48]. The Kano city is extremely overcrowded which constantly threatens the city’s infrastructural management systems. Due to the population size, the sewage and waste water management system is overburdened, the drainage network system is inadequate, and there are cases of dumping of household and commercial refuse in open landfills and direct discharges to the streams and drains. Integration of urban growth and climate change scenarios into flood risk management models as proposed by researchers [49,50] could go a long way in addressing flood issues in developing countries. In the absence of climate change prediction models, flood hazard mapping using flood frequency estimates coupled flood vulnerability can serve as viable tools to address flood problems in developing countries.

5. Conclusions

Flood frequency analysis for 2, 5, 10, 25, 50 and 100-year return periods were carried out using Log Pearson Type III distribution and flood hazard and inundation mappings for Challawa and Jakara basins of Kano metropolis were developed. For the 100-year return period floods, a total area of 12.13 km² would be inundated for Challawa basin while a total area of 17.36 km² would be inundated for Jakara basin. Generally, for both catchment areas it can be concluded that, most of the flood hazard areas fall within the category of low and medium hazards, but high hazard areas are also located along the channels and districts that are prone to flooding were identified. Social vulnerability was carried out and the districts that fall within the categories of VSVF, SVF, HVF, MVF and SVF were identified and classified for return periods of 2 to 100-year floods. A total area of 50.91 and 40.56 km² were found to be affected by the different categories of vulnerabilities for the 100-year flood, but was no VHVF zone for all the return periods considered. The flood risk map for the two basins were developed, and 10.50 km² of land was affected by the risk of a 100-year flood out of which 4.98 km² is built-up area in Challawa basin. For Jakara basin, 14.23 km² of land area was affected out of which 6.50 km² is a built-up area. As the city is densely populated, with a population density of well over 20,000 persons per square kilometer in the highly built-up locations, this means that much more than 230,000 persons will be affected by flood risk in the two basins.
