Study on the Microscopic Mechanism of Supercritical CO₂ and Active Water Alternating Flooding in Tight Oil Reservoir

1. Introduction

Low permeability and pressure droop are the main factors affecting oil recovery in tight sand oil reservoirs. Due to the characteristics of carbon dioxide, which can mix with oil and reduce its viscosity, carbon dioxide flooding has played an important role in sand oil reservoirs [1,2,3,4]. Carbon dioxide flooding is advantageous due to its non-miscible injection mode, which indicates that the injection pressure is less than the minimum miscible pressure; mixing injection mode, in which the injection pressure is greater than the minimum mixing pressure; and supercritical carbon dioxide injection mode, where the pressure and temperature are higher than the critical temperature and critical pressure in the carbon dioxide system [5,6,7]. In the process of supercritical carbon dioxide flooding, it is necessary to ensure that supercritical carbon dioxide can fully contact crude oil. Determining the distribution of crude oil in reservoirs is of great significance in discovering the mechanisms of carbon dioxide flooding. Generally, the oil remaining in the reservoir after water flooding exists in three forms [6,8,9]: (1) the oil droplet is surrounded by water in the pore, as is common in hydrophilic rocks; (2) the oil is adsorbed on the rock surface, which is common in oil-philic rocks; and (3) these two conditions coexist, which is common in miscible wetted rocks [10].

To date, many scholars have conducted experimental studies on the water resistance effect in water injection development. The results indicate that under high water saturation conditions, water resistance has a significant impact on the remaining oil saturation. Meanwhile, the wettability of rock has a great effect on the oil recovery in tight oil reservoirs [11]. In water wetted rock or miscible wetted rock, oil recovery was quite low [12,13]. Changing the wettability of rock surfaces by alternating CO₂ water and gas flooding can effectively improve oil recovery. The contact angle measurement experiment also confirmed this conclusion [14,15]. Obviously, the change in the wettability of rock surfaces remains an unresolved issue which is mainly affected by the rock properties, differences in composition, and type of reservoir fluid, and the chemical reaction between the reservoir rock and fluid during or after carbon dioxide injection [16,17]. Meanwhile, the water mass in water-wet dense sandstone is very different from that in the CO₂–water alternating flooding process. The results show that CO₂ flooding is much more efficient than three-times oil recovery. Meanwhile, the increase in oil recovery rate during secondary oil recovery is mainly attributed to the reduction in water mass [17,18,19]. In addition, the precipitation of organic matter generated during CO₂ flooding can significantly impact the CO₂ flooding effect [20]. The results showed that CO₂ flooding induced a serious amount of asphaltene precipitation, which was significantly related to the liquid–liquid equilibrium but not to the bubble point pressure of the system [21]. Meanwhile, CO₂-generated organic matter precipitation alters the wettability of the rock, making it more oil-wetted. Experiments have demonstrated that resin and paraffin precipitate from crude oil, and organic matter precipitation promotes mass transfer during miscibility, with no significant organic matter precipitation after miscibility [22,23]. The amount and composition of carbon dioxide-induced organic matter precipitation is influenced by small- and medium-molecular-weight paraffins in the crude oil. When the asphaltene content in crude oil exceeds 4.6%, the reservoir rock will change from water-phase wetting to oil-phase wetting, thus reducing the oil recovery rate [23]. Asphaltenes in crude oil were found to be unstable in carbon dioxide and hydrocarbon gases but stable in reservoir fluids at reservoir temperatures. It was also shown that although asphaltene precipitation occurred during carbon dioxide charging, there was no clogging problem because the asphaltene particles were much smaller than the pore throat. Therefore, the permeability of the reservoir rock does not decrease significantly after CO₂ charging. During supercritical carbon dioxide charging, physicochemical reactions between the reservoir crude oil, formation water, carbon dioxide and reservoir rock occur, resulting in changes in the permeability, pore throat radius and other properties of the reservoir rock. The changes in the reservoir pore throat and permeability are mainly caused by mineral dissolution and asphaltene precipitation of reservoir rocks. The dissolution of rock minerals increases the porosity and permeability of reservoir rocks, while the precipitation of asphaltenes leads to a decrease in reservoir rock porosity and permeability [24]. During CO₂ flooding, an increase or decrease in reservoir rock permeability mainly depends on the distribution of reservoir rock minerals. CT monitoring of CO₂ injection shows that the porosity and permeability of reservoir rocks increase at the initial stage of CO₂ injection, but with continuous injection, the porosity and permeability of reservoir rocks decrease at a low injection rate [25]. When the salinity of formation water is low, the porosity and permeability of reservoir rocks decrease slightly. The decrease in permeability of reservoir rocks is mainly attributed to two mechanisms: (1) the accumulation of small particles such as asphaltene in large pore channels, reducing the flow area of the pore throat; and (2) the blockage of small pore channels by large particles of asphaltene, which reduces the number of flow channels[8,26].

Existing theoretical research on CO₂ flooding has mainly focused on organic matter precipitation caused by CO₂ flooding, while few studies have been conducted on the utilization of petroleum in different pore throats. In addition, although the concept of alternating carbon dioxide and water flooding has been proposed, its effectiveness has not yet been evaluated and analyzed. This article proposes a new effective flooding mode which uses alternating supercritical CO₂ and active waterflooding to improve oil recovery in tight oil reservoirs. Experimental results of conventional water flooding, active water flooding and CO₂ flooding were used to verify the effectiveness of the proposed mode. By combining nuclear magnetic resonance (NMR), the oil remaining in pores was analyzed to characterize the utilization of crude oil by different pore throats, and a downward trend in CO₂ flooding technology was determined. The micro mechanism of CO₂ oil displacement at the micro scale was also revealed. Solving this problem are of great significance for improving the CO₂ flooding effect and proposing new approaches for secondary oil recovery.

2. Experimental Equipment and Design

2.1. Experimental Samples

A core with a length of 30cm and a diameter of 2.54cm was drilled; two cores with similar permeability and properties comprised a 60cm long core column. The average permeability of the man-made cores was measured using N₂ to ensure that the rock permeability showed the same tendency for the target. Taking the Mahu 1 oilfield as the research object, formation water was composed based on its ion composition and salinity (Table 1). Activated water was prepared using 20% betaine and 80% heavy alkylbenzene sulfonate. The experiment was conducted under constant temperature and pressure of 100 ℃ and 40MPa, respectively.

2.2. Experimental Equipment

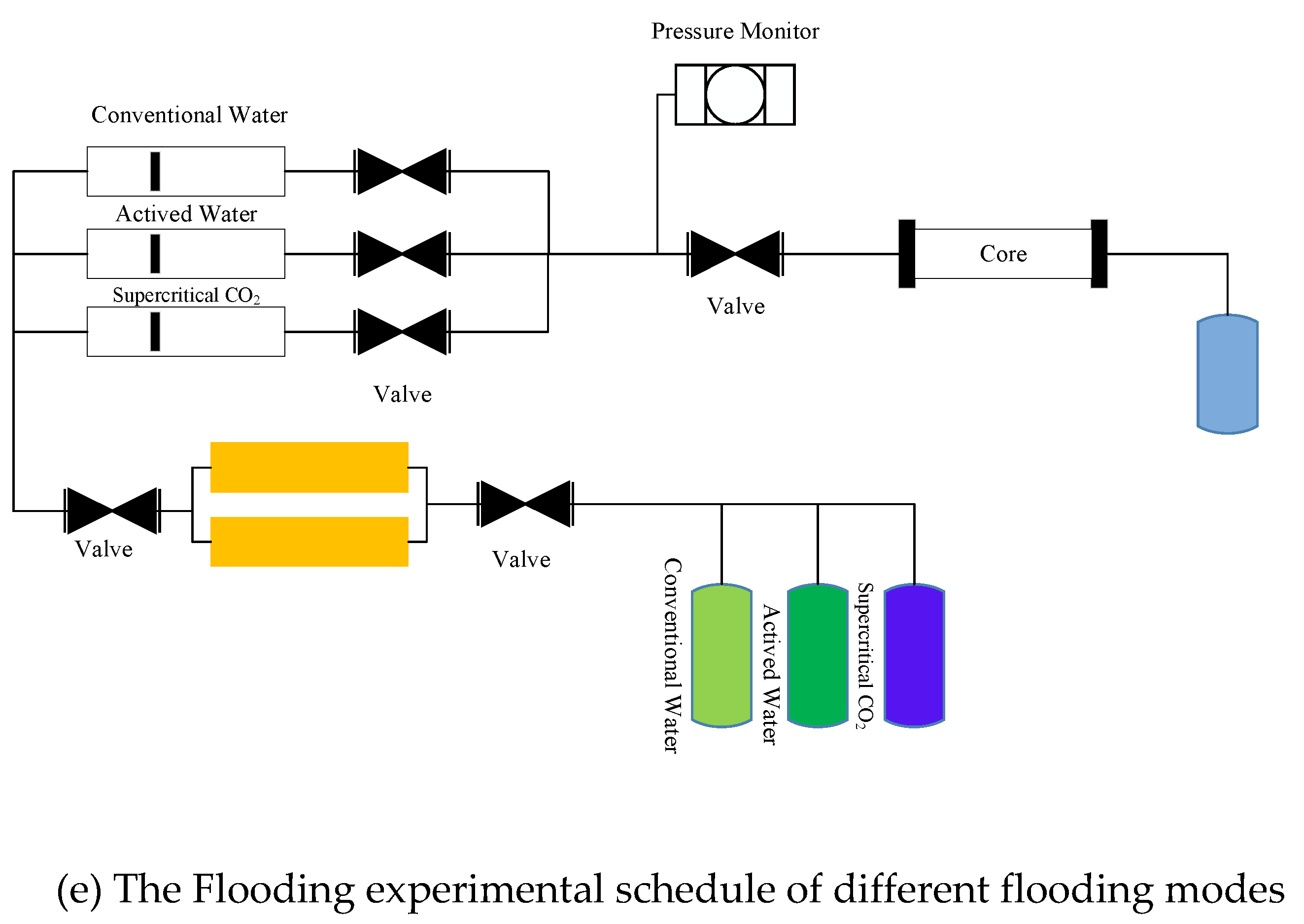

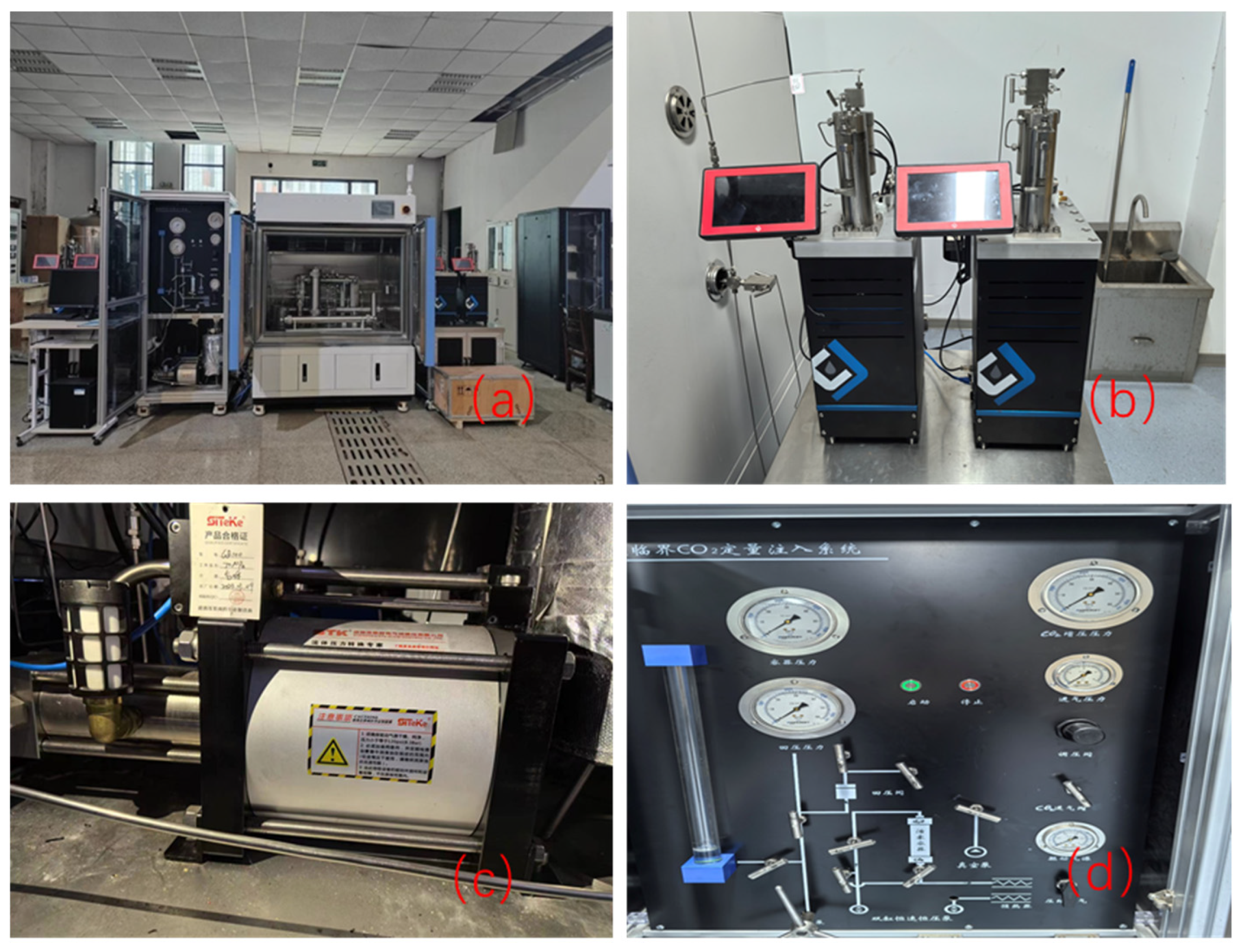

The experimental devices (Figure 1) used included a high-temperature and high-pressure displacement experimental device, which was used to measure reservoir recovery during gas flooding and water flooding; and a constant-temperature and pressure pump with an accuracy of 0.0001ml/min, which was used to saturate water and oil at an early stage and provide a constant flow during the entire stage. A gas pressurization device was used to guarantee stable pressure in the CO₂ cylinder. During the experiment, the injection pressure was 40.0MPa and the experimental temperature was 100 ℃. A constant flow rate of 0.1ml/min was applied, and the injection pressure was 26.5MPa, which was higher than the miscible pressure.

2.3. Experimental Procedure

To characterize the effect of CO₂ + active water alternating flooding on oil recovery in tight oil reservoirs in depth and to verify the effectiveness of the proposed flooding mode, existing flooding modes were evaluated in four experiments, and CO₂ + active water alternating flooding was simulated in a final experiment. Based on these experiments, the mechanism of CO₂ flooding at the micro-scale was discovered. Table 2 lists the properties of the cores used in the experiments.

Five different experiments using water flooding, active water flooding, CO₂ flooding, water+CO₂ alternating flooding（WAC）and active water+CO₂ alternating flooding (AWAC) were conducted. During the oil flooding experiments, a water content over 98% meant that the flooding process had been terminated. Meanwhile, the three different flooding modes, namely conventional water flooding, active water flooding and supercritical CO₂ flooding, were applied using Samples 1, 2 and 3. Samples 4 and 5 were used for water and supercritical CO₂ alternating flooding and active water with supercritical CO₂ alternating flooding, respectively. During the experiments, the total flooding volume was 0.8 PV. The detailed flooding schedule is provided in Table 3.

3. Experimental Results

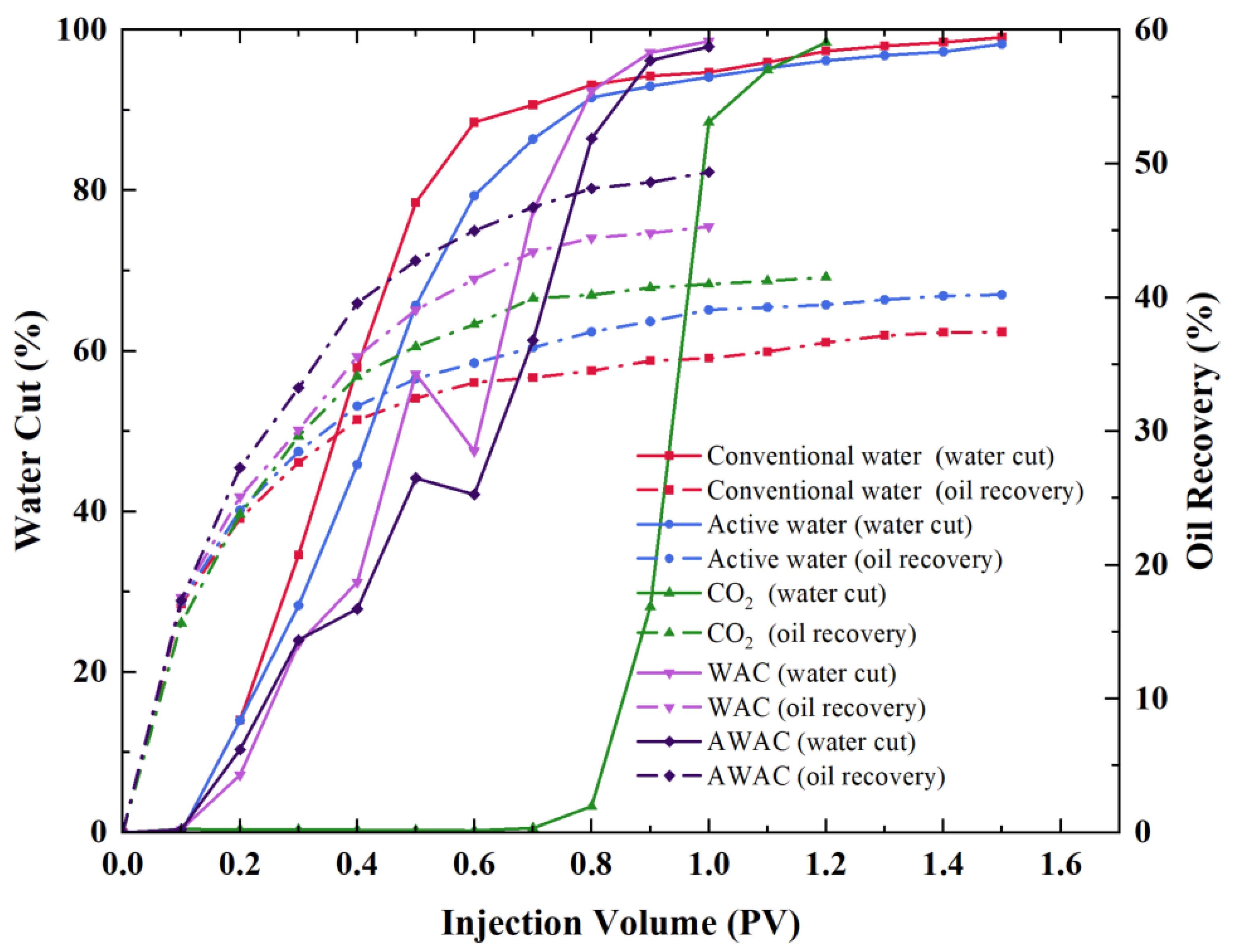

Figure 2 shows the change in water cut and oil recovery under different oil flooding models. During water flooding, the oil recovery increased from 0 to 34.52 % when the injection volume increased from 0 to 0.8 PV. When the injection volume increased from 0.8PV to 1.5 PV, oil recovery increased from 34.52% to 37.42%, which was an increase of 10.81%, while the water cut increased from 93.15% to 99.06%, representing an increase of 12.40%. Taking an injection volume of 0.6PV as a boundary, when the injection volume was less than 0.8PV, the water cut and recovery curves increased sharply. When the injection volume exceeded 0.8PV, the incremental rate of the water cut and recovery curves decreased significantly. For active water flooding, when the active water injection was less than 0.6PV, the recovery rate increased rapidly from 0 to 37.42%, and the water cut increased obviously from 0 to 91.54%. With continuous injection, when the injection amount of active water reached 1.4PV, the recovery rate increased to 40.21%, and the water cut increased to 98.22%. Compared with production at 0.6PV, the recovery increased by 12.11%, and the water cut increased by 23.02%.

Subsequently, the effect of supercritical CO₂ flooding was analyzed. The experimental results indicated that when the injection volume was less than 0.8PV, there was almost no water in the produced fluid, and the recovery rate was 37.42%. When the injection volume exceeded 0.8PV, the water cut increased obviously. At the end of flooding, the oil recovery reached 41.5%, while the water cut increased to 98.42%.

Table 3. Comparison of Water cut and Oil recovery under different flooding modes.

Flooding Mode	Water Cut/%	Oil Recovery/%
Conventional water flooding	99.06	37.42
Active water flooding	98.22	40.21
supercritical CO2 flooding	98.42	41.5
supercritical CO2+ conventional water flooding	98.58	45.29
supercritical CO2+ Active water flooding	97.89	49.35

Table 3. Comparison of Water cut and Oil recovery under different flooding modes.

Flooding Mode	Water Cut/%	Oil Recovery/%
Conventional water flooding	99.06	37.42
Active water flooding	98.22	40.21
supercritical CO2 flooding	98.42	41.5
supercritical CO2+ conventional water flooding	98.58	45.29
supercritical CO2+ Active water flooding	97.89	49.35

In order to further understand the effect of alternating injection on oil displacement, two sets of experiments were designed, namely supercritical CO2+water alternating flooding and supercritical CO2+active water alternating flooding. It can be seen that when the injection rate of supercritical CO2+ active water alternating flooding was less than 0.6PV, the recovery rate increased from 0 to 40.82%. When using conventional water injection to inject 1.0PV, the recovery rate slowly increased from 40.82% to 44.07%, an increase of 7.96%, while the water content rapidly increased from 47.07% to 97.98%, an increase of 108.15%. When injecting supercritical CO2 and active water alternately, the recovery rate increased from 0 to 44.40% when less than 0.6 PV of supercritical CO2 and active water was injected. When using conventional water injection to inject 1.0PV, the recovery rate slowly increased from 44.40% to 48.74%, an increase of 9.77%. The moisture content rapidly increased from 41.87% to 97.84%, an increase of 133.68%.

Comparing Samples 1 and 2, it can be found that at the same injection amount (0.8PV), compared with water injection, the oil recovery rate increased from 31.337% to 34.68%, and the water content decreased from 88.27% to 78.64%, which is a decrease of 9.76%. For supercritical CO₂ flooding, compared with water flooding, the recovery rate increased from 33.97% to 38.75%, which is an increase of 16.44%. Throughout the entire supercritical CO₂ oil recovery process, the water content was almost zero, indicating that supercritical CO₂ reservoirs can not only effectively improve oil recovery but also effectively reduce the water content in the produced fluid, achieving the goal of "controlling water and increasing oil production" in oilfield development. Comparing Samples 1, 3, and 4, it was found that during the oil displacement process with alternating water and supercritical CO₂, the recovery rate was 40.82% when the injection amount reached 0.8 PV. Compared with Samples 1 and 3, the oil recovery rate increased by 23.80% and 6.75%, respectively, while the water content decreased by 46.09% compared to Sample 1. This indicates that alternating supercritical CO₂ and water flooding can not only effectively improve oil recovery but also effectively reduce the water content caused by the rapid advance of the water front during water injection. Comparing Samples 2, 3, and 5, it was found that when the injection volume reached 0.6PV, the recovery rate increased by 27.29% and 16.08%, respectively, compared to active water injection, while the water content decreased by 47.29%. This experiment not only verified the effectiveness of alternating active water and supercritical CO₂ oil displacement but also showed that this approach both effectively improves oil recovery and effectively reduces the water content caused by the rapid advance of the water front during water injection.

In order to further understand the effect of alternating injection on oil flooding, two groups of experiments were designed: supercritical CO₂ + water alternating flooding and supercritical CO₂ + active water alternating flooding. The experimental results indicated that supercritical CO₂ + active water alternating flooding was an effective method of improving oil recovery. When the total injection amount was 0.6PV, the oil recovery sharply increased to 41.22%. When conventional water flooding was adopted to inject 1.0PV, the recovery rate increased slowly from 40.82% to 44.07%, with an increase of 7.96%, while the water cut increased rapidly from 47.07% to 97.98%, with an increase of 108.15%. When supercritical CO₂ and active water were injected alternately, it can be seen that when less than 0.6PV of supercritical CO₂ and active water was injected, the recovery rate increased from 0 to 44.40%. When conventional water flooding was used to inject 1.0PV, oil recovery a slowly increased from 44.40% to 48.74%, increasing by 9.77%, while the water cut jumped to 97.84% from 41.87%, approaching the termination conditions of the experiment.

The experimental results of Samples 1 and 2 showed that active water flooding has obvious advantages compared with conventional water flooding. When the total injection volume was 0.8PV, oil recovery increased to 34.88% when active water flooding was used, while the oil recovery was only 30.64% for conventional water flooding. In addition, it should be noted that the water cut decreased when active water was used, with a water cut of 79.61%, while the water cut for conventional water flooding was 87.94%, increasing by 10.27%. When the injection volume of supercritical CO₂ reached 0.8PV, oil recovery saw a continuous increase to 38.77% compared with water flooding, an increase by 16.01%. The use of supercritical CO₂ can also delay the water cut increase. When the amount of supercritical CO₂ was below 0.8PV, the water cut was low, approaching zero. Thus, supercritical CO₂ flooding can not only increase the oil produced but can also be used to control water production during oil production. Due to the difficulty of mutual dissolution between carbon dioxide and formation water in the reservoir, the Jamin effect took place, which increased the resistance of formation water seepage. When conventional water with supercritical CO₂ alternating flooding was simulated, the oil recovery increased to 45.29% when the injection amount was 0.8PV. Comparing conventional water flooding, active water flooding and supercritical CO₂ flooding, conventional water with supercritical CO₂ alternating flooding showed a greater role in controlling water production. When the injection amount reached 0.8PV, the water cut was only 64.27%, decreasing by 26.91% and 19.27%, which indicated that the propulsion speed of the water drive leading edge was significantly reduced due to the enhanced Jamin effect. For active water and supercritical CO₂ alternating flooding, the oil recovery saw a further increase to 49.34%, while the water cut was only 59.47% when the injection amount reached 0.8PV. From the comparison above, it can be concluded that alternating flooding of active water and supercritical CO₂ played a great role in increasing oil recovery and controlling water production, which can effectively reduce the propulsion speed of the water drive leading edge because of the enhanced Jamin effect.

4. Discussion

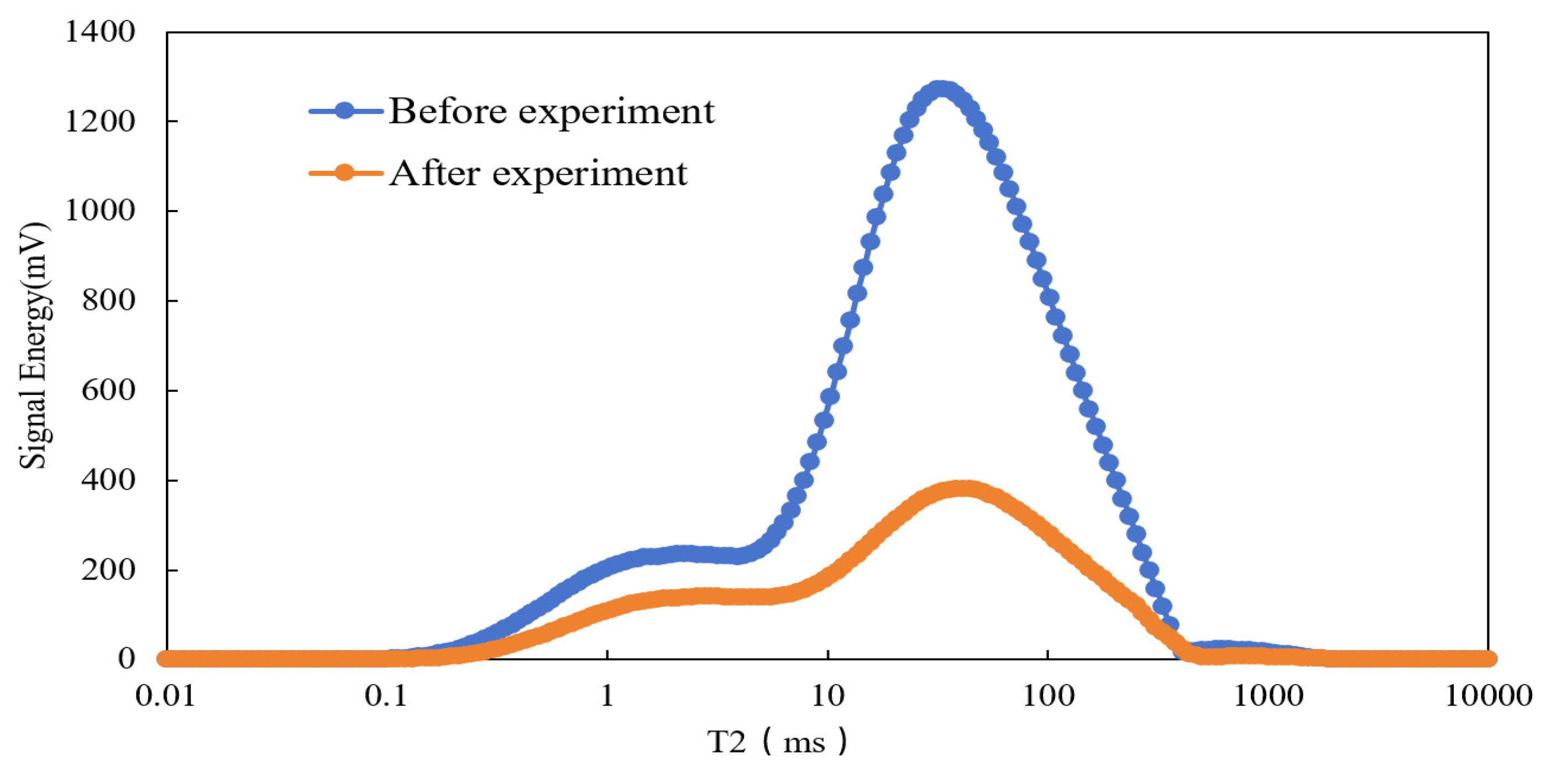

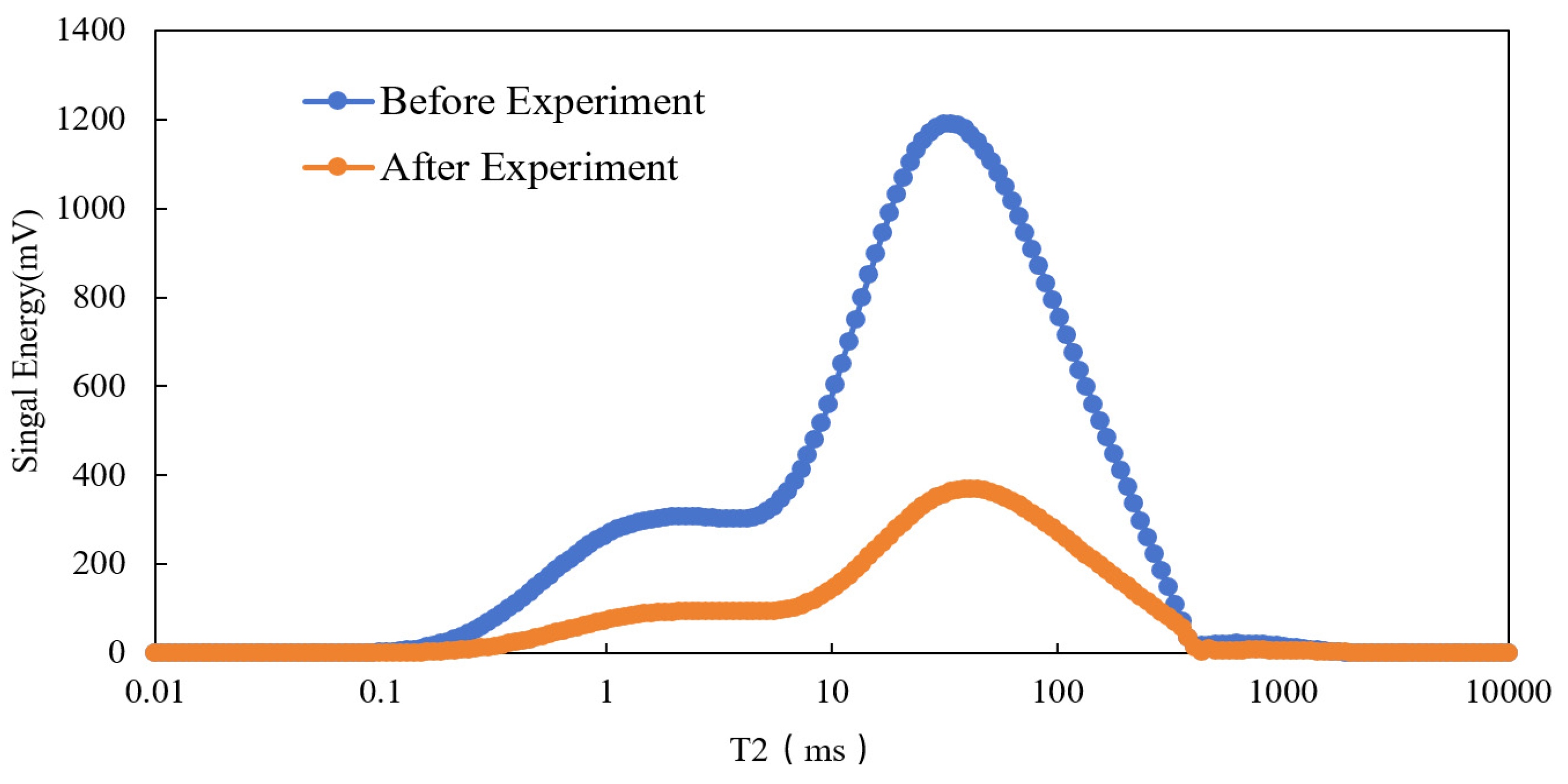

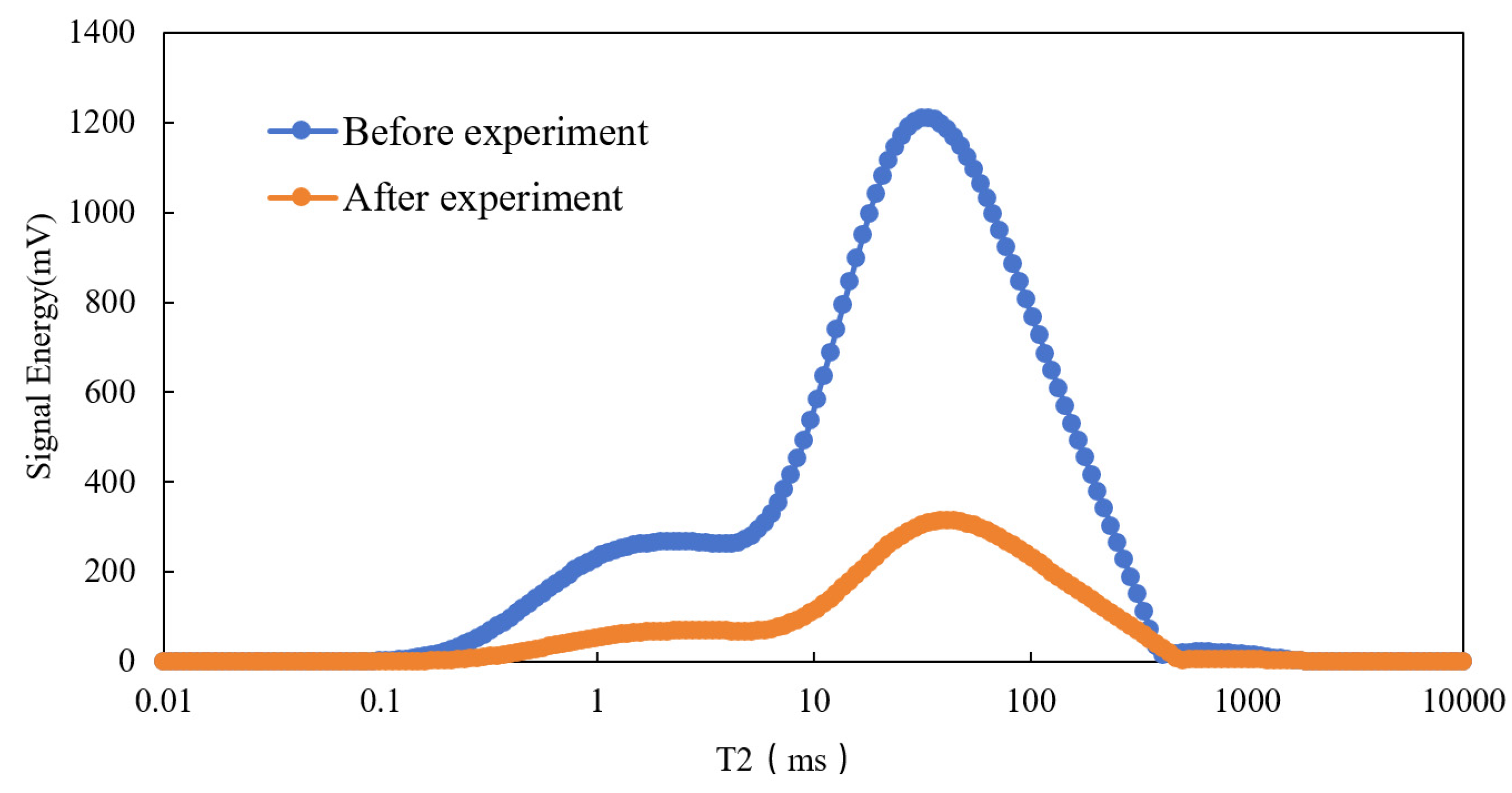

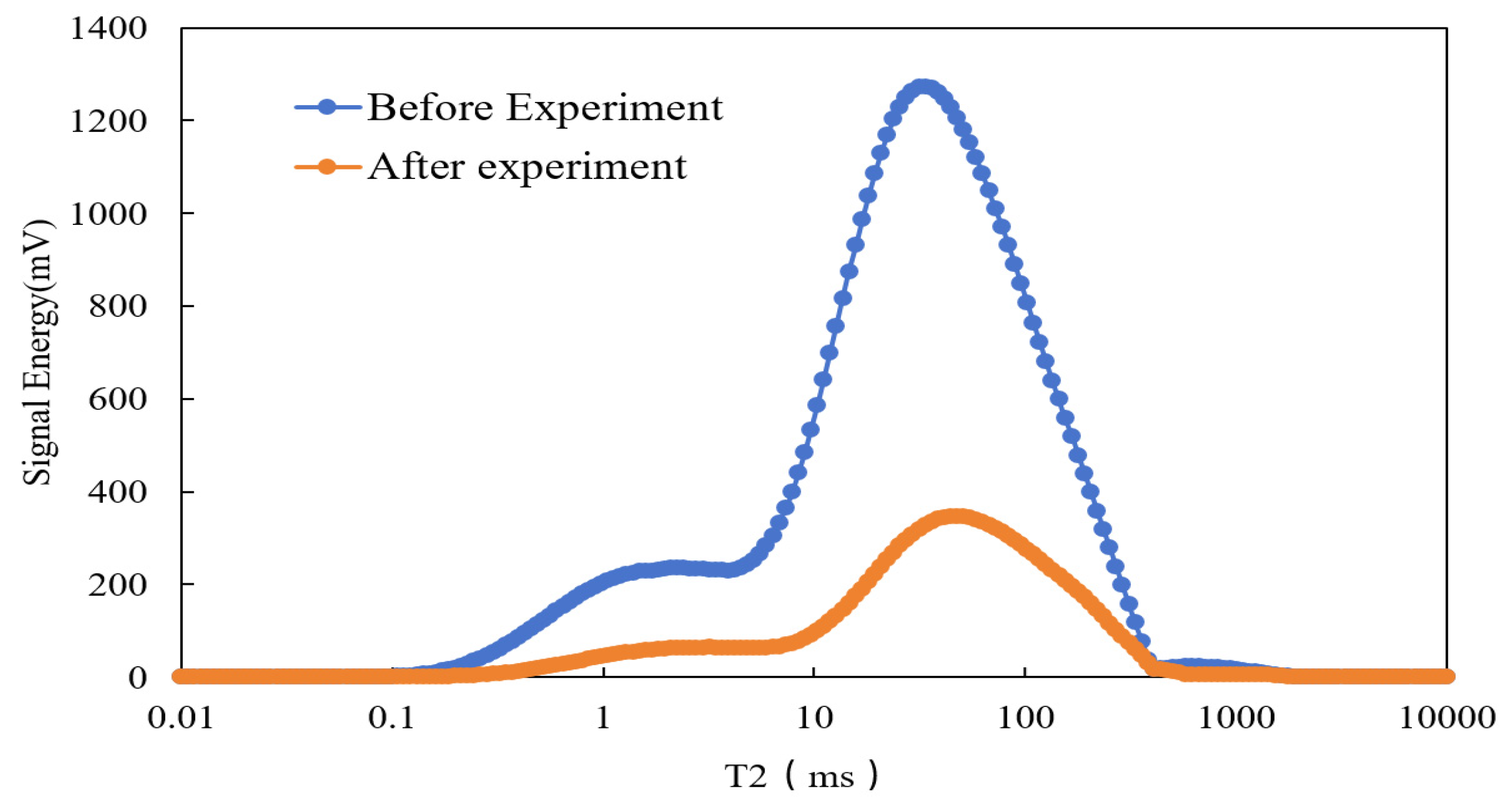

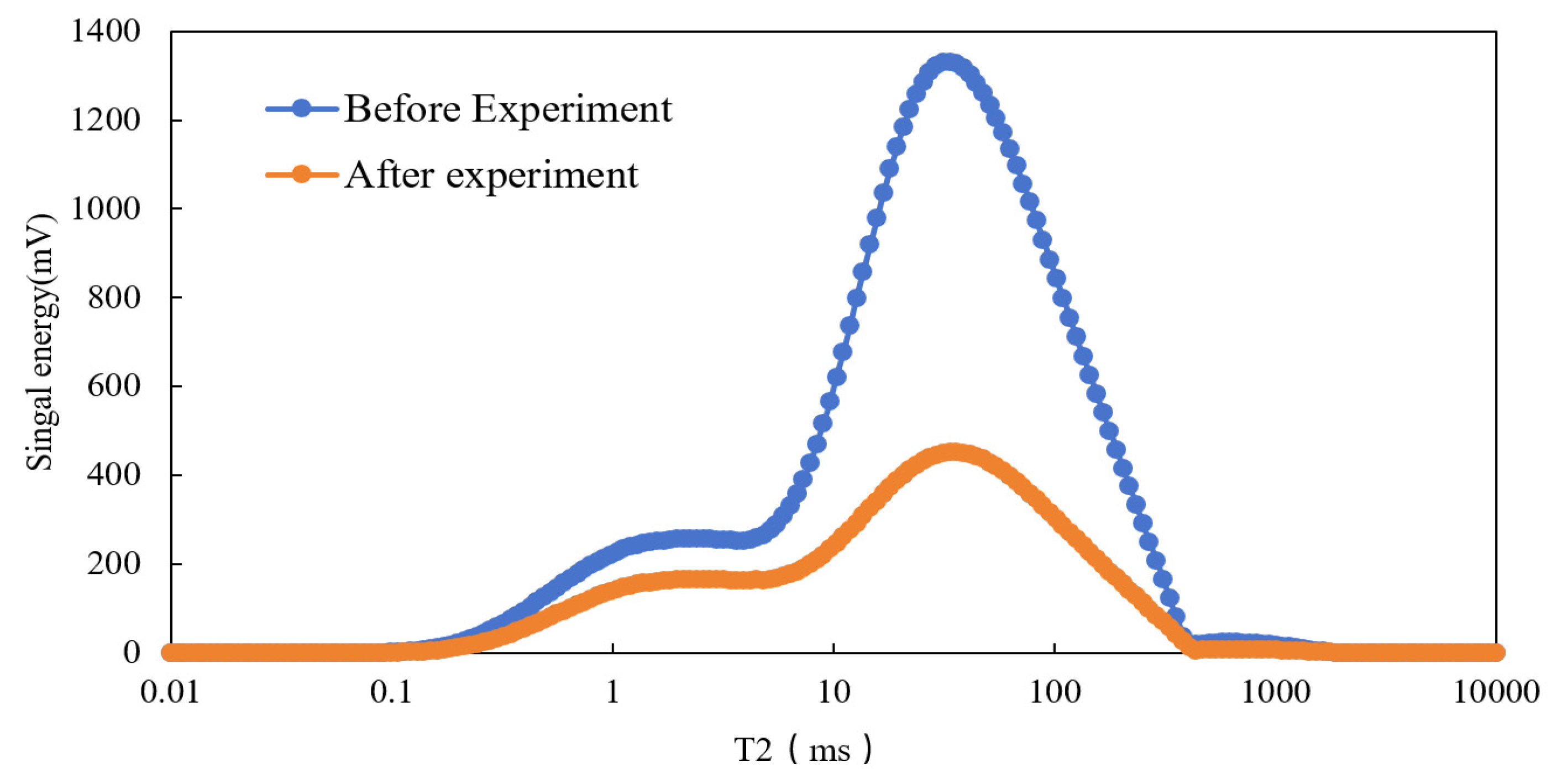

In order to reveal the microscopic mechanism of oil displacement in ultra-low-permeability reservoirs, nuclear magnetic resonance (NMR) tests were conducted on the core samples from the five experiments after oil displacement, and the fluid distribution at different stages was analyzed. As shown in Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7, the T2 spectra of the five saturated single-phase fluid cores indicated that the relaxation time of the peak pore size was between 1 and 600ms, which meant that the microporous structure of the core samples from the five experiments had the same tendency. The effect of pore structure and water saturation on the experimental results can be ignored. Based on a water drive recovery rate of 30.64%, the active water drive recovery rate increased by 7.02%, the CO₂ drive recovery rate increased by 13.27%, the CO₂ and water alternating drive recovery rate increased by 20.50%, and the CO₂ and active water alternating drive recovery rate increased by 33.23%.

In the left peak of the T2 spectrum of the five samples, there is no change in the partial porosity component before and after displacement, but the position of the change in the porosity component of the left peak of the T2 curve differs under different displacement modes. Because the relaxation time (T2) is related to the pore radius (R_C), it is necessary to convert the relaxation time into the pore radius R_C for further analysis of the influence of different displacement modes on oil recovery in different pore diameters.

Combined with the NMR results, the porosity distribution of the matrix under different pore throat radii can be obtained by removing the pore distribution of fractures, as shown in Figure 8. According to Figure 8, the pore throats range from 0.001 to 10m and can be divided into four interval types: type I (0.001-0.01 m), type II (0.01-0.1 m), type III (0.1-1.0 m), and type IV (1.0-10 m). Furthermore, the variation in fluid controlled by different pore throat radii can be studied, and the oil utilization in pores controlled by different pore throat radii can be calculated.

By calculating the oil utilization of different pore throats, the following conclusions can be drawn.

(1)

Comparing the initial and remaining oil saturation shows that the initial oil saturation was influenced by the pore structure; oil was mainly distributed in the pore throat range of 0.1-1.0 μm, and oil in the pore throat range of 0.001-0.01 m was rare. After the displacement process, the remaining oil saturation in all pore throats was up to 6.0% lower than the irreducible water saturation, which indicates that using supercritical CO₂ and active water can effectively improve oil displacement.

(2)

Comparing the different types of pore throats, the utilization of pore throats in five rock samples shows consistency. The highest utilization was found for type III (0.1-1 µm), followed by type IV (1-10 µm), type II (0.01-0.1 µm) and type I (0.001-0.01 µm).

(3)

In terms of oil recovery, the active water flooding recovery is 39.14%, while the water flooding recovery is 36.58%, having increased by 7.01%. The greatest increase in active water flooding was achieved for pore throat type II (0.01-0.1 m), with an increase of 5.48%, followed by type IV (1.0-10.0 m), with an increase of 3.36%. This shows that active water flooding can effectively improve the displacement effect in the pore throat range of 0.01-0.1 µm.

(4)

Comparing CO₂ flooding with water flooding, it was found that supercritical CO₂ can increase oil recovery by 13.26%. Supercritical CO₂ had the most obvious effect on pore throats of 0.001~0.01µm, with an increase of 9.25%, followed by type II (0.01~0.1 µm) pore throats, with an increase of 8.30%. This indicates that supercritical CO₂ flooding can effectively improve oil recovery in pore throats of 0.001~0.1µm.

(5)

Comparing water+CO₂ alternating flooding, active water+CO₂ alternating flooding, and water flooding, the highest utilization of water+CO₂ alternating flooding occurs in pore throats in the 0.001~0.01µm range, while when using active water+CO₂ alternating flooding, a corresponding recovery process of different types of pore throats is found. This shows that the oil displacement effect is primarily improved by active water flooding in pores with a throat radius of 0.01~0.1 m, while supercritical CO₂ flooding can effectively improve oil recovery in pore throats of 0.001~0.1µm.

5. Conclusions

Based on core displacement experiments, five different oil displacement modes were simulated, namely water flooding, active water flooding, supercritical CO2 flooding, water+CO2 alternating flooding, and active water+CO2 interactive flooding. The micro displacement mechanism of low-permeability reservoirs was revealed through nuclear magnetic resonance detection. The following conclusions can be drawn:

(1)

Compared with water flooding, active water flooding, supercritical CO₂ flooding, water+CO₂ alternating flooding, and active water+CO₂ staggered flooding, the experimental results suggest that active water with CO₂ alternating flooding shows great advantages in increasing oil recovery and decreasing water production. The experiments showed that the oil recovery increased by more than 16.4%, while the water cut decreased by 37.8%, which can effectively reduce the propulsion speed of the water drive leading edge due to the enhanced Jamin effect.

(2)

Nuclear magnetic resonance detection under five different displacement modes showed consistency in the utilization of pore throat oil among the five different displacement modes. The highest utilization rate was in type III (0.1~1 µ m), followed by types IV (1~10 µ m), II (0.01~0.1 µ m), and I (0.001~0.01 µ m).

(3)

Comparing the oil utilization of pore throats under different displacement methods, it was found that active water injection can effectively improve the oil recovery rate of 0.01~0.1 µ m pore throats, while supercritical CO₂ displacement can effectively improve the oil recovery rate of 0.001~0.1 µ m pore throats. At the same time, it was found that conventional water+CO₂ alternating flooding can effectively improve the oil recovery effect of I-type pore throats, while active water+CO₂ alternating flooding can effectively increase the recovery rate of different types of reservoirs.
