Modeling of Reverse Curves on a Railway Line Using the Analytical Design Method

1. Introduction

In the field of railways, the greatest interest is currently focused on high-speed railways (e.g., [1,2,3,4,5]). Numerous studies are also conducted on rolling stock and its maintenance (e.g., [6,7,8]. In the field of railway superstructure, the issue of interactions between the rail vehicle and the track system is being developed on a large scale (e.g., [9,10,11,12,13]).

When it comes to designing track layouts, there is a growing belief that conducting research on this topic is currently of lesser importance. This is undoubtedly due to the fact that for many years, design documentation for railways has been developed using commercial computer software [14,15]. While such work is certainly being conducted [16,17,18,19], its scope is often limited to specific issues such as transition curves [20,21,22,23] or railway turnouts [24,25,26,27].

Due to competitive conditions with other transportation systems, newly constructed railway lines are generally designed to accommodate increased train speeds; in fact, a significant portion of them are high-speed lines. However, the railway industry has a very long history. In terms of length, traditional lines, mostly built in the 19th century and still in operation today, still dominate. Undoubtedly, these lines would need to be adapted to modern requirements. This is particularly true for railway lines running through challenging terrain (e.g., mountainous terrain), which feature small horizontal arc radii and controversial geometric configurations, such as compound curves and reverse curves. Improving the quality of these lines, leading to increased travel speeds, requires appropriate modernization activities. Meanwhile, these lines seem to be disappearing from the research field.

This article addresses the design of reverse curves, a geometric arrangement consisting of two consecutive circular arcs (usually with different radii), oriented in opposite directions and directly connected. These curves have existed since the dawn of railway engineering, but they pose specific operational problems due to the rapid changes in curvature that occur. Subsequent advances in computational technology have also addressed them to a lesser extent. The design of reverse curves differs from other geometric arrangements in its level of complexity. From a scientific perspective, there is relatively little interest in this problem; rather, the practical aspects of the issue are exposed [28].

The goal was also to be able to recreate (i.e., model) the existing geometric system with reverse arcs, so that the horizontal ordinates in the area where the circular arcs connect could be corrected. An effective design method needed to be developed that could be used not only to determine the coordinates of the new reverse curve but also to model the existing system (with a view to its subsequent modification).

It should be noted here that an analytical method for designing reverse arcs had already been developed and presented in [29]. It involved a model solution, i.e., creating a geometric system from scratch in which reversely directed circular arcs of different radii are connected by an appropriate transition curve. The classic reverse arc, in which the transition curve does not occur, was a special case in this method. Modification of the existing geometric system was not considered. However, it seems that this is most often the real problem to be solved.

In this paper, the solution to the problem is achieved analytically. The standard procedure of the analytical design method requires operating in a local coordinate system. In its initial versions [30,31,32], it was characterized – in the initial phase – by a lack of knowledge of the origin of this system relative to the corresponding global coordinate system (in Poland – with respect to flat coordinates – this is the national spatial reference system PL-2000 [33]). Full integration of both systems requires the design procedure to be carried out in the local coordinate system until the very end. The location of the origin of this system relative to the corresponding main point of the route, and its resulting coordinates in the global coordinate system, were determined only in the final phase of the procedure. This could have been the fundamental methodological objection to the discussed design method. For this reason, certain interpretation problems could also arise.

As it turns out, these difficulties can be avoided by locating the origin of the local coordinate system at the intersection of two main directions of the route, whose Cartesian coordinates in the global system are known. This version of the analytical design method was presented in [34]; it is universal in nature and covers the areas where adjacent main directions of the railway route connect (both symmetrical and asymmetrical). In this paper, a similar approach was applied to the design of reverse curves.

However, reverse curves present a fundamental difference compared to most cases of analytical design method. In geometric systems, two adjacent main directions of the route are most often identified and further processed (including the creation of a local coordinate system). With reverse curves, a third main direction appears, significantly complicating matters by limiting the versatility of the developed method. However, when it comes to the local coordinate system, the adopted principle has been retained: it is determined using two adjacent principal directions.

To some extent, reference was made to the method of modeling compound curves on railway lines presented in [35]. However, the third main direction, which appears in the reverse arch, does not allow for a universal design method to be presented in symbolic notation, as is the case with compound curves. Therefore, in each stage of the entire procedure, appropriate theoretical formulas had to be directly applied to a specific calculation example. At the same time, the possibility of extending the scope of applications of the developed method through analogy was indicated.

2. Layout of the Main Directions of the Route

When considering the horizontal plane of a railway line, the geometric arrangement of reverse curves includes three consecutive main directions (labeled Line 1, Line 2, and Line 3), with the last direction (Line 3) deviating from the preceding direction (Line 2) in the opposite direction. These directions intersect at points W₁ (Line 1 with Line 2) and W₂ (Line 2 with Line 3). Figure 1 shows an example of the geometric situation of these main directions in the PL-2000 system. This system has an easting coordinate axis Y and a northing coordinate axis X.

In the analytical method of designing track geometric systems [34], basic computational operations are performed in the local coordinate system x, y. This system is defined by two intersecting main directions, arranged symmetrically; their intersection point is the origin of the system in question. In the case of modeling reverse curves, it was decided to maintain this principle, determining the local coordinate system (LCS) based on the location of Line 1 and Line 2. This is illustrated in Figure 1 by showing the position of the LCS axes in the PL-2000 system.

The equation of Line 1 in the PL-2000 system is as follows:

$$X=X_{W1}+\tan {\Phi }_1\left(Y-Y_{W1}\right),$$

(1)

and the equation of Line 2 has the form:

$$X=X_{W1}+\tan {\Phi }_2\left(Y-Y_{W1}\right),$$

(2)

where Y_W1 and X_W1 are the coordinates of point W₁, and Ф₁ and Ф₂ are the inclination angles of Line 1 and Line 2, respectively.

When adopting the appropriate numerical values in the calculation example, we were guided by the desire to obtain the greatest possible clarity of the geometric system in the LCS. Therefore, in this case, the coordinates of the main point Y_W1 = 6,750,000 m, X_W1 = 6,250,000 m and the slope of Line 1 equal to Φ₁ = –3π/8 rad were assumed. The assumed angle of return of the route α₁ = π/2 rad results in the slope of Line 2 equal to Φ₂ = Φ₁ + α₁ = π/8 rad. The above data give the required values of the shifts Y_W1 and X_W1 and the rotation angle β = Φ₂ + α₁/2 = 3π/8 rad, leading to the transformation of coordinates from the PL-2000 system to the local coordinate system. This is performed using the following formulas [36]:

$$x=\left(Y-Y_{W1}\right)\cos \beta -\left(X-X_{\partial W1}\right)\sin \beta ,$$

(3)

$$y=\left(Y-Y_{W1}\right)\sin \beta +\left(X-X_{\partial W1}\right)\cos \beta .$$

(4)

The angle of inclination of the x-axis in the PL-2000 system is Φ_x = β = 3π/8 rad, so its equation is as follows:

$$X=X_{W1}+\tan {\Phi }_x\left(Y-Y_{W1}\right).$$

(5)

The angle of inclination of the y-axis in this system is equal to Φ_y = β – π/2 = –π/8 rad; hence the equation of this axis

$$X=X_{W1}+\tan {\Phi }_y\left(Y-Y_{W1}\right).$$

(6)

Since the assumed angle of the route at point W₂ is equal to α₂ = π/12 rad, the slope of Line 3 is Φ₃ = Φ₂ + α₂ = π/6 rad. From the point of view of operations carried out in the LCS, it turned out to be advantageous to adopt the coordinates of the next principal point Y_W2 = 6,750,783.938 m and X_W2 = 6,250,324.718 m. The given data result in the equation of Line 3:

$$X=X_{W2}+\tan {\Phi }_3\left(Y-Y_{W2}\right).$$

(7)

3. Local Coordinate System

It should be noted from the outset that the alignment of the main directions of the route in the PL-2000 coordinate system can vary greatly. However, after transformation to the local coordinate system, there are only two possible positions for the designed geometric system: under the x-axis, with negative ordinates and the convexity of the curvilinear elements directed upwards, and above the x-axis, with positive ordinates and the convexity of the curvilinear elements directed downwards [34]. Therefore, strictly speaking, both possible cases should be taken into account when determining the appropriate computational algorithms.

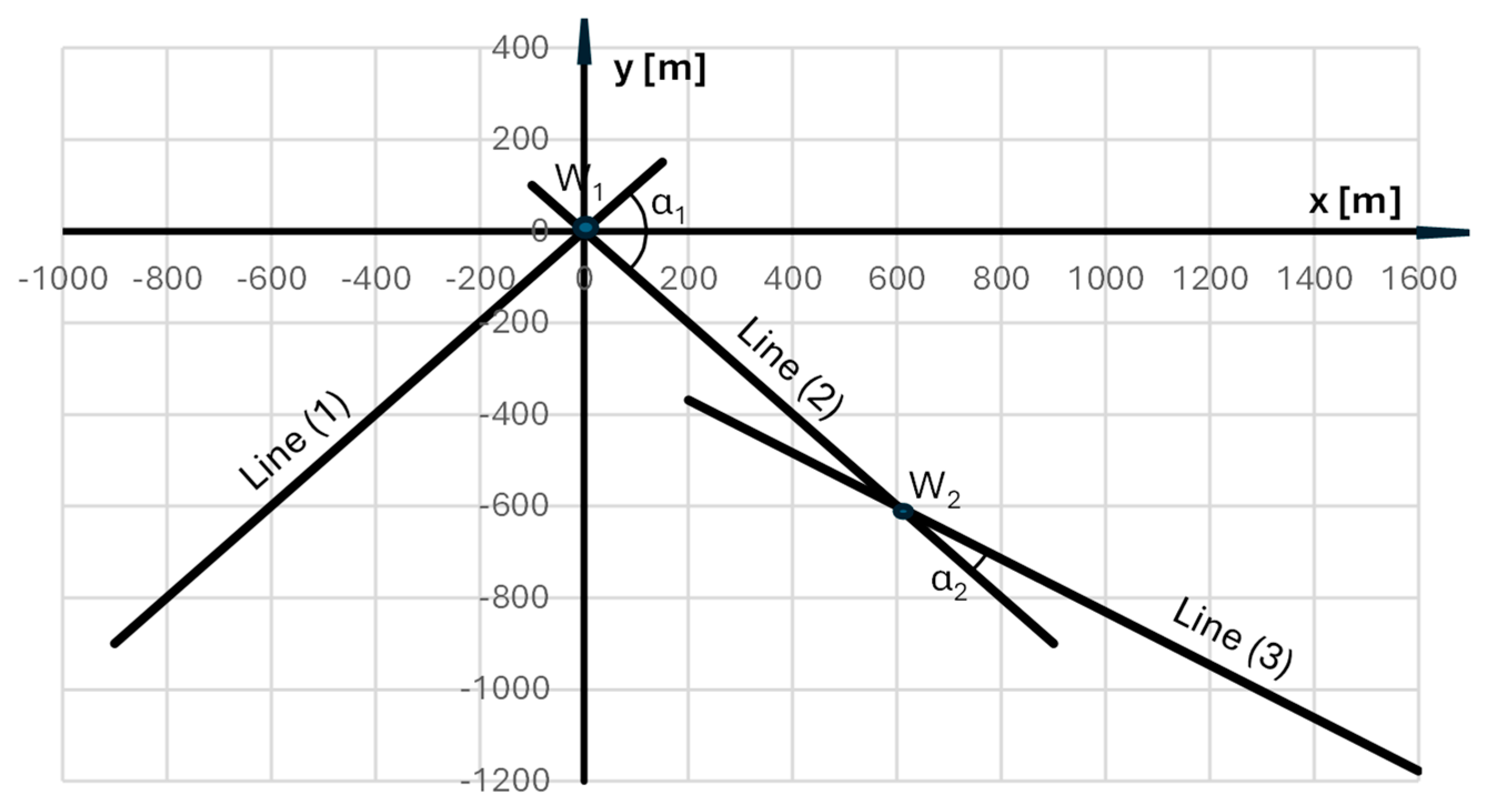

The main directions in Figure 1 indicate that in the LCS the geometric system under consideration lies below vertex W₁ and its ordinates are negative. This is the case that will be the subject of this article. The resulting formulas can also be applied to the system positioned above the x-axis, after making minor adjustments to the plus and minus signs.

The transfer of the route’s main directions in Figure 1 to the local coordinate system is performed using formulas (3) and (4). This creates the situation shown in Figure 2.

The origin of the local coordinate system, in which further detailed considerations will be conducted, is located at point W₁(0,0), where Line 1 and Line 2 intersect. This is characteristic of the LCS used in the analytical method of designing geometric systems of the track [34].

The equations of the intersecting lines result from the angle of the route α1 for the first circular arc (marked as Arc I) and are as follows:

• for Line 1:  $y=s_1\cdot x$,  $s_1=\tan {\phi }_1=\tan {\displaystyle \frac{{\alpha }_1}{2}}$,
• for Line 2:  $y=s_2\cdot x$,  $s_2=\tan {\phi }_2=-\tan {\displaystyle \frac{{\alpha }_1}{2}}$,

where φ₁ and φ₂ are the inclination angles of Line 1 and Line 2 in the LCS. In the given case, the assumed turning angle is α₁ = π/2 rad.

The second circular arc (marked as Arc II) is directed opposite to the preceding arc and connects Line 2 with Line 3. Both lines intersect at point W₂, whose coordinates x_W2 and y_W2 result from the coordinates Y_W2 and X_W2. The equation of Line 3 results from the return angle α₂ for the second circular arc:

• $y=y_{W2}+s_3\left(x-x_{W2}\right)$,  $s_3=\tan {\phi }_3=\tan \left(-{\displaystyle \frac{{\alpha }_1}{2}}+{\alpha }_2\right)$.

where φ₃ is the angle of inclination of Line 3 in the LCS. In the case under consideration, the coordinates of point W₂ are: x_W2 = 600 m, y_W2 = – 600 m, and the angle of inclination of the line is equal to φ₃ = –π/6 rad.

As can be seen, the numerical parameters of the considered system of the main directions of the route in the LCS allow for convenient tracking of the design procedure, including, among others, defining individual geometric elements. After completing this procedure, the obtained solution is transferred to the PL-2000 system using transformation formulas [36]:

$$Y=Y_{W1}+x\cdot \cos \beta -y\cdot \sin \beta .$$

(8)

$$X=X_{W1}+x\cdot \sin \beta +y\cdot \cos \beta .$$

(9)

4. Reverse Arcs Radii

The values of the radii of the reverse arcs must correspond to the existing system of main directions. The key issue here is to choose the correct point of connection of both arcs. This point (marked C in Figure 2) is located on Line 2, and the condition $x_C\in \left(x_{W1},x_{W2}\right)$ holds. For the assumed x_C, we determine y_C using the formula

$$y_C=-\left(\tan {\displaystyle \frac{{\alpha }_1}{2}}\right)x_C.$$

(10)

Then we calculate the distances $\overline{W_{1}C}$ and $\overline{C{W}_2}$.

$$\overline{W_{1}C}=\sqrt{{\left(x_C-x_{W1}\right)}^2+{\left(y_C-y_{W1}\right)}^2},$$

(11)

$$\overline{C{W}_2}=\sqrt{{\left(x_{W2}-x_C\right)}^2+{\left(y_{W2}-y_C\right)}^2}.$$

(12)

Of course, the condition must be met

$$\overline{W_{1}C}+\overline{C{W}_2}=\overline{W_1{W}_2}=\sqrt{{\left(x_{W2}-x_{W1}\right)}^2+{\left(y_{W2}-y_{W1}\right)}^2}.$$

We treat $\overline{W_{1}C}$ and $\overline{C{W}_2}$ as tangents of the corresponding reverse circular arcs. First, we determine the radius R_(I) of Arc I. Since its angle of return is ${\alpha }_1=\left|{\phi }_2-{\phi }_1\right|$, for φ₁ = π/4 rad, φ₂ = –π/4 rad, we obtain α₁ = π/2 rad. From the formula for the value of the tangent

$$t_1=\overline{W_{1}C}=\left(\tan {\displaystyle \frac{\left|{\phi }_2-{\phi }_1\right|}{2}}\right)R_{(I)}$$

(13)

it follows that

$$R_{(I)}={\displaystyle \frac{t_1}{\tan \frac{\left|{\phi }_2-{\phi }_1\right|}{2}}}.$$

(14)

The return angle of Arc II, with radius R_(II), is ${\alpha }_2=\left|{\phi }_3-{\phi }_2\right|$. Since in the case under consideration φ₂ = –π/4 rad, φ₃ = –π/6 rad, we obtain α₂ = π/12 rad. The formula for the value of the tangent is

$$t_2=\overline{C{W}_2}=\left(\tan {\displaystyle \frac{\left|{\phi }_3-{\phi }_2\right|}{2}}\right)R_{(II)},$$

(15)

hence

$$R_{(II)}={\displaystyle \frac{t_2}{\tan \frac{\left|{\phi }_3-{\phi }_2\right|}{2}}}.$$

(16)

Table 1 presents the values of the radii of the reverse arcs determined for different coordinates of point C in the considered calculation example.

As can be seen, for a given arrangement of the main directions of the route and the assumed location of the circular arc connection, there is a specific relationship between the values of these arc radii. Therefore, reverse arcs cannot be shaped arbitrarily; various conditions must be taken into account. Based on the data from Table 1, the case x_C = 450 m, y_C = –450 m (bold) was qualified for further analysis. This meant that considerations had to be conducted for the initial values of the circular arc radii R_(I) = 636.396 m and R_(II) = 1611.303 m.

Entering the designated arcs into the system of main directions allows us to create the original geometric system of reverse arcs. This requires first determining the coordinates of the starting point A₁ for the arc with radius R_(I) and the ending point A₂ for the arc with radius R_(II) (Figure 3). The coordinates of the point where both arcs join (i.e., point C) are already known.

The following formulas apply:

$$x_{A1}=x_{W1}-{\displaystyle \frac{1}{\sqrt{1+s_1^2}}}{t}_1,$$

(17)

$$y_{A1}=y_{W1}-{\displaystyle \frac{s_1}{\sqrt{1+s_1^2}}}{t}_1,$$

(18)

$$x_{A2}=x_{W2}+{\displaystyle \frac{1}{\sqrt{1+s_3^2}}}{t}_2,$$

(19)

$$y_{A2}=y_{W2}-{\displaystyle \frac{s_3}{\sqrt{1+s_3^2}}}{t}_2.$$

(20)

In the case shown in Figure 3, the determined coordinates are as follows: x_A1 = –450 m, y_A1 = –450 m, x_A2 = 783.712 m and y_A2 = –706.066 m.

In the next step, the coordinates of the centers of both circular arcs are determined. For Arc I, lines perpendicular to the corresponding main directions are drawn from points A₁ and C. The center of the arc S_(I) lies at the intersection of these lines. After solving the appropriate system of equations, the formulas for its coordinates are obtained:

$$x_{S(I)}={\displaystyle \frac{s_1{s}_2}{s_2-s_1}}\left({\displaystyle \frac{1}{s_1}}{x}_{A1}-{\displaystyle \frac{1}{s_2}}{x}_C+y_{A1}-y_C\right),$$

(21)

$$y_{S(I)}=y_{A1}-{\displaystyle \frac{1}{s_1}}\left(x_{S(I)}-x_{A1}\right),$$

(22a)

$$y_{S(I)}=y_C-{\displaystyle \frac{1}{s_2}}\left(x_{S(I)}-x_C\right).$$

(22b)

The equation of Arc I is as follows:

$$y=y_{S(I)}\pm \sqrt{R_{(I)}^2-{\left(x-x_{S(I)}\right)}^2}.$$

(23)

In the case under consideration x_S(I) = 0, y_S(I) = –900 m, and the arc equation has the form

$$y=-900+\sqrt{{\left(636.396\right)}^2-x^2},x\in 〈-450;450〉\mathrm{m}.$$

The procedure for Arc II is analogous. Lines perpendicular to the corresponding main directions are drawn from points C and A₂. After solving the appropriate system of equations, the formulas for the coordinates of the center of the arc S_(II) are obtained:

$$x_{S(II)}={\displaystyle \frac{s_2{s}_3}{s_3-s_2}}\left({\displaystyle \frac{1}{s_2}}{x}_C-{\displaystyle \frac{1}{s_3}}{x}_{A2}+y_C-y_{A2}\right),$$

(24)

$$y_{S(II)}=y_C-{\displaystyle \frac{1}{s_2}}\left(x_{S(II)}-x_C\right),$$

(25a)

$$y_{S(II)}=y_{A2}-{\displaystyle \frac{1}{s_3}}\left(x_{S(II)}-x_{A2}\right),$$

(25b)

The equation of Arc II has the following form:

$$y=y_{S(II)}\pm \sqrt{R_{(II)}^2-{\left(x-x_{S(II)}\right)}^2}.$$

(26)

In the case under consideration x_S(II) = 1589.363 m, y_S(II) = 689.363 m, and the arc equation is as follows:

$$y=689.363-\sqrt{{\left(1611.303\right)}^2-{\left(x-1589.363\right)}^2},x\in 〈450;783.712〉\mathrm{m}.$$

The inserted reverse arcs are marked in red in Figure 3. The $\overline{x},\overline{y}$ auxiliary coordinate system is also shown there, which will be used to analyze the application of transition curves for Arc II (in Chapter 7).

5. Curvature of the Primary Reverse Arc System

The arrangement of primary reverse curves shown in Figure 3 raises serious concerns. These arise from the occurrence of very unfavorable lateral accelerations when the rail vehicle is traveling at a given speed V. This is best seen in the curvature diagram of the geometric system, from which these accelerations directly result.

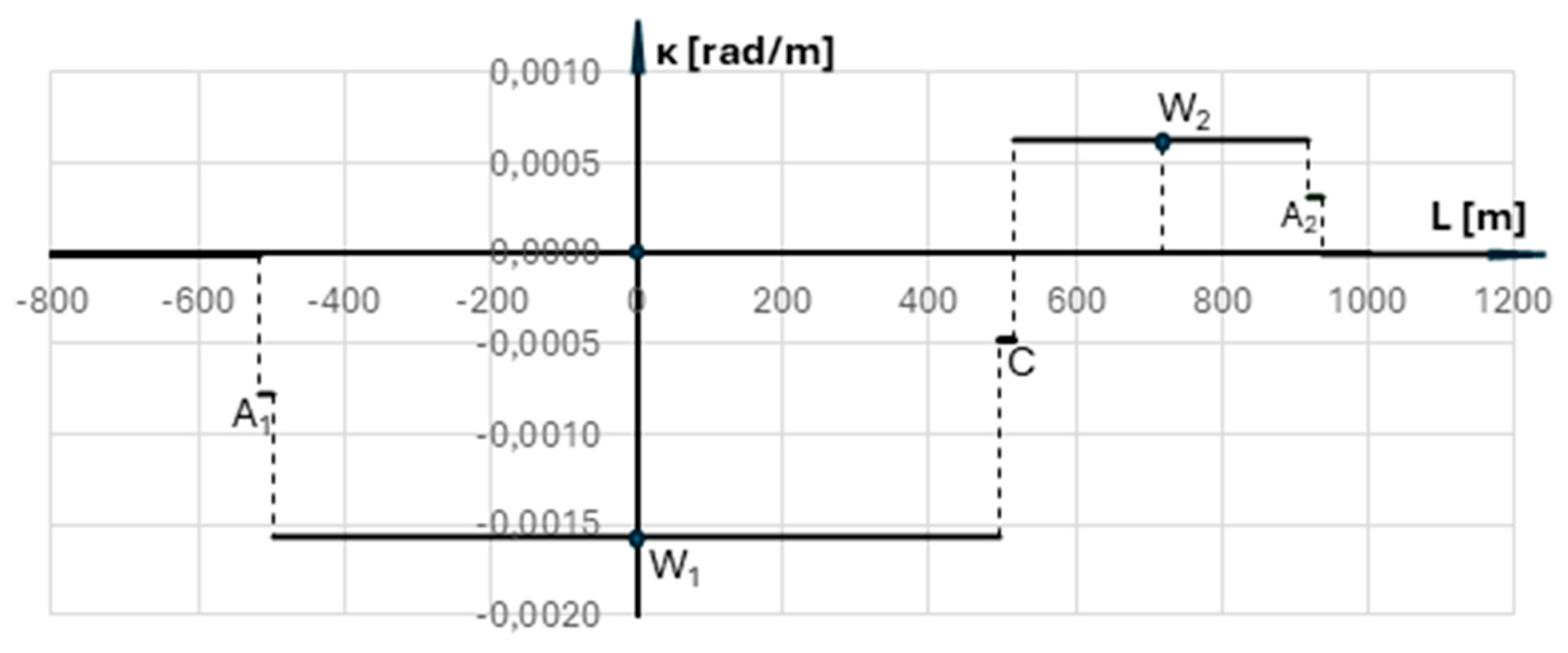

To determine the curvature graph along the length of the geometric system, a rail vehicle model was used in the form of its rigid base with a length of l_b = 20 m. The curvature value is obtained by tracking the position of the moving center of the rigid base. Figure 4 shows the curvature graph obtained for the system of reverse arcs from Figure 3.

As can be seen in the graph, there are sudden, abrupt changes in curvature around points A₁, C, and A₂. This causes two impacts at each point, transverse to the track, which can be easily observed, for example, on tram lines. However, travel on these lines in the areas of abrupt changes in curvature is usually very slow. On railway lines, much higher speeds apply, meaning travel times are shorter, and therefore the impact-mitigating effect of the rigid base is limited. Therefore, from a theoretical perspective, travel on the discussed geometric configuration could be achieved at low speeds.

Because in real track, due to its stiffness, the curvature at the joints of individual geometric elements is smoothed out, certain simplifying assumptions can be made to estimate the possible train speed. This involves the assumption (which is highly debatable, by the way) that the change in curvature at critical points occurs not abruptly, but linearly along the length of the rigid base.

The velocity on the geometric system of reverse curves results from the situation occurring at point C, i.e., at the point of contact of Arc I and Arc II. These are curves without cant (i.e., h₁ = 0 and h₂ = 0). The values of unbalanced acceleration, directed in opposite directions, are as follows:

$$a_{m1}={\displaystyle \frac{V^2}{{\left(3.6\right)}^2{R}_{(I)}}},a_{m2}={\displaystyle \frac{V^2}{{\left(3.6\right)}^2{R}_{(II)}}},$$

where the velocity V is expressed in km/h, the radii R_(I) and R_(II) R(I) in meters, and the accelerations a_m1 and a_m2 in m/s².

According to Polish regulations [37], acceleration values should be less than a_per = 0.85 m/s², but this condition is insufficient. The acceleration increase condition should also be checked:

$$\psi ={\displaystyle \frac{\left(a_{m1}+a_{m2}\right)\cdot V}{3.6\cdot l_b}}\le {\psi }_{per}$$

for the assumed length of the rigid wagon base, where ψ is expressed in m/s³. The acceleration increase should be smaller than ψ_per = 0.5 m/s³ [38]. The relevant analysis is presented in Table 2.

In the case under consideration, this gives a speed of V_max = 60 km/h (shown in bold in Table 2). This speed is relatively low and, moreover, not entirely reliable. Therefore, modeling of reverse curves should be continued by introducing transition curves for both existing circular arcs. This is possible if there is an appropriate distance between vertices W₁ and W₂ (it cannot be too small).

The transition curves are entered separately for Arc I and Arc II. As a result of this operation the radii of these arcs are reduced. The corresponding calculation procedure for Arc I is performed in the local coordinate system, while for Arc II in the $\overline{x},\overline{y}$ auxiliary coordinate system, with subsequent transfer of the obtained solution to the LCS.

6. Applying Transition Curves for the First Circular Arc

For Arc I, with the primary (initial) radius R_(I), transition curves of different lengths L_(I)i, i = 1, 2, … can be used. Figure 5 shows a fragment of the local coordinate system containing the effects of using symmetric transition curves of length 50 m and 100 m. The initial geometric system is marked in red, the system with curves of length L_(I)1 = 50 m is marked in green, and the system with curves of length L_(I)2 = 100 m is marked in purple.

The given task is to introduce transition curves p and q in the form of a clothoid with an assumed, differentiated length L_(I)i at both ends of Arc I (i.e. originating from points A₁ and C). Since the designed geometric system is symmetrical, it is sufficient to consider in detail one (in this case the left) half of it (i.e. with transition curve p). The straight segment on the left side of the system (i.e., Line 1) is the abscissa axis of the Cartesian coordinate system x_k, y_k, associated with the given transition curve. The origin of this system is at point A₁. We are interested in the coordinates of the curve’s endpoint (i.e., point K_p(I)i) in this system; they result from the corresponding parametric equations x_k(l) and y_k(l) for l = L_(I)i. Since – as it turns out – we must take into account the need to correct the radius of the circular arc, the transition curve equations must use different values of the arc radius R_(I)i. When using a transition curve in the form of a clothoid, the following parametric equations apply in the x_k, y_k system:

$$x_k(L_{(I)i})=L_{(I)i}-{\displaystyle \frac{L_{(I)i}^3}{40\cdot R_{(I)i}^2}}+{\displaystyle \frac{L_{(I)i}^5}{3,456\cdot R_{(I)i}^4}},$$

(27)

$$y_k(L_{(I)i})=-{\displaystyle \frac{L_{(I)i}^2}{6\cdot R_{(I)i}}}+{\displaystyle \frac{L_{(I)i}^4}{336\cdot R_{(I)i}^3}}-{\displaystyle \frac{L_{(I)i}^6}{42,240\cdot R_{(I)i}^5}},$$

(28)

while the angle of inclination ${\Theta }_k(L_{(I)i})$ at the end of the curve is determined from the relationship

$${\Theta }_k(L_{(I)i})=-{\displaystyle \frac{L_{(I)i}}{2\cdot R_{(I)i}}}.$$

(29)

The transformation of the transition curve to the x, y coordinate system is performed by rotating the reference system by an angle of α₁/2 and shifting the curve origin to point A₁. The corresponding formulas depend on the direction of rotation. This operation yields the desired values of the transition curve projections onto the horizontal and vertical axes, which are the coordinates of the curve’s endpoint. If the x_k, y_k system is rotated clockwise (as in Figure 5), the following relations are obtained:

$$x_{Kp(I)i}=x(L_{(I)i})=x_{A1}+x_k(L_{(I)i})\cdot \cos {\displaystyle \frac{{\alpha }_1}{2}}-y_k(L_{(I)i})\cdot \sin {\displaystyle \frac{{\alpha }_1}{2}},$$

(30)

$$y_{Kp(I)i}=y(L_{(I)i})=y_{A1}+x_k(L_{(I)i})\cdot \sin {\displaystyle \frac{{\alpha }_1}{2}}+y_k(L_{(I)i})\cdot \cos {\displaystyle \frac{{\alpha }_1}{2}}.$$

(31)

The angle of inclination Θ(L_(I)i) at the end of the curve is determined from the formula

$${\Theta }_{Kp(I)i}=\Theta (L_{(I)i})=-{\displaystyle \frac{L_{(I)i}}{2\cdot R_{(I)i}}}+{\displaystyle \frac{{\alpha }_1}{2}}.$$

(32)

Since the introduction of this transition curve is performed while maintaining the position of its starting point (i.e. point A₁), it is necessary to correct the position of the circular arc so that it starts at the point with coordinates x_Kp(I)i and y_Kp(I)i, the angle of inclination of the tangent is Θ_Kp(I)i and the condition of symmetry of the entire system is met (i.e. Θ(0) = 0). This is illustrated in the situation shown in Figure 5.

In this situation, the condition Θ(0) = 0 requires a correction of the arc radius value. This is directly related to the assumed transition curve length. The final solution to the problem is achieved for a specific value of L_(I)i, which is considered the most favorable.

Determining the corrected radius R_(I)i requires determining the coordinates of the center S_(I)i of the corresponding circular arc. It lies on the line perpendicular to the tangent at the end of the transition curve, with the equation

$$y(x)=y_{Kp(I)i}-{\displaystyle \frac{1}{\tan {\Theta }_{Kp(I)i}}}\left(x-x_{Kp(I)i}\right),$$

at a distance R_(I)i from the point K_p(I)i; it follows from this

$$\sqrt{{\left(x_{S(I)i}-x_{Kp(I)i}\right)}^2+{\left(y_{S(I)i}-y_{Kp(I)i}\right)}^2}=R_{(I)i}.$$

By solving the appropriate system of equations, we obtain the desired coordinates

$$x_{S(I)i}=x_{Kp(I)i}+{\displaystyle \frac{\tan {\Theta }_{Kp(I)i}}{\sqrt{1+{\left(\tan {\Theta }_{Kp(I)i}\right)}^2}}}{R}_{(I)i},$$

(33)

$$y_{S(I)i}=y_{Kp(I)i}-{\displaystyle \frac{1}{\sqrt{1+{\left(\tan {\Theta }_{Kp(I)i}\right)}^2}}}{R}_{(I)i}.$$

(34)

The necessity of fulfilling the condition x_S(I)i = 0 means that

$$R_{(I)i}=-{\displaystyle \frac{\sqrt{1+{\left(\tan {\Theta }_{Kp(I)i}\right)}^2}}{\tan {\Theta }_{Kp(I)i}}}{x}_{Kp(I)i},$$

(35)

determining the coordinates of point S_(I)i with a changing value of this radius.

The basic criterion for solving the problem is to meet the key condition x_S(I)i = 0. The final part of the calculations for the selected case (with α₁ = π/2 rad, x_A1 = –450 m, y_A1 = –450 m and L_(I)1 = 50 m) is shown in Table 3.

Taking into account the appropriate number of decimal places for the determined abscissa x_S(I)1 indicated the corrected circular arc radius R_(I)1 = 611.227 m (marked in bold in Table 3). Thus, the circular arc of radius R_(I), which is part of the reverse arc, is replaced by a circular arc of radius R_(I)1 and two transition curves of length L_(I)1 = 50 m (Figure 5).

The general equation of a circular arc with radius R_(I)i has the form

$$y=y_{S(I)i}+\sqrt{R_{(i)i}^2-x^2},x\in 〈x_{Kp(I)i},x_{Kq(I)i}〉.$$

(36)

Taking into account the existing symmetry, the entire arrangement of the first arc is described as follows:

• for $x\in 〈x_{A1},x_{Kp(I)i}〉$, that is $l\in 〈0,L_{(I)i}〉$
  $x(l)=x_{A1}+x_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_1}{2}}-y_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_1}{2}}$,
  $y(l)=y_{A1}+x_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_1}{2}}+y_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_1}{2}}$,
  where

  $$\begin{gathered} x_k(l)=l-{\displaystyle \frac{l^5}{40\cdot R_{(I)i}^2\cdot L_{(I)i}^2}}+{\displaystyle \frac{l^9}{3,456\cdot R_{(I)i}^4\cdot L_{(I)i}^4}}, \\ {y}_k(l)=-{\displaystyle \frac{l^3}{6\cdot R_{(I)i}\cdot l_{(I)i}}}+{\displaystyle \frac{l^7}{336\cdot R_{(I)i}^3\cdot L_{(I)i}^3}}-{\displaystyle \frac{l^{11}}{42,240\cdot R_{(I)i}^5\cdot L_{(I)i}^5}}. \end{gathered}$$
• for $x\in 〈x_{Kp(I)i},x_{Kq(I)i}〉$, where x_Kq(I)i = – x_Kp(I)i

  $$y=y_{S(I)i}+\sqrt{R_{(I)i}^2-x^2}.$$
• for $x\in 〈x_{Kq(I)i},x_C〉$, that is $l\in 〈-L_{(I)i},0〉$

  $$\begin{gathered} x(l)=x_C+x_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_1}{2}}+y_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_1}{2}} \\ y(l)=y_C-x_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_1}{2}}+y_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_1}{2}}. \end{gathered}$$

  where

  $$\begin{gathered} x_k(l)=l-{\displaystyle \frac{l^5}{40\cdot R_{(I)i}^2\cdot L_{(I)i}^2}}+{\displaystyle \frac{l^9}{3,456\cdot R_{(I)i}^4\cdot L_{(I)i}^4}}, \\ {y}_k(l)={\displaystyle \frac{l^3}{6\cdot R_{(I)i}\cdot L_{(I)i}}}-{\displaystyle \frac{l^7}{336\cdot R_{(I)i}^3\cdot L_{(I)i}^3}}+{\displaystyle \frac{l^{11}}{42,240\cdot R_{(I)i}^5\cdot L_{(I)i}^5}}. \end{gathered}$$

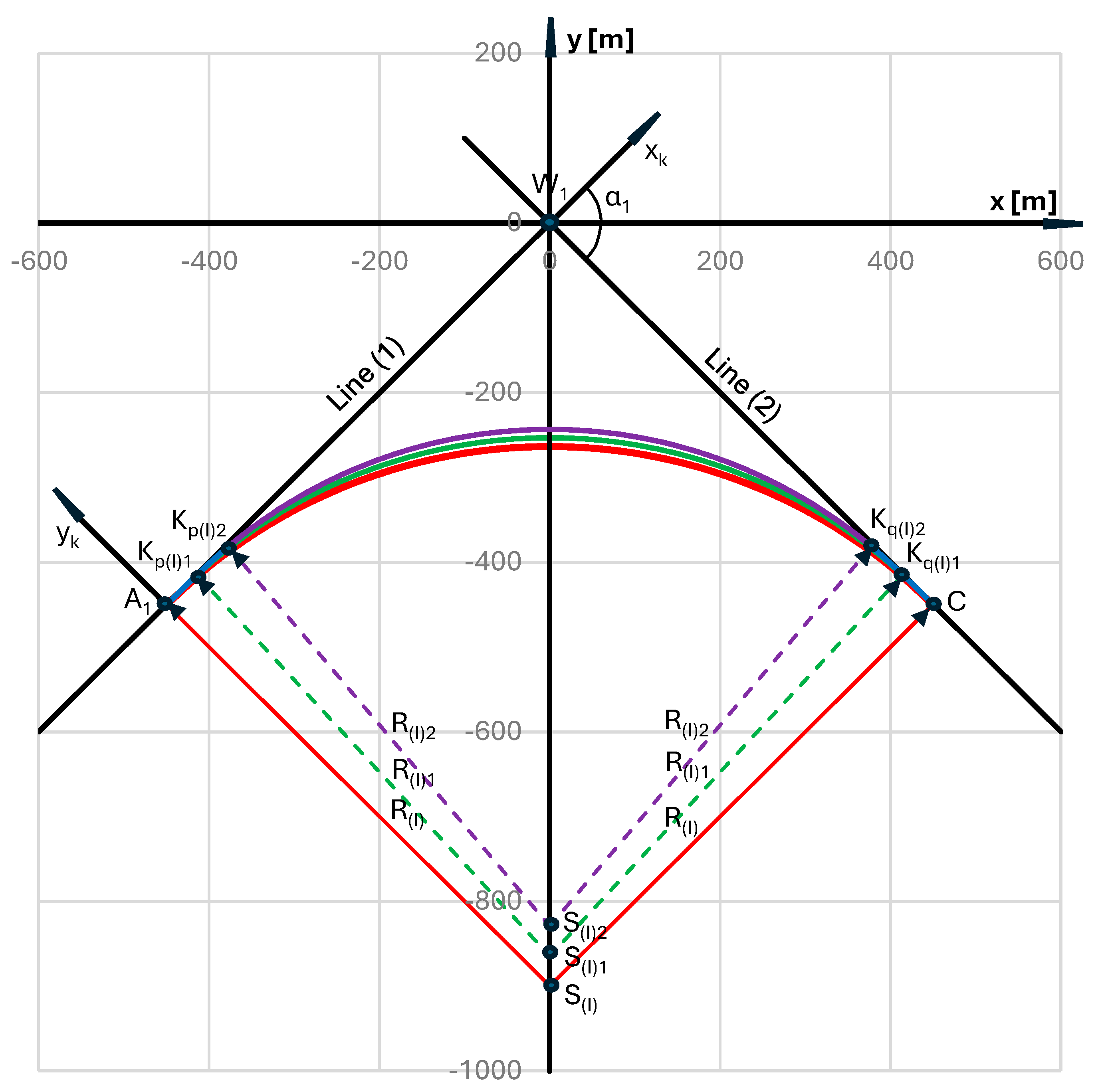

In the situation shown in Figure 5, L_(I)1 = 50 m was first assumed. Since α₁ = π/2 rad, x_A1 = –450 m and y_A1 = –450 m, the coordinates of the end of the first transition curve in the x_k, y_k system are as follows: x_k(L_(I)1) = 49.992 m, y_k(L_(I)1) = –0.665 m. The angle of inclination of the tangent is Θ(L_(I)1) = –0.03928 rad. The coordinates of the center of the corrected arc are: x_S(I)1 = 0, y_S(I)1 = –864.647 m. This corresponds to the following values in the local coordinate system: x_Kp(I)1 = –414.187 m, y_Kp(I)1 = –415.113 m, Θ_Kp(I)1 = 0.746114 rad, x(0) = 0, y(0) = –253.420 m, x_Kq(I)1 = 414.187 m, y_Kq(I)1 = –415.113 m, Θ_Kq(I)1 = –0.746114 rad, x_C = 450 m and y_C = –450 m. The entire geometric system is shown in Figure 5 (the circular arc is marked in green).

The next step was to assume the length L_(I)2 = 100 m (while maintaining α₁ = π/2 rad, x_A1 = –450 m, and y_A1 = –450 m). As before, the radius R_(I)2 should be determined numerically by specifying the coordinates of point S_(I)2 with varying values of this radius. The basic criterion for solving the problem is to meet the key condition x_S(I)2 = 0. The final part of the calculations for the discussed case is shown in Table 4.

Taking into account the appropriate number of decimal places for the determined abscissa x_S(I)2 indicates a corrected circular arc radius R_(I)2 = 585.697 m (marked in bold in Table 4). Thus, the circular arc of radius R_(I), which is part of the reverse arc, is replaced by a circular arc of the given radius and two transition curves of 100 m length. This is shown in Figure 5, where the circular arc is marked in purple.

The coordinates of the end of the first transition curve in the x_k, y_k system are as follows: x_k(L_(I)2) = 99.927 m, y_k(L_(I)2) = –2.844 m. The angle of inclination of the tangent is Θ(L_(I)2) = –0.085368 rad. The coordinates of the center of the corrected arc are: x_S(I)2 = 0, y_S(I)2 = –829.306 m. This corresponds to the following values in the local coordinate system: x_Kp(I)2 = –377.330 m, y_Kp(I)2 = –381.352 m, Θ_Kp(I)2 = 0.70003 rad, x(0) = 0, y(0) = –243.609 m, x_Kq(I)2 = 377.330 m, y_Kq(I)2 = –381.352 m, Θ_Kq(I)2 = –0.70003 rad, x_C = 450 m and y_C = –450 m.

7. Applying Transition Curves for the Second Circular Arc

The transition curves at Arc II (with radius R_(II)) are inserted in the $\overline{x},\overline{y}$ auxiliary coordinate system (Figure 3). This system has its origin at point W₂, and the ordinate axis on the line passing through points W₂ and S_(II). The equation of the axes in the LCS is as follows:

$$y=y_{W2}+{\displaystyle \frac{y_{S(II)}-y_{W2}}{x_{S(II)}-x_{W2}}}\left(x-x_{W2}\right).$$

(37)

The $\overline{x}$ axis passes through point W₂ perpendicularly to the $\overline{y}$ axis; therefore, it is described by the equation

$$y=y_{W2}-{\displaystyle \frac{x_{S(II)}-x_{W2}}{y_{S(II)}-y_{W2}}}\left(x-x_{W2}\right).$$

(38)

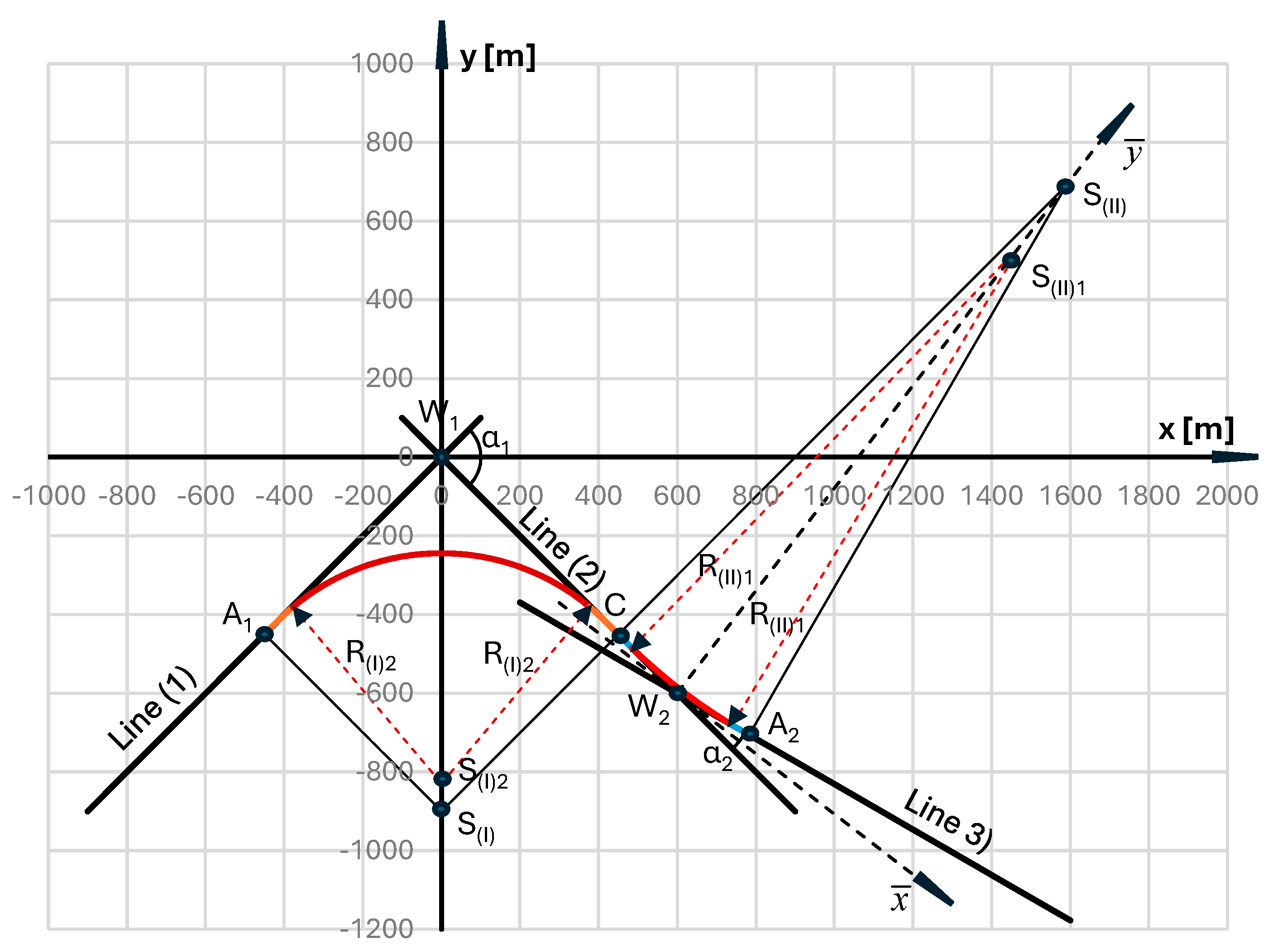

The separated auxiliary coordinate system is shown in Figure 6. It contains the effects of applying symmetrical transition curves in the form of a clothoid for an arc with an initial radius R_(II). The primary geometric system (without transition curves) is marked in red, which, however – in the adopted drawing scale – has been obscured by the system with curves of length L_(II)1 = 50 m, marked in purple.

In the $\overline{x},\overline{y}$ system, the inclinations of the main directions intersecting at point W₂(0,0) result from the angle of inclination α₂. The angle of inclination of Line 2 is –α₂/2, and of Line 3: α₂/2. The abscissa of point S_(II) is equal to zero, and the ordinate results from the relationship:

$${\overline{y}}_{S(II)}=\sqrt{{\left(x_{S(II)}-x_{W2}\right)}^2+{\left(y_{S(II)}-y_{W2}\right)}^2}.$$

(39)

Point C has coordinates:

$${\overline{x}}_C=-R_{(II)}\cos {\displaystyle \frac{{\alpha }_2}{2}}\tan {\displaystyle \frac{{\alpha }_2}{2}},$$

(40)

$${\overline{y}}_C=R_{(II)}\sin {\displaystyle \frac{{\alpha }_2}{2}}\tan {\displaystyle \frac{{\alpha }_2}{2}},$$

(41)

and point A₂:

$${\overline{x}}_{A2}=R_{(II)}\cos {\displaystyle \frac{{\alpha }_2}{2}}\tan {\displaystyle \frac{{\alpha }_2}{2}},$$

(42)

$${\overline{y}}_{A2}=R_{(II)}\sin {\displaystyle \frac{{\alpha }_2}{2}}\tan {\displaystyle \frac{{\alpha }_2}{2}}.$$

(43)

The equation of Line 2 has the form

$$\overline{y}=-\left(\tan {\displaystyle \frac{{\alpha }_2}{2}}\right)\cdot \overline{x},$$

(44)

and the equation of Line 3

$$\overline{y}=\left(\tan {\displaystyle \frac{{\alpha }_2}{2}}\right)\cdot \overline{x}.$$

(45)

The radius of the arc starting from point C lies on the line with equation

$$\overline{y}={\overline{y}}_C+{\displaystyle \frac{{\overline{y}}_{S(II)}-{\overline{y}}_C}{{\overline{x}}_{S(II)}-{\overline{x}}_C}}\left(\overline{x}-{\overline{x}}_C\right),$$

(46)

and the radius originating from point A₂ is located on the straight line

$$\overline{y}={\overline{y}}_{A2}+{\displaystyle \frac{{\overline{y}}_{S(II)}-{\overline{y}}_{A2}}{{\overline{x}}_{S(II)}-{\overline{x}}_{A2}}}\left(\overline{x}-{\overline{x}}_{A2}\right).$$

(47)

The equation of Arc II is as follows:

$$\overline{y}={\overline{y}}_{S(II)}+\sqrt{R_{(II)}^2-{\left(\overline{x}-{\overline{x}}_{S(II)}\right)}^2}.$$

(48)

In the example considered, α₂ = π/12 rad. We therefore obtain:

${\overline{x}}_{S(II)}$ = 0,    ${\overline{y}}_{S(II)}$ = 1,625.206 m ,

${\overline{x}}_C$ = −210.317 m,  ${\overline{y}}_C$ = 27.689 m ,

${\overline{x}}_{A2}$ = 210.317 m,  ${\overline{y}}_{A2}$ = 27.689 m .

We introduce transition curves p and q in the form of a clothoid of length L_(II)i, i = 1, 2, … at both ends of Arc II (i.e., starting from points C and A₂). For symmetry reasons, we consider only the left half of the geometric system (with curve p). The segment of Line 2 is the abscissa axis of the Cartesian coordinate system x_k, y_k, associated with the given transition curve. The origin of this system is at point C. We are interested in the coordinates of the endpoint of the curve in this system (i.e., point K_p(II)i). As in Chapter 6, in the equations of the transition curve, we must operate with different values of R_(II)i of the arc radius. When using a transition curve in the form of a clothoid, equation (27) applies to x_k(L_(II)i), and equation (49) applies to y_k(L_(II)i)

$$y_k(L_{(II)i})={\displaystyle \frac{L_{(II)i}^2}{6\cdot R_{(II)i}}}-{\displaystyle \frac{L_{(II)i}^4}{336\cdot R_{(II)i}^3}}+{\displaystyle \frac{L_{(II)i}^6}{42240\cdot R_{(II)i}^5}},$$

(49)

while the angle of inclination Θ_k(L_(II)i) at the end of the curve is determined from the dependence

$${\Theta }_k(L_{(II)i})={\displaystyle \frac{L_{(II)i}}{2\cdot R_{(II)i}}}.$$

(50)

The transformation of the transition curve into the $\overline{x},\overline{y}$ coordinate system is performed by rotating the reference system by an angle α₂/2 and shifting the curve origin to point C. The corresponding formulas depend on the direction of rotation. This operation results in the desired values of the projections of the transition curve onto the horizontal and vertical axes, which are the coordinates of the end K_p(II)i of the curve. If the x_k, y_k system is rotated to the left (as in Figure 6), the following values are obtained:

$${\overline{x}}_{Kp(II)i}=\overline{x}(L_{(II)i})={\overline{x}}_C+x_k(L_{(II)i})\cdot \cos {\displaystyle \frac{{\alpha }_2}{2}}+y_k(L_{(II)i})\cdot \sin {\displaystyle \frac{{\alpha }_2}{2}}.$$

(51)

$${\overline{y}}_{Kp(II)i}=\overline{y}(L_{(II)i})={\overline{y}}_C-x_k(L_{(II)i})\cdot \sin {\displaystyle \frac{{\alpha }_2}{2}}+y_k(L_{(II)i})\cdot \cos {\displaystyle \frac{{\alpha }_2}{2}}.$$

(52)

The angle of inclination Θ(L_(II)i) at the end of the curve is determined from the relationship

$${\overline{\Theta }}_{Kp(II)i}=\overline{\Theta }(L_{(II)i})={\displaystyle \frac{L_{(II)i}}{2\cdot R_{(II)i}}}-{\displaystyle \frac{{\alpha }_2}{2}}.$$

(53)

Since the introduction of this transition curve is performed while maintaining the position of its starting point (i.e. point C), it is necessary to correct the position of the circular arc so that it starts at the point with coordinates ${\overline{x}}_{Kp(II)i}$ and ${\overline{y}}_{Kp(II)i}$, the angle of inclination of the tangent is there ${\overline{\Theta }}_{Kp(II)i}$ and the condition of symmetry of the entire system is met (i.e. $\overline{\Theta }\left(0\right)=0$). This last condition requires the value of the arc radius to be corrected. This is directly related to the assumed length of the transition curve. Determining the corrected radius R_(II)i requires determining the coordinates of the center S_(II)i of the corresponding circular arc. It lies on the line perpendicular to the tangent at the end of the transition curve, with the equation

$$\overline{y}\left(\overline{x}\right)={\overline{y}}_{Ka(II)i}-{\displaystyle \frac{1}{\tan {\overline{\Theta }}_{Ka(II)i}}}\left(\overline{x}-{\overline{x}}_{Ka(II)i}\right).$$

The center of the corrected circular arc lies on this line, at a distance R_(II) from the point K_p(II)i. This gives the system of equations:

$${\overline{y}}_{S(II)i}={\overline{y}}_{Kp(II)i}-{\displaystyle \frac{1}{\tan {\overline{\Theta }}_{Kp(II)i}}}\left({\overline{x}}_{S(II)i}-{\overline{x}}_{Kp(II)i}\right),$$

$$\sqrt{{\left({\overline{x}}_{S(II)i}-{\overline{x}}_{Kp(II)i}\right)}^2+{\left({\overline{y}}_{S(II)i}-{\overline{y}}_{Kp(II)i}\right)}^2}=R_{(II)i}.$$

By solving this system of equations, we obtain the desired coordinates

$${\overline{x}}_{S(II)i}={\overline{x}}_{Kp(II)i}-{\displaystyle \frac{\tan {\overline{\Theta }}_{Kp(II)i}}{\sqrt{1+{\left(\tan {\overline{\Theta }}_{Kp(II)i}\right)}^2}}}{R}_{(II)i},$$

(54)

$${\overline{y}}_{S(II)i}={\overline{y}}_{Kp(II)i}+{\displaystyle \frac{1}{\sqrt{1+{\left(\tan {\overline{\Theta }}_{Kp(II)i}\right)}^2}}}{R}_{(II)i}.$$

(55)

The correct solution requires that the condition ${\overline{x}}_{S(II)i}=0$. This means that

$$R_{(II)i}=-{\displaystyle \frac{\sqrt{1+{\left(\tan {\overline{\Theta }}_{Kp(II)i}\right)}^2}}{\tan {\overline{\Theta }}_{Kp(II)i}}}{\overline{x}}_{Kp(II)i}.$$

(56)

In the above relation the abscissa ${\overline{x}}_{Kp(II)i}$is described by formula (51), in which x_k(L_(II)i) and y_k(L_(II)i) depend on the radius R_(II)i; this also applies to the angle ${\overline{\Theta }}_{Kp(II)i}$.

In this situation, as in Chapter 6, the radius R_(II)i should be determined iteratively, changing the values of this radius when determining the coordinates of point S_(II)i. The solution of the problem is determined by fulfilling the condition ${\overline{x}}_{S(II)i}=0$. The final fragment of the calculations for the selected case (with α₂ = π/12 rad, x_C = –210.317 m, y_C = 27.689 m and L_(II)i = L_(II)1 = 50 m) is shown in Table 5.

Taking into account the appropriate number of decimal places for the determined abscissa x_S(II)i indicated the corrected circular arc radius R_(II)i = R_(II)1 = 1421.338 m (marked in bold in Table 5). Thus, the circular arc of radius R_(II), which is part of the reverse arc, is replaced by a circular arc of radius R_(II)1 and two transition curves of length L_(II)1 (Figure 6).

The equation of a circular arc with radius R_(II)i in the $\overline{x},\overline{y}$ system has the form:

$$\overline{y}={\overline{y}}_{S(II)i}-\sqrt{R_{(II)i}^2-{\overline{x}}^2},\overline{x}\in 〈{\overline{x}}_C,{\overline{x}}_{A2}〉.$$

(57)

The entire system is described as follows:

• for $\overline{x}\in 〈{\overline{x}}_C,{\overline{x}}_{Kp(II)i}〉$, that is $l\in 〈0,L_{(II)i}〉$

  $$\begin{gathered} \overline{x}(l)={\overline{x}}_C+x_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_2}{2}}+y_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_2}{2}}, \\ \overline{y}(l)={\overline{y}}_C-x_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_2}{2}}+y_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_2}{2}}, \end{gathered}$$

  where

  $$\begin{gathered} x_k(l)=l-{\displaystyle \frac{l^5}{40\cdot R_{(II)i}^2\cdot L_{(II)i}^2}}+{\displaystyle \frac{l^9}{3,456\cdot R_{(II)i}^4\cdot L_{(II)i}^4}}, \\ {y}_k(l)={\displaystyle \frac{l^3}{6\cdot R_{(II)i}\cdot L_{(II)i}}}-{\displaystyle \frac{l^7}{336\cdot R_{(II)i}^3\cdot L_{(II)i}^3}}+{\displaystyle \frac{l^{11}}{42,240\cdot R_{(II)i}^5\cdot L_{(II)i}^5}} \end{gathered}$$
• for $\overline{x}\in 〈{\overline{x}}_{Kp(II)i},{\overline{x}}_{Kq(II)i}〉$, where ${\overline{x}}_{Kq(II)i}=-{\overline{x}}_{Kp(II)i}$

  $$\overline{y}={\overline{y}}_{S(II)i}-\sqrt{R_{(II)i}^2-{\overline{x}}^2}$$
• for $\overline{x}\in 〈{\overline{x}}_{Kq(II)i},{\overline{x}}_{A2}〉$, that is $l\in 〈-L_{(II)i},0〉$

  $$\begin{gathered} \overline{x}(l)={\overline{x}}_{A2}+x_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_2}{2}}-y_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_2}{2}} \\ \overline{y}(l)={\overline{y}}_{A2}+x_k(l)\cdot \sin {\displaystyle \frac{{\alpha }_2}{2}}+y_k(l)\cdot \cos {\displaystyle \frac{{\alpha }_2}{2}}. \end{gathered}$$

  where

  $$\begin{gathered} x_k(l)=l-{\displaystyle \frac{l^5}{40\cdot R_{(II)i}^2\cdot L_{(II)i}^2}}+{\displaystyle \frac{l^9}{3,456\cdot R_{(II)i}^4\cdot L_{(II)i}^4}}, \\ {y}_k(l)=-{\displaystyle \frac{l^3}{6\cdot R_{(II)i}\cdot L_{(II)i}}}+{\displaystyle \frac{l^7}{336\cdot R_{(II)i}^3\cdot L_{(II)i}^3}}-{\displaystyle \frac{l^{11}}{42,240\cdot R_{(II)i}^5\cdot L_{(II)i}^5}}. \end{gathered}$$

In the situation shown in Figure 6, L_(II)i = L_(II)1 = 50 m was assumed. The coordinates of the end of the first transition curve in the x_k, y_k system are as follows: x_k(L_(II)1) = 49.998 m, y_k(L_(II)1) = 0.293 m, and the angle of inclination of the tangent is Θ_k(L_(II)1) = 0.017589 rad. For α₂ = π/12 rad, ${\overline{x}}_C$ = –210.317 m and ${\overline{y}}_C$ = 27.689 m this corresponds to the following values in the $\overline{x},\overline{y}$ coordinate system: ${\overline{x}}_{Kp(II)1}$ = –160.708 m, ${\overline{y}}_{Kp(II)1}$ = 21.453 m, ${\overline{\Theta }}_{Kp(II)1}$ = –0.11331 rad, $\overline{x}(0)$ = 0, $\overline{y}(0)$ = 12.339 m, ${\overline{x}}_{Kq(II)1}$ = 160.708 m, ${\overline{y}}_{Kq(II)1}$ = 21.453 m, ${\overline{\Theta }}_{Kq(II)1}$ = 0.11331 rad, ${\overline{x}}_{A2}$ = 210.317 m and ${\overline{y}}_{A2}$ = 27.689 m.

At the end of the discussed procedure, we transfer the obtained solution from the $\overline{x},\overline{y}$ auxiliary coordinate system to the x, y system. To do this, we move the origin of the system to the point W₂ in the LCS and rotate it counterclockwise by an angle $\gamma =\left|{\phi }_3\right|+{\alpha }_2/2$. Since in the considered case φ₃ = –π/6 rad, and α₂ = π/12 rad, hence the angle γ = 5π/24 rad. The following transformation formulas apply [36]:

$$x=x_{W2}+\overline{x}\cdot \cos \gamma -\overline{y}\cdot \sin \gamma$$

(58)

$$y=y_{W2}-\overline{x}\cdot \sin \gamma +\overline{y}\cdot \cos \gamma ,$$

(59)

where $\gamma =\left|{\phi }_3\right|+{\alpha }_2/2$.

8. The Resulting Geometric Arrangement of Reverse Curves

The final solution to the problem was a geometric system consisting of a circular arc of radius R_(I)2 = 585.697 m with two hundred-meter transition curves in the form of a clothoid (determined in Chapter 6) and an inversely directed arc of radius R_(II)1 = 1421.338 m with two fifty-meter curves in the form of a clothoid (determined in Chapter 7). The entire system is shown in Figure 7.

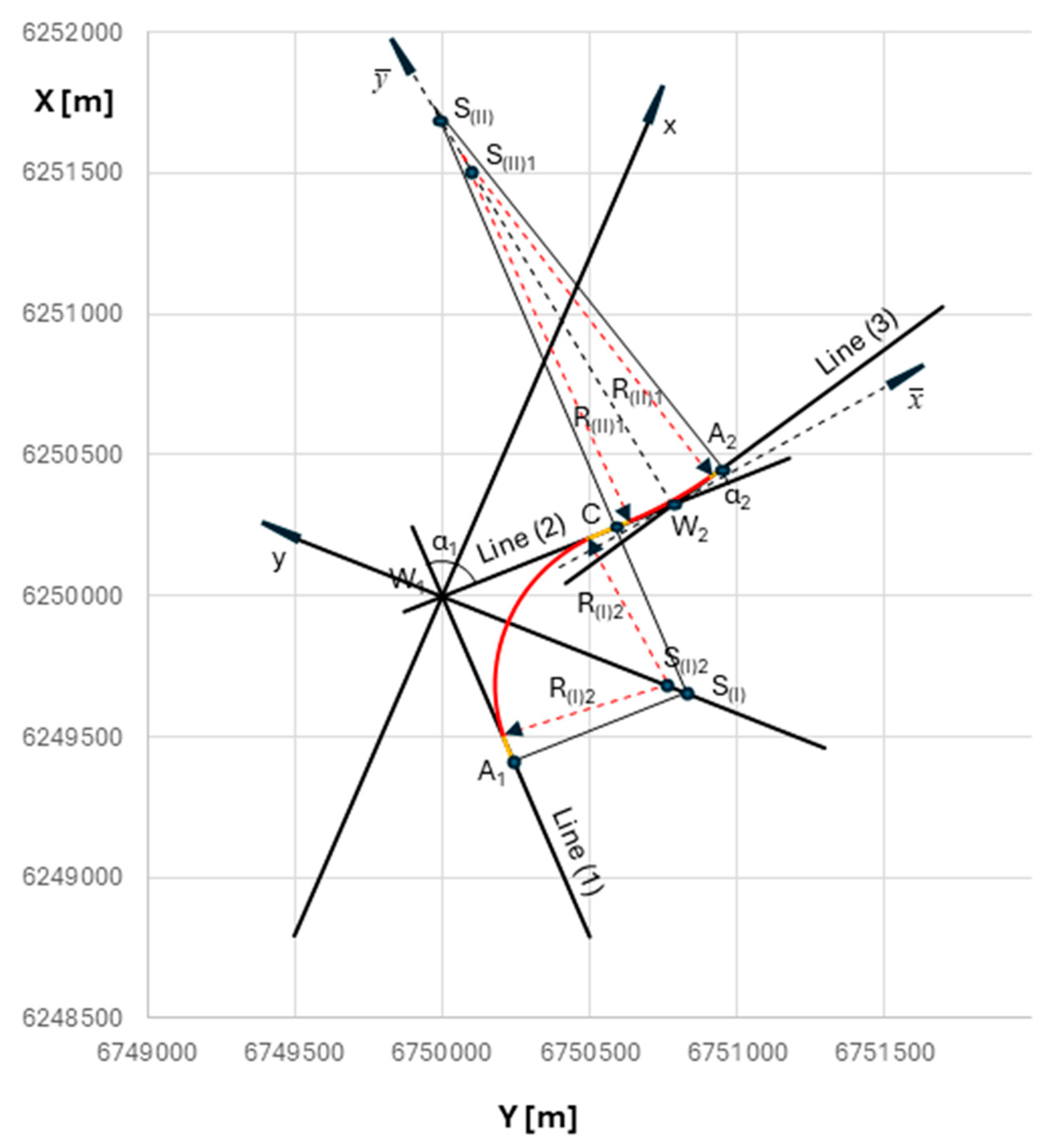

After transferring the obtained solution to the PL-2000 system, using formulas (8) and (9), the situation shown in Figure 8 arises.

9. Evaluation of the Obtained Solution

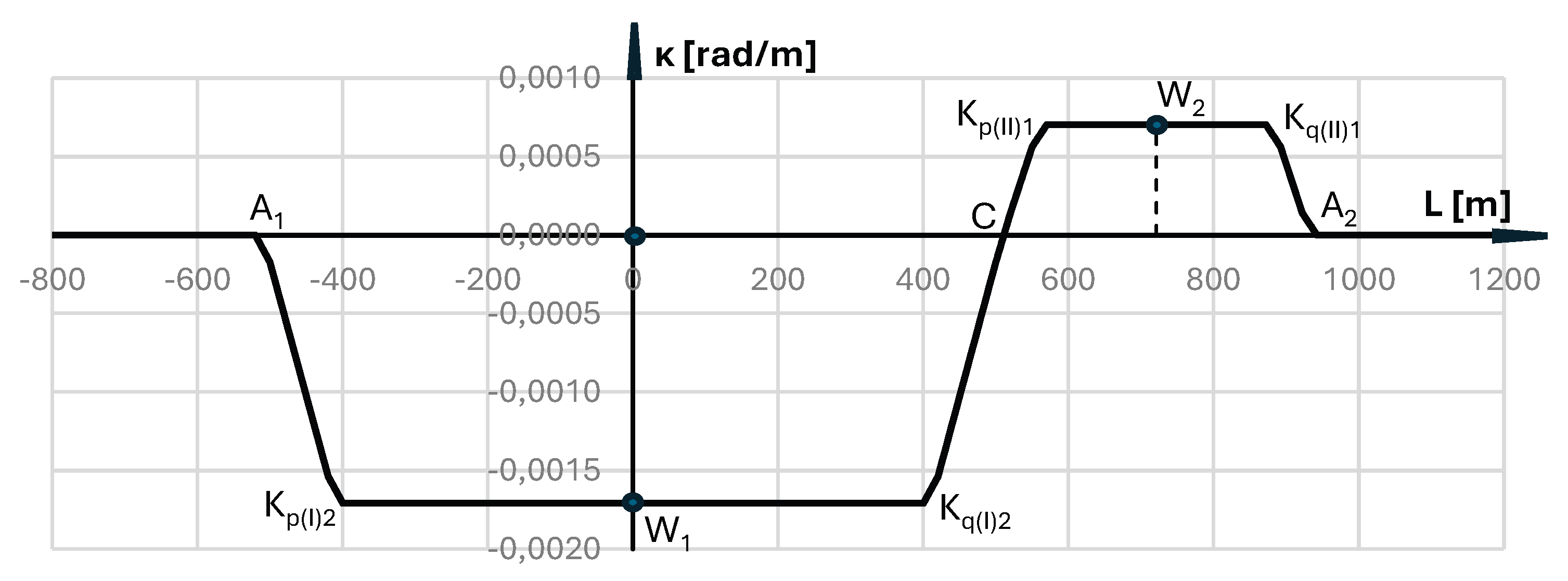

To evaluate the geometric system shown in Figure 7 and Figure 8, it is necessary to first determine its horizontal curvature along its length, and then analyze the achievable train speed. The curvature diagram was based on the model of a moving rigid base of a rail vehicle, as used in Chapter 5. Figure 9 shows the curvature diagram for the resulting reverse curve system.

The curvature diagram in Figure 9 indicates that both horizontal curves can be considered independently, and the train speed on the entire system will be determined by the curve with the greater curvature (i.e., the arc with radius R_(I)2. The first step is to check the possible speed without the use of cant. This is shown in Table 6, separately for both curves under consideration. The formulas for accelerations a_m1 and a_m2 from Chapter 5 (taking into account the corrected radii) and the formulas for acceleration increase

$${\psi }_1={\displaystyle \frac{a_{m1}\cdot V}{3,6\cdot l_{(I)i}}},{\psi }_2={\displaystyle \frac{a_{m2}\cdot V}{3,6\cdot l_{(II)i}}}$$

Table 6 shows the values of key kinematic parameters and the resulting speed derived from them. For both circular arcs, the differential impact of acceleration and acceleration increase on the achieved speed is evident. On the arc with a smaller radius (i.e. Arc I), the acceleration parameter plays a decisive role, determining V_max = 80 km/h. The acceleration gain condition would result in V_max = 100 km/h, but the lower value is valid. On the curve with a larger radius (i.e. Arc II), the opposite occurs: the acceleration gain plays a decisive role, determining V_max = 105 km/h (the acceleration condition would result in V_max = 125 km/h). Of course, on the entire reverse curve system, in the absence of cant, the determined speed is V_max = 80 km/h.

In the next step, the effects of applying cant to an arc will be examined. Table 7 presents the appropriate procedure for a circular curve with a smaller radius. The following formula for unbalanced acceleration was used:

$$a_{m1}={\displaystyle \frac{V^2}{{\left(3,6\right)}^2{R}_{(I)i}}}-g{\displaystyle \frac{h_1}{s}},$$

where: h₁ – cant value in millimeters, g – acceleration of gravity (g = 9.81 m/s²), s – centre distance of rails (on standard gauge lines s = 1500 mm).

The formula for the acceleration increase ψ₁ is the same as that used in Table 6, but the lifting speed of the rolling stock wheel on the gradient due to cant must be determined using the formula

$$f_1={\displaystyle \frac{h_1\cdot V}{3,6\cdot L_{(I)i}}}.$$

The f₁ value should not be greater than 50 mm/s [37].

In Table 7, for each assumed cant, the key kinematic parameter values and the resulting speed are bolded. As it turns out, this speed is determined by the unbalanced acceleration occurring on the curve. The highest achievable speed on Arc I is 115 km/h, with an applied cant of 140 mm. For this speed, all required kinematic conditions are met.

A similar procedure performed for Arc II is illustrated in Table 8. The designation h₂ refers to the cant value on this curve. The following calculation formulas were used:

$$a_{m2}={\displaystyle \frac{V^2}{{\left(3,6\right)}^2{R}_{(II)i}}}-g{\displaystyle \frac{h_2}{s}},{\psi }_2={\displaystyle \frac{a_{m2}\cdot V}{3,6\cdot L_{(II)i}}},f_2={\displaystyle \frac{h_2\cdot V}{3,6\cdot L_{(II)i}}}.$$

In Table 8, the key values of kinematic parameters and the velocity obtained from them are also bolded. Unlike Table 7, the speed is determined by the acceleration increase on the transition curve. The highest speed achieved in this analysis on Arc II is 120 km/h, with a cant of 45 mm. Of course, this speed could be significantly increased by further increasing the cant on the curve. However, this would not make much sense, as the speed on the reverse curves will be determined by the speed on the arc with a smaller radius anyway. Therefore, in the case under consideration, trains could run at 115 km/h.

The presented procedure is universal and can be applied to other geometric situations involving the design of reverse curves. For a given layout of the main directions of a railway line, it allows for the selection of the initial radii of both circular curves, which can then be adjusted by introducing transition curves of varying lengths. The basic criterion for evaluating the resulting solution is the train speed, which can be changed by making appropriate corrections to the geometric layout.

10. Conclusions

On railway lines, due to competitive conditions with other transport systems, the most important issues currently seem to be those related to increasing train speeds; this is reflected in the dominance of high-speed rail. Traditional, existing railway lines (mostly built in the 19th century) are often overlooked in research, as they would need to be modified to meet contemporary requirements. This is particularly true for railway lines running through difficult terrain (e.g., mountainous terrain), which feature small horizontal arc radii and controversial geometric configurations such as compound curves and reverse curves. Improving the quality of these lines, leading to increased speeds, requires appropriate modernization activities.

This article addresses the design of reverse curves, a geometric system composed of two circular arcs (usually with different radii) oriented in opposite directions and directly connected. The goal is also to be able to recreate (i.e., model) an existing geometric system with reverse curves, so that subsequent corrections to the horizontal ordinates in the area where the circular arcs connect could be made. An effective design method needed to be developed that could be used not only to determine the coordinates of a new reverse curve but also to model the existing system (with a view to its subsequent modification).

The solution to the problem is obtained analytically. Individual elements of the geometric system are described using mathematical equations, and the design itself is performed in the appropriate local Cartesian coordinate system, based on the symmetrically arranged adjacent main directions of the route. However, in the case of reverse curves, there is a fundamental difference from most analytical design methods. In geometric systems, two adjacent main directions are most often identified and incorporated into further procedures (including the creation of a local coordinate system). In reverse curves, a third main direction appears, significantly complicating the matter, limiting the universality of the developed method. However, with regard to the local coordinate system, the adopted principle was retained: it is determined using two adjacent main directions. The origin of this system is located at their intersection, whose coordinates in the global coordinate system are known.

The radii of the reverse arcs must correspond to the existing system of main directions. The key issue here is to select the correct connection point for both arcs. Therefore, reverse arcs cannot be arbitrarily shaped; various conditions must be taken into account. Entering the determined arcs into the system of main directions allows for the creation of the initial geometric system of the reverse arcs. Then, transition curves are introduced for both existing circular arcs. This is possible if there is an appropriate distance between the points of intersection of the main directions (which cannot be too small). As a result, the arc radii are reduced. Their values are determined iteratively. The corresponding calculation procedure for the first arc takes place in the local coordinate system, while for the second arc in the auxiliary coordinate system, with the resulting solution subsequently transferred to the local coordinate system.

This article presents a set of formulas for creating a geometric system of reverse curves. These formulas were used in the calculation example. A graph of the horizontal curvature of the track axis and a method for determining train speed are shown. The train speed on the entire system is determined by the curve with the greater curvature. In the first stage, the achievable speed without the use of cant on the curve was determined. Next, the effects of applying cant were discussed. The presented procedure is universal and can be applied to other geometric situations involving the design of reverse curves.
